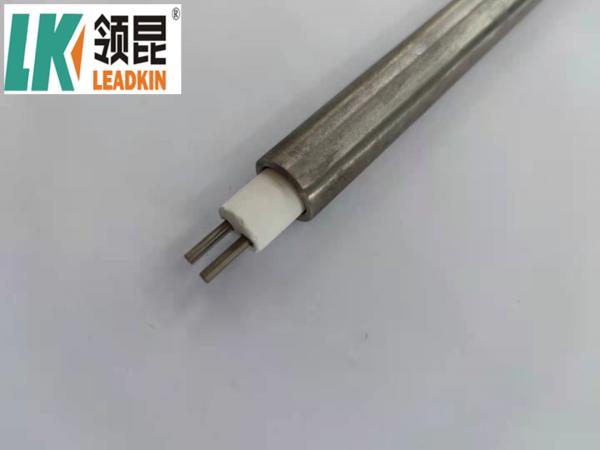

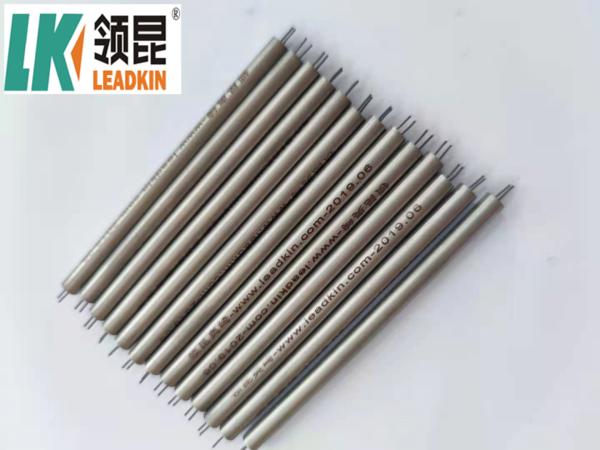

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM
RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM
RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM
RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM
Specifications
Brand Name :
LEADKIN
Model Number :
LK-K2
Certification :
ISO,
Place of Origin :
NINGBO CHINA
MOQ :
50M
Price :
USD 1.2-3.3/M
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
68*68*8cm Carton
Name :
High Technology 3/4 /6 Cores Mineral Insulated RTD Cable With SUS321(SS304) Or SUS316 Sheath Material
Outside Dia :
0.5-12.7mm
Application case :
connecting with thermocouple and instrument machine
Type :
single/double
Theory :
Temperature Test
Purity of MgO :
≥ 99.6%
Sample :
free
Temp. Range :
0-800℃
Description

Quick Details:

Name:High Technology 3/4 /6 Cores Mineral Insulated RTD Cable With SUS321(SS304) Or SUS316 Sheath Material

Insulator: 99.6% high purity MgO

Core number: 3/4/6

Sheath material: SS321, SS304

Dia(mm): 0.25mm to 12.7mm

Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100

Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃

Product Pictures

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

Company Information:

A. Our mi cable advantage

Environment-friendly: no pickling clean armored cable

Ultra-high density: nuclear grade 2500mg/cm3

Thick wall thick wire: 40% thicker than the standard of IEC and GB

Solution heat treatment:Improve the strength, hardness, wear resistance, corrosion resistance

B. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

1. Assembly

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

2. Drawing

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

3. Annealing

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

4. Polishing

5. Test

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

6. Mi cable in stock

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

C. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM

RTD Sensor Mineral Insulated Thermocouple Cable SS321 800C 12.7MM
