2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E
2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E
2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E
2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E
Specifications
Brand Name :
LEADKIN
Model Number :
LK-E
Certification :
ISO,CE
Place of Origin :
NINGBO CHINA
MOQ :
100M
Price :
USD 1.2-6.5/M
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
68*68*8cm Carton
Name :
Hot Selling Type E MI Thermocouple Cable With High Quality
Dia. :
0.5-12.7mm
Type :
E
Purity of Mgo :
more than 99.6%
Package :
Carton. Pallet
Jacket :
stainless steel
MOQ :
50M
Color :
white
Description

Quick Details:

Name:Hot Selling Type E MI Thermocouple Cable With High Quality

Conductor material: NiCr-Konstantan

Insulator: 99.6% high purity MgO

Dia(mm): 0.3mm to 12.7mm

Core: single and double

Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100

Accuracy for Sheath Wire

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃

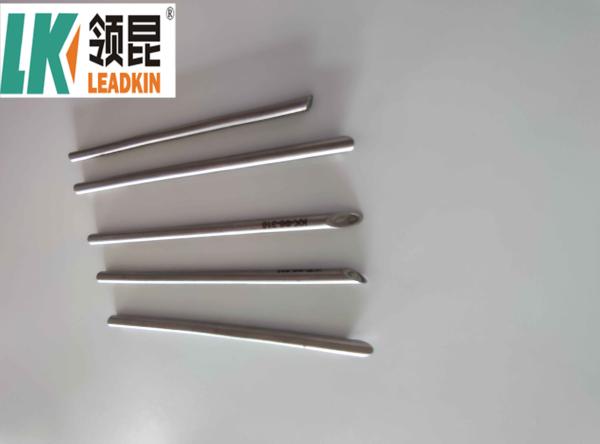

Product Pictures

2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E

2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E

Company Information:

A. Main Products

2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E

B. Invention Patent :Manufacturing method of sheath thermocouple cable

Usage:Raw material of sheath thermocouple

2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E

C. Warehouse

We have great amount mi cable in stock. We expecting your visiting.

2mm 2.5 Mm Single Core Mineral Insulated Thermocouple Cable SS304 Type E

FAQ:

1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
