Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher
Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher
Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher
Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher
Specifications
Brand Name :
ZTIC
Model Number :
Stone Crusher Machine
Certification :
ISO\CE
Place of Origin :
China
MOQ :
1set
Price :
negotiated
Packaging Details :
Standard packing or according to customer's requirement
Condition :
New
Name :
Jaw Crusher
Used :
Mining, smelting, construction, highway, railway
Compressive strength :
320Mpa
Type :
Stone Crusher
Warranty :
12 months
Port :
Qingdao China
Description

Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher

Working principle

Jaw crusher is the use of two jaw plate extrusion and bending of materials, coarse or medium crushing of various hardness of materials crushing machinery. The crushing mechanism is composed of a fixed jaw plate and a movable jaw plate. When the two jaw plates are near, the material is broken, and when the two jaw plates leave, the material block smaller than the discharge port is discharged from the bottom. Its breaking action is intermittent. This kind of crusher is widely used in mineral processing, building materials, silicate and ceramics industry because of its advantages of simple structure, reliable work and crushing hard materials.

Main use

Jaw crusher series products are widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and other industries. It has the characteristics of large crushing ratio, uniform product particle, reasonable structure, reliable work, convenient maintenance, economic operating costs, etc., crushing compressive strength of various materials does not exceed 320 mpa.

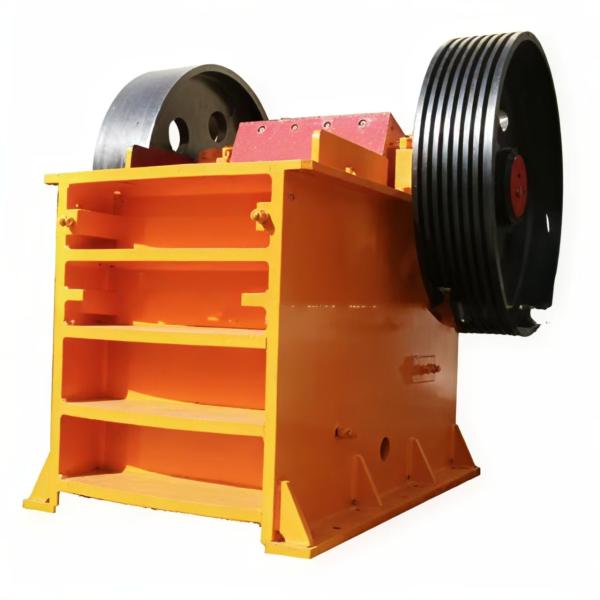

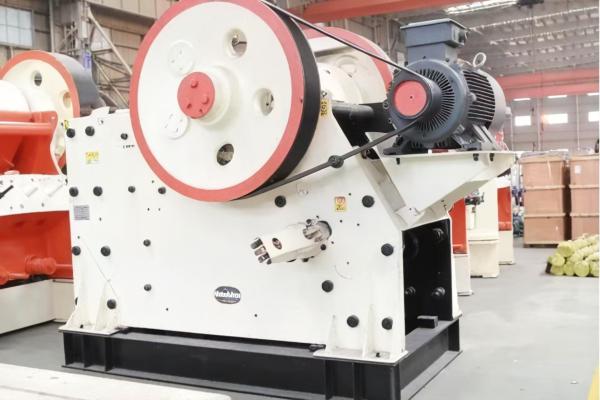

Product images

Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher

Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher

Product Parameters

feed inlet size Maximum feed size Discharge port adjustment range processing capacity Eccentric shaft speed power weight size
(mm) (mm) (mm) (t/h) (r/min) (kw) (t) (mm)
150×250 130 10-40 300 5.5 0.9 875×756×850
250×400 210 20-80 300 15 2.6 1450×1315×1296
400×600 350 40-100 16-65 275 30/37 6.5 1565×1732×1586
500×750 425 50-100 45-100 275 55 10.1 1890×1916×1870
600×900 500 65-160 90-180 250 55/57 15.5 2305×1840×2260
750×1060 630 80-140 110-320 250 110 28 2450×2472×2840
800×1060 650 100-200 140-350 250 110 28.5 2450×2556×2800
870×1060 670 200-260 140-380 250 110 30.5 2660×2556×2800
900×1200 750 100-200 180-360 250 132 50 3335×3182×3025
1000×1200 850 192-260 200-420 250 132 51 3435×3182×3025
1200×1300 1000 180-330 400-800 220 200 62 4538×2984×3959
1200×1500 1020 150-350 400-800 180 220 100.9 4200×3732×3025
1500×1800 1200 220-350 450-1000 180 280 122 5100×4700×4300
250×1000 210 25-60 16-52 330 30/37 6.5 1530×1992×1380
250×1200 210 25-60 20-60 330 37 7.7 1900×2192×1430
300×1300 250 25-90 20-90 330 55 11 1900×2192×1430
