Specifications
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Certification :
ISO/CE
Place of Origin :
Henan, China
MOQ :
1 Set/Sets
Price :
$5,000.00 - $100,000.00 / Set
Supply Ability :
1000 Set/Sets per Year
Packaging Details :
Simple packaging
Applicable Industries :
industy
Condition :
New
Motor Type :
AC Motor
Warranty :
12 month
Certificate :
ISO9001:2008/CE
Name :
Spiral Sand Washer
Product name :
Sand Washer
Port :
QingDao
Model :
XL-508
Spiral diameter :
508mm
Feed size :
<10mm
Water consumption :
6~60m3/h
Power :
7.5kw
Description

High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine

Product Description

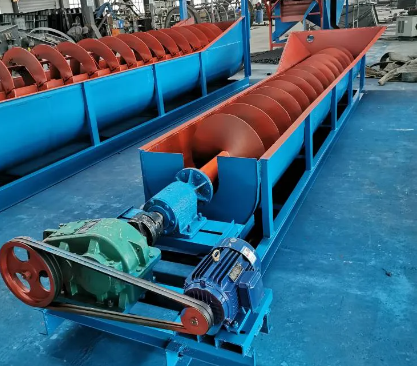

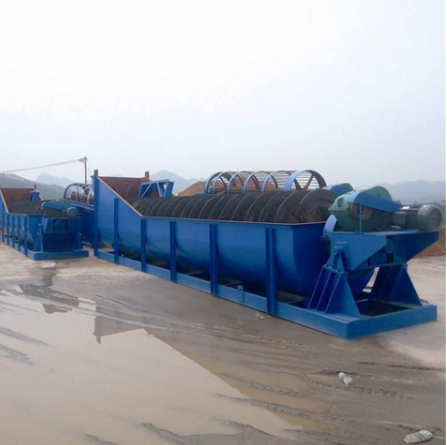

LSX Series Spiral Sand Washersis a kind of mechanical equipment that uses the rotation of spiral blades to achieve sand and gravel cleaning, desludging and classification. It is widely used in construction, sand and gravel plants, hydropower projects and other fields.

LSX Series Spiral Sand Washers can wash and sever the powder and dirt. Its novel seal structure and adjustable overflow barrier plus reliable driving system make an effective result of washing.

It is widely used for washing and sifting, severing and dirt remove in the fields of roads, hydropower and building industries.

Features
Efficient Cleaning: The rotating spiral blades effectively remove dirt and impurities from the sand and gravel surface.
Simple Structure: The equipment is compact and easy to operate and maintain.
Low Water Consumption: Some models are equipped with a wastewater recycling system to reduce water consumption.
High Capacity: Suitable for materials with a particle size of 0-30mm, with a production capacity of 5-240 tons/hour.
Low Failure Rate: The transmission is well sealed, reducing the risk of malfunctions.

Type Model Spiral diameter Feed size Water consumption Capacity Power Dimension
(mm) (mm) (m3/h) (t/h) (kw) (mm)
Light single spiral XL-508 508 <10 6~60 ~20 7.5 8082×2343×1615
XL-610 610 <10 6~63 ~50 11 8358×2474×1627
XL-762 762 <10 9~63 ~75 15 9178×2650×1808
XL-914 914 <10 90 ~100 15 9310×2830×2360
XL-1118 1118 <10 20~160 ~175

High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine

High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine

FAQ

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
