Specifications
Brand Name :
ZTIC
Model Number :
Ore Grinding Mill
Certification :
IOS
Place of Origin :
Henan, China
MOQ :
1 set/sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
3000 Set/Sets per Year
Condition :
New
Model :
Air swept coal mill
Color :
Customizable
Application :
Ore Grinding
Feed size :
≤25mm
Warranty :
12 month
Name :
Ore Grinding Mill
Rev :
22.4r/min
Production capacity :
8～9t/h
Load of grinding media :
18t
Weight :
36.7t
Speed ratio :
6.3
Description

Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency

Air-swept coal mill is an industrial equipment used for grinding and drying coal of different hardness. It is mainly used in cement plants, thermal power plants, building materials, metallurgy, chemical industry and other industries.

Technical Features:

  • Drum mills utilize transmission types such as edge flyer, center drive, and multi-point meshing edge drive. Drive types include asynchronous motor + reducer + pinion + gear and synchronous motor + air clutch + pinion + gear.
  • They generally utilize hydrostatic and hydrodynamic bearings at both ends, employing fully enclosed, self-aligning 1200 linear contact rocker-type bearings. Single or double-slider hydrostatic and hydrodynamic bearings, or full hydrostatic support, are also available.
  • They are equipped with a reliably sealed gear cover and an automatic glycerin spray lubrication system.
  • The drum, a key component of the mill, undergoes computer-based finite element analysis to ensure reliability.
  • Large and medium-sized mills are equipped with a slow-speed drive.
  • Large and medium-sized mills are equipped with high- and low-pressure lubrication stations.
  • The control and protection system utilizes a PLC.

Product parameters of ore grinding mill

SPEC(diameter×length) Rev
(r/min)		 Feed size(mm) Production capacity(t/h) Load of grinding media
(t)		 Main motor Main reducing gear Weight
(t)
Type Power (kw) Re(rpm) Type Speed ratio
φ2.2×4.4 22.4 ≤25 8～9t/h 18t YRKK4501-6 250 986 ZD60-11 6.3 36.7
φ2.2×5.8 22.4 ≤25 5.5～7 23.5～25 Y4005-8 280 750 ZD70-10 5.6 45
φ2.4×4.75 21.2 ≤25 14 22～24 YR4501-8 315 740 ZD60-8 4.5 49
φ2.4×4 2 20.2 ≤25 10～11 19 YRKK450-8 250 740 ZDY355 4.5 60
φ2.4×4.5 2 20.2 ≤25 10～12 20.8 YRKK500-8 280 740 JDX45 4.5 68
φ2.6×(5.25 2.25) 19.7 ≤25 9～10 28 YRKK500-8 400 740 ZDY450 4.5 87.4
φ2.8×(5 3) 18.7 ≤25 13～13.5 32 Y5001-8 500 740 JDX560 4.5 102
φ2.9×4.7 19.1 ≤25 14～19 34.4 YR560-8 500 743 MBY560 5.6 79
φ2.5×3.9 21 ≤25 14 21 JR138-8 280 740 ZD70-9 5 49.5
φ3×(6.5 2.5) 18.3 ≤25 17～19 43 YRKK5603-8 630 740 MBY560 5 120
φ3.2×4.8 16.7 ≤25 20 48 YR630-8 630 740 MBY560 5 118
φ3.2×(6.5 2) 16.9 ≤25 20 50 YRKK560-8 710 740 JDX630 5 137
φ3.5×8 17.2 ≤25 55～60 80 YRKK710-8 1000 740 MBY800 6.3 182
φ3.8×(7.75 3.5) 16.7 ≤25 85 85 YRKK710-8 1400 740 JDX90-WX-2A 5.6 215

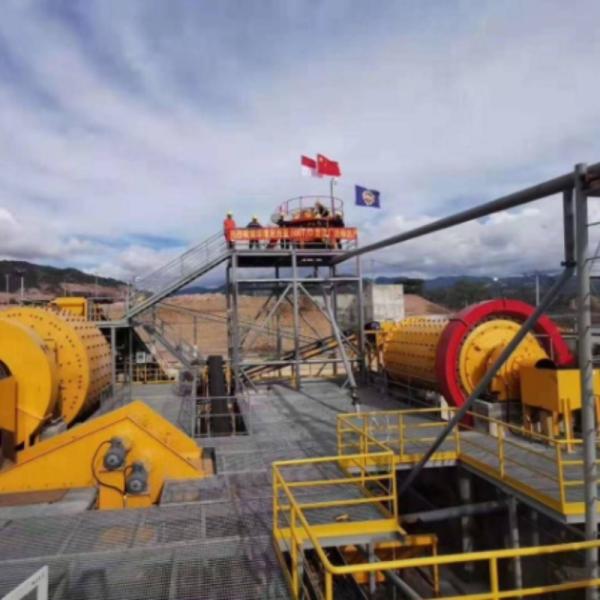

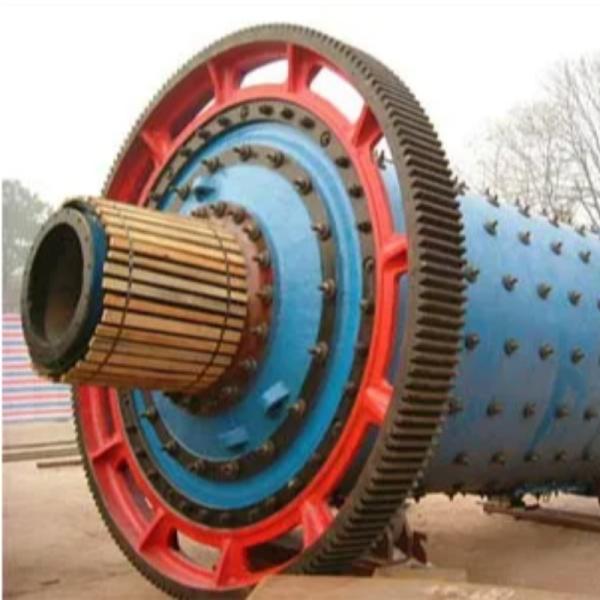

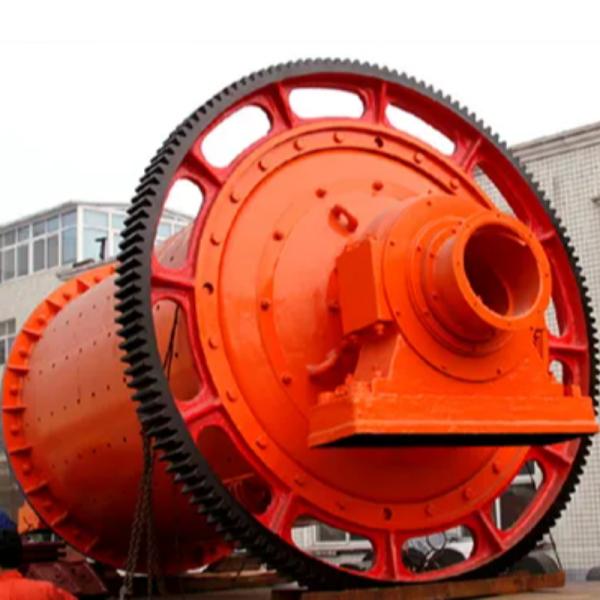

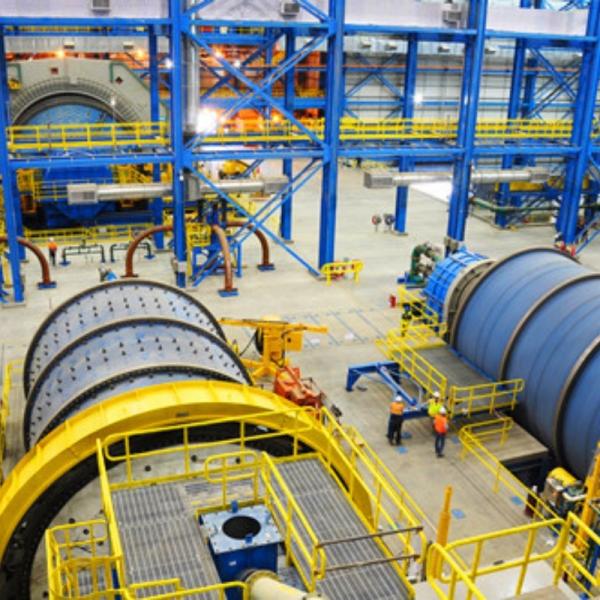

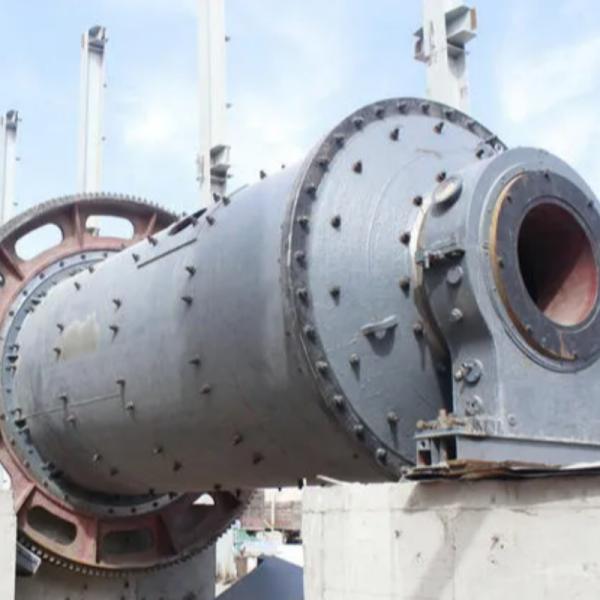

Product Display of ore grinding mill

Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency

Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
