Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Specifications
Brand Name :
ZTIC
Model Number :
Cement Rotary Kiln
Certification :
ISO/CE/rohs
Place of Origin :
China
MOQ :
1 set
Price :
500000-2000000usd
Payment Terms :
L/C, T/T
Supply Ability :
300 sets per month
Packaging Details :
regular packing
Type :
Cement Rotary Kiln
speed :
0.49~1.47 r/min
slope :
3.5%
capacity :
70~96t/d
power :
100KW
Weight :
327.5(t)
Port :
Qingdao
Effective volume :
142(m3)
Combustion temperature :
1350/1250
preheater :
Circular vertical preheater
Description

Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines

Lime rotary kiln is a kind of equipment used to calcine limestone. It is mainly used in steel, chemical, building materials and other industries to produce active lime and light-burned dolomite.

Advantages of Lime Rotary Kiln

  • High productivity makes it possible for our lime rotary kiln to be used in large active lime production line.
  • Open-type calcining rotary kiln has a simple structure, and can discharge sulfurous gases timely, which makes it quite suitable for steelmaking.
  • It is capable of calcining 10 to 50mm fine limestone directly.
  • Vertical preheater has been equipped at the end of the kiln to make full use of high-temperature gases generated during calcining. It can preheat limestone to the decomposition conditions. In this way, it helps not only to increase the output, but also to decrease the heat consumption.
  • The equipped vertical cooler at the head of the kiln can help cool the high-temperature limestone, as well as make it convenient to convey and store. Besides, it can effectively increase the temperature inside the kiln, thus reducing the fuel consumption.
  • Waste gases, discharged from the vertical preheater, have a temperature ranging from 280℃ to 350℃, and their dust content is about 20g/Nm3. So it is easy to deal with these gases according to the requirements of environmental protection.
  • With stable performance, our active lime calcining equipment is also suitable for mine exploitation

Technical Parameters Of Cement Rotary Kiln

Capacity(t/d) 150 200 250 300 350 400 500 600 750 800 1000
product Active lime
Light burned dolomite		 Active lime
Light burned dolomite		 Active lime
Light burned dolomite		 Active lime
Light burned dolomite		 Active lime Active lime Active lime Active lime Active lime Active lime Active lime
preheater Circular vertical preheater Circular vertical preheater Circular vertical preheater Circular vertical preheater Circular vertical preheater Circular vertical preheater Circular vertical preheater Circular vertical preheater Multilateral vertical preheater Multilateral vertical preheater Multilateral vertical preheater

Rotary

Kiln

 specifications(m) Φ2.5×40 Φ2.8×42 Φ3×46 Φ3.2×50 Φ3.5×54 Φ3.6×56 Φ3.8×58 Φ4×60/ Φ4.2×50 Φ4.3×58 Φ4.3×64 Φ4.8×68
Effective volume(m3) 142 190 235 292 390 430 505 575/548 670 738 1005
Combustion temperature 1350/1250 1350/1250 1350/1250 1350/1250 1350 1350 1350 1350 1350 1350 1350
cooler Circular vertical cooler Circular vertical cooler Circular vertical cooler Circular vertical cooler Circular vertical cooler square vertical cooler square vertical cooler square vertical cooler square vertical cooler square vertical cooler square vertical cooler
fuel gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal		 gas;
Pulverized coal
heat rate
(KJ/KgCaO)		 5300/5000 5300/5000 5300/5000 5300/5000 5225 5225 5100 5100 4810 4810 4810

Specification of Lime Rotary Kiln

NO Specification(m) Drawing no. The basic parameters The main reducer Main motor Weight (t)
speed r/min slope % capacity t/d model Speed ratio i model power KW speed r/min
1 Φ2.5×78 J919 0.49~1.47 3.5 70~96 PT800(3) 61.88 100 327.5
2 Φ3.2/3.4×60 J935 0.67~2.0 3 400 PT800(3) 55.09 100 340.31
3 Φ3.5×115 928 0.46~1.38 3.5 450 PT800(3) 61.88 75×2 776.81
4 Φ3.6/3.8×70 J939 0.4~2.0 3 600~660 BST-1790 46.146 160 480.4
5 Φ4.2×50 J940A 0.33~1.8 3 600~660 PT900(3) 56.43 160 521.3
6 Φ4.2×50 J944 0.2~1.8 3 600~660 PT900(3) 56.43 160 579
7 Φ3×46 J922A 0.45~1.8 3 200~220 ZSY450-63 63 SZN4-225-21 55 1000 201.8
8 Φ3.5×54 J969A 0.6~1.8 3.5 300~350 ZSY560-56 56 YP355S-8 132 750 340.7
9 Φ4.3×64 0.194~1.94 3.5 800 ZSY630-71 71 YZP355L-6 250 980 557.5
10 Φ4.9×69.5 0.179~1.79 3.5 1000 ZSY710-63 63 <td text="" javascript"="">var guige_param=''; $(function() { wsf.userLike(22661870, 10, 'browse', '','browse', "zticltd"); });

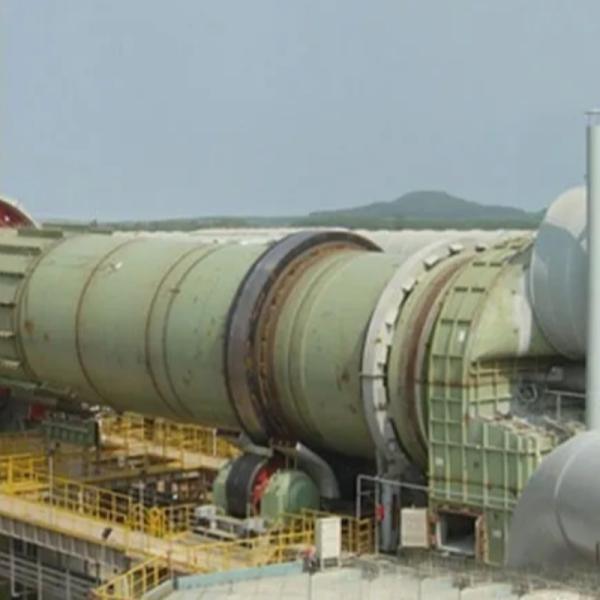

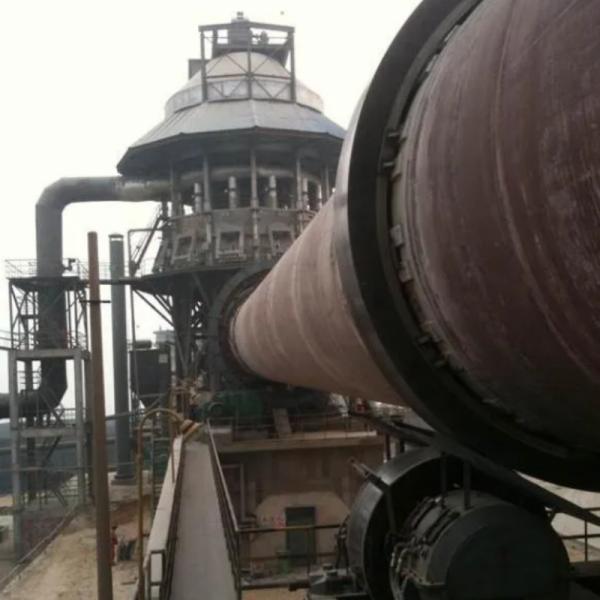

Product Display Of Cement Rotary Kiln

Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines

Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines

Cement Rotary Kiln

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
