Concrete Metallurgy Building Materials Hammer Crusher Crushing Equipment
Concrete Metallurgy Building Materials Hammer Crusher Crushing Equipment
Concrete Metallurgy Building Materials Hammer Crusher Crushing Equipment
Concrete Metallurgy Building Materials Hammer Crusher Crushing Equipment
Specifications
Brand Name :
ZTIC
Model Number :
Stone Crusher Machine
Certification :
ISO\CE
Place of Origin :
Henan China
MOQ :
1set
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
5000 Set/Sets per Year
Packaging Details :
Standard packing or according to customer's requirement
Name :
Hammer crusher
Condition :
New
Type :
PCΦ400×300
Application :
stones and bulk materials
Feed size :
≤200 mm
Production capacity :
5-10 m3/h
Color :
Custom
Warranty :
12 months
Discharge size :
≤25 mm
Port :
Qingdao China
Description

Concrete Metallurgy Building Materials Hammer Crusher Crushing Equipment

Product Introduction

Hammer crusher is widely used in concentrator, refractory factory, cement factory, glass factory and other industrial departments of fine grinding medium hardness materials. Can be used for dry, wet two forms of crushing, wet is the material seepage wet grinding, dry does not allow water seepage and dry grinding.

Working principle

Series ring hammer crusher is a kind of impact rotor crusher with ring hammer. After the material enters the crusher, it is first broken by the impact of the ring hammer with high speed rotation of the rotor. The crushed material obtains kinetic energy from the ring hammer at the same time, and rush to the crushing plate at high speed. By the second crushing, and then fall on the sieve plate, by the ring hammer shear, extrusion, grinding and material and material interaction between further crushing, and through the sieve hole discharge. Unbreakable sundries go into metal collectors and are removed periodically.

Product Parameters

Type Feed size Discharge size Production capacity Motor power(kw) Total weight(t) Dimensions
(mm) (mm) (m3/h) (L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800×1590×1775
PCΦ1200×1200 ≤350 ≤35 50-80 132-160 19.2 2060×1600×1890
PCΦ1400×1400 ≤350 ≤35 50-100 280 32 2365×1870×2220
PCΦ1600×1600 ≤350 ≤35 100-150 480 37.5 3050×2850×2800

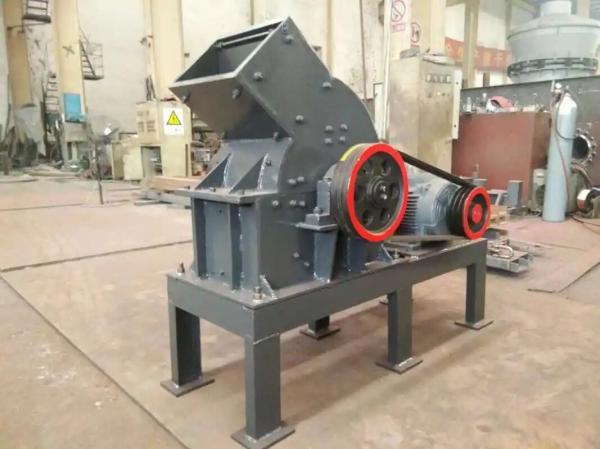

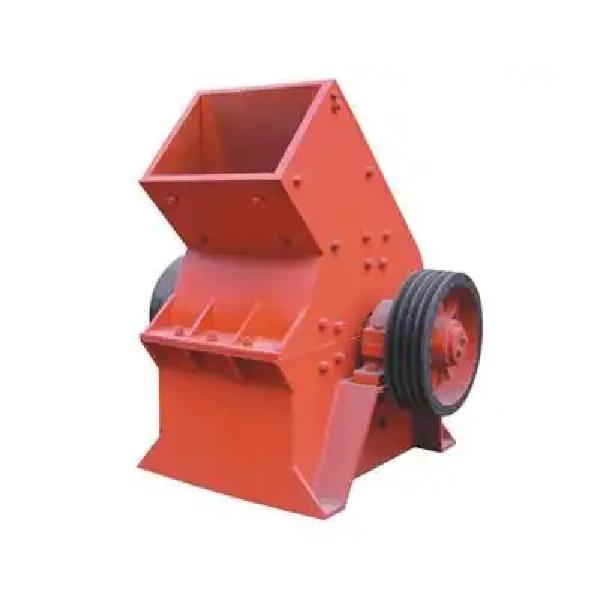

Product Display

Concrete Metallurgy Building Materials Hammer Crusher Crushing Equipment
Concrete Metallurgy Building Materials Hammer Crusher Crushing Equipment
