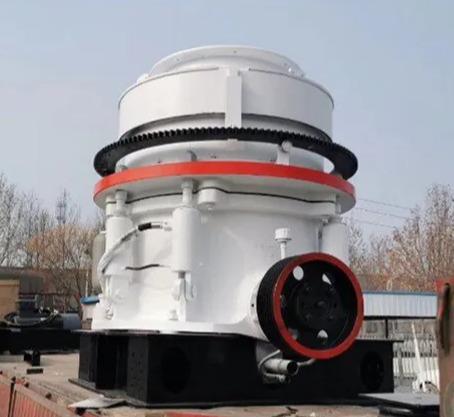

High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher
Specifications
Brand Name :
ZTIC
Model Number :
Stone Crusher Machine
Certification :
ISO/CE
Place of Origin :
Henan, China
MOQ :
1 Set/Sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 Set/Sets per Year
Name :
Multi-Cylinder Hydraulic Cone Crusher
Model :
XHP200
Capacity :
90-250
The host weight(t) :
11.14
Classification :
Stone Crusher Machine
Total weight(t) :
14
Warranty :
12 months
Power(kw) :
132-200 KW
Port :
Qingdao
Description

High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher

Product introduction

The XHP multi-cylinder hydraulic cone crusher is a highly efficient crushing device, widely used in stone production, artificial sand making, mineral processing and other operations. It is particularly suitable for large-scale stone plants and mining crushing operations.

Working principle

The transmission components are driven by the motor, causing the crushing cone to perform a swinging motion under the action of the eccentric shaft. The materials are crushed in the crushing chamber due to squeezing, grinding and other actions. The hydraulic safety system can provide protection and assist in troubleshooting when a fault occurs.

Product advantages of Stone Crusher Machine XHP Multi-Cylinder Hydraulic Cone Crusher

(1) XHP hydraulic cone crusher has large crushing ratio and high production efficiency

Combined with higher speed and stroke, the rated power and passing capacity of XHP crusher are greatly improved, and the crushing ratio and production efficiency are improved.

(2) Less consumption of wearing parts and low operating cost

Reasonable structure, reliable operation, low operation cost; The parts of the crusher are protected by wear-resistant blocks, which can reduce the maintenance cost to a lower limit, increase the service life by more than 30%, laminate crushing, and the finished products have good grain shape.

Through the special crushing chamber designed by the principle of intergranular lamentation and the matching speed, it replaces the traditional single particle crushing principle, realizes the selective crushing of materials, significantly increases the proportion of fine material and the content of cube, and greatly reduces the needle-sheet materials.

(3) Hydraulic protection and hydraulic cavity cleaning, high degree of automation, reduce downtime

Hydraulic control discharge port and overload protection improve the operation level of cone crusher, so that maintenance is simple, easy to operate, short downtime; XHP series cone crusher two-way iron release hydraulic cylinder can let the iron through the crushing chamber, the cone crusher in the case of iron and instantaneous congestion, hydraulic jacking, automatic discharge.

Product parameters of Stone Crusher Machine XHP Multi-Cylinder Hydraulic Cone Crusher


Model


Cavity

Standard

Short head type

power(kw)

capacity

The host weight(t)

Total weight(t)

Feeding Size(MM)

Discharging Size(MM)

Feeding Size(MM)

Discharging Size(MM)

XHP200

(BC)

132-200

90-250

11.14

14

(C)

185

19

76

10

(m)

125

17

54

6

(F)

95

13

23

6

(BF)

10

5

XHP300

(BC)

230

25

180-250

110-440

15.8

19.96

(C)

210

20

75

10

(m)

150

15

50

8

(F)

105

10

20

6

(BF)

20

6

XHP400

(BC)

295

30

280-355

140-630

23

28.72

(C)

250

25

90

10

(m)

195

20

50

8

(F)

110

14

40

6

(BF)

30

6

XHP500

(BC)

330

30

355-450

175-790

33.3

38

(C)

285

25

90

13

(m)

200

20

55

10

(F)

133

16

40

8

(BF)

35

6

XHP800

(BC)

353

32

550-630

260-1200

(C)

297

32

155

13

(m)

267

25

92

10

(F)

219

16

33

6

(BF)

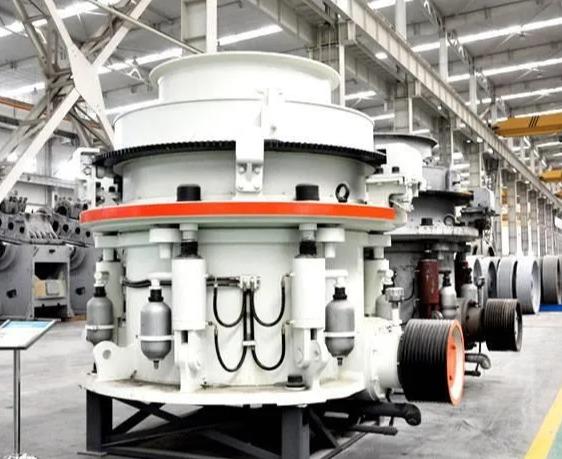

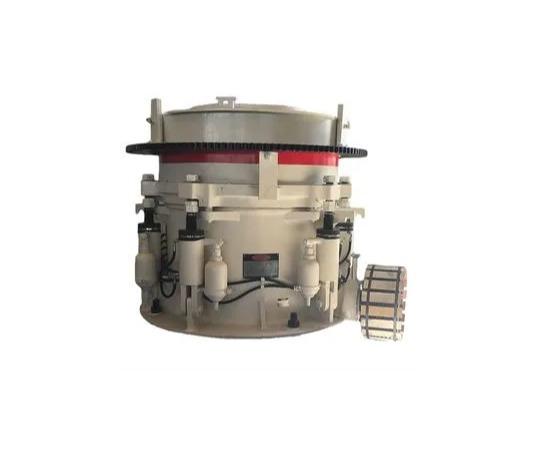

Product Display of Stone Crusher Machine

High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher

High Production Efficiency And Low Operating Cost XHP Multi-Cylinder Hydraulic Cone Crusher

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:

A: Accept payment type: T/T, L/C, Western union,Cash.30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: We can supply technical guide for machines running test and parts maintenance if end user needs.

Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:

A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:

A: Accept payment type: T/T, L/C, Western union,Cash.30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: We can supply technical guide for machines running test and parts maintenance if end user needs.

Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
