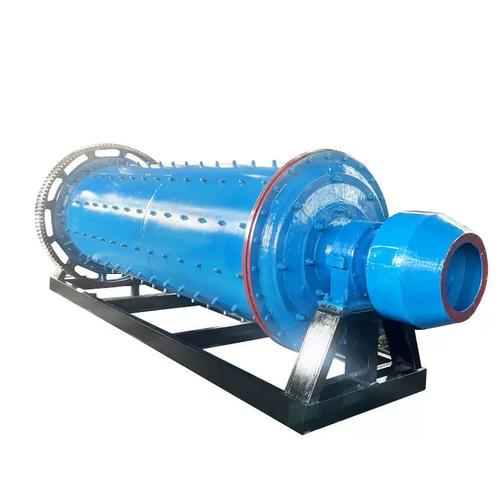

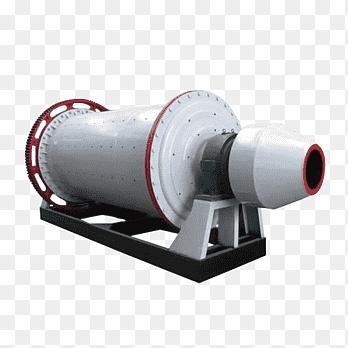

High-Efficiency Wear-Resistant Ball Mill Core Grinding Equipment for Mining Machinery
High-Efficiency Wear-Resistant Ball Mill Core Grinding Equipment for Mining Machinery
High-Efficiency Wear-Resistant Ball Mill Core Grinding Equipment for Mining Machinery
High-Efficiency Wear-Resistant Ball Mill Core Grinding Equipment for Mining Machinery
Specifications
Brand Name :
ZTIC
Model Number :
Ore Grinding Mill
Certification :
IOS,CE
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
3000 Set/Sets per Year
Type number 1 :
MQS Series Ball Mill
Type number 2 :
MQY Series Ball Mill
Type :
Ore Grinding Mill
Model :
Ф900×1800
Applicable Industries :
Mining industry
Condition :
New
Rotate Speed :
24.5r/min
Output Size :
0.074-0.4 mm
Warranty :
12 month
Description

High-Efficiency Wear-Resistant Ball Mill — Core Grinding Equipment for Mining Machinery

1. Ore Grinding Mill- Ball Mill Basic Introduction

The ball mill is the core grinding equipment in the mining machinery industry. Through the impact and grinding effects produced by the rotating grinding media (steel balls, steel segments, etc.) inside the cylinder, it crushes and grinds mined ores to a suitable particle size, laying a foundation for subsequent mineral processing and useful mineral extraction. As a key piece of equipment in the mineral processing production line, the performance of the ball mill directly determines the ore grinding efficiency, finished product particle size and overall production capacity. It is widely suitable for the processing of various metallic and non-metallic ores, and is an essential equipment for mining enterprises to realize large-scale production.

2. Ore Grinding Mill- Ball Mill Types and Applicable Ores

According to the structural form, grinding process and application scenarios, our main three types of core ball mills are precisely adapted to different ore characteristics:

Grid Type Ball Mill: Suitable for metallic sulfide ores such as iron ore, copper ore, lead-zinc ore. Its forced discharge feature can quickly separate coarse-grained grinding media, making it ideal for ores requiring high grinding efficiency and relatively coarse finished particle size, especially for coarse grinding operations.

Overflow Type Ball Mill: Suitable for non-metallic ores such as limestone, talc, graphite, as well as precious metal ores like gold ore and silver ore that require fine grinding. Without a forced discharge structure, it can achieve fine grinding of ores to meet the needs of high-purity mineral extraction.

Horizontal Ball Mill: Suitable for high-hardness or high-density ores such as manganese ore, chromium ore, barite. It features a stable cylinder structure and large filling capacity of grinding media, enabling efficient grinding of high-hardness and high-value-added ores.

3. Ore Grinding Mill- Ball Mill Product parameters

SPEC Cylinder rotation speed Ball loading capacity Feed particle size Discharge particle size Output Motor power Total weight
(r/min) (t) (mm) (mm) (t/h) (kw) (t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 Determined by process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 Determined by process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 Determined by process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525

Ore Grinding Mill- Ball Mill

High-Efficiency Wear-Resistant Ball Mill Core Grinding Equipment for Mining Machinery

Ore Grinding Mill- Ball Mill

High-Efficiency Wear-Resistant Ball Mill Core Grinding Equipment for Mining Machinery
