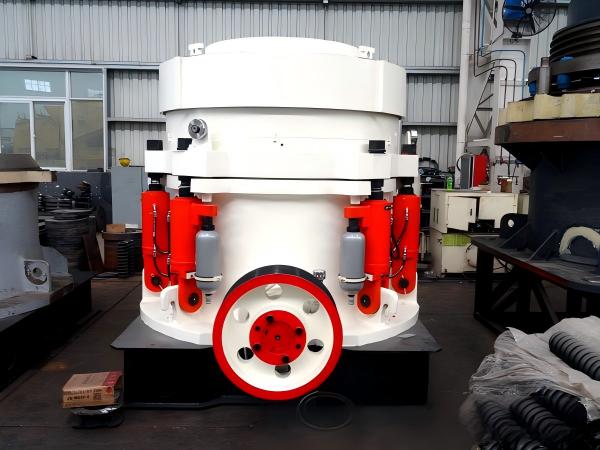

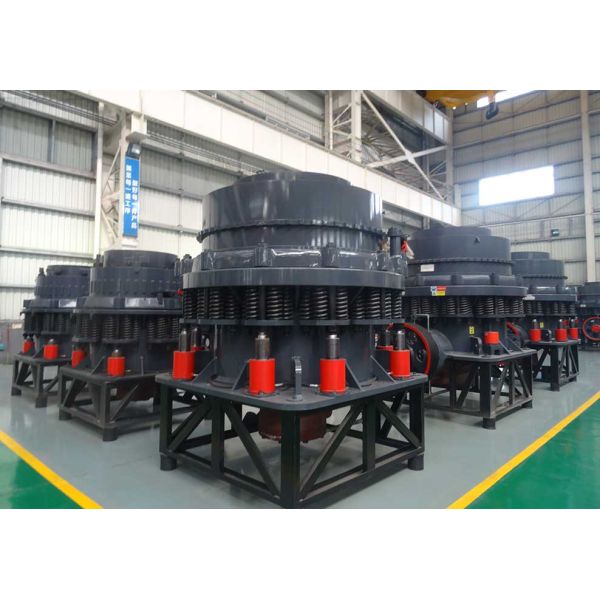

Stone Crusher Machine Mining Cone Crusher with High Efficiency And Wear-Resistant
Stone Crusher Machine Mining Cone Crusher with High Efficiency And Wear-Resistant
Stone Crusher Machine Mining Cone Crusher with High Efficiency And Wear-Resistant
Stone Crusher Machine Mining Cone Crusher with High Efficiency And Wear-Resistant
Specifications
Brand Name :
ZTIC
Model Number :
Stone Crusher Machine
Certification :
IOS/CE
Place of Origin :
Henna, China
MOQ :
1 set/sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 Set/Sets per Year
Product :
Cone Crusher
Usage :
In metallurgy, chemical industry, building materials, coal, mining and other fields
Model :
PSG Simmons Crusher
Feed size :
≤1000mm
Capacity :
15-850 T/H
Materials :
Granite, limestone
Classification :
Stone Crusher Machine
Warranty :
12 months
Description

Stone Crusher Machine Mining Cone Crusher With High Efficiency And Wear-Resistant

1. Stone Crusher Machine Mining Cone Crusher Introduction

Cone crusher is the core secondary and fine crushing equipment in the mining and aggregate processing industries. Based on the laminated crushing principle, it realizes extrusion and grinding of ores through the relative movement between the moving cone and the fixed cone. It features high crushing efficiency and excellent final particle shape. Compact in structure and large in crushing ratio, it is specially designed for high-hardness and high-abrasion materials such as granite, basalt and iron ore. It is the key equipment for large-scale mining production and aggregate upgrading, suitable for open-pit mines, underground mines and quarries.

2. Stone Crusher Machine Mining Cone Crusher Categories

We provide a full range of cone crushers to meet different capacity and particle size requirements:

Single-Cylinder Cone Crusher: Simple structure, easy maintenance, ideal for medium and fine crushing in small and medium-sized mines.

Multi-Cylinder Cone Crusher: Strong crushing force, stable performance, suitable for large-scale mines and aggregate plants.

Spring Cone Crusher: Reliable overload protection, cost-effective, suitable for medium and low hardness materials.

3. Stone Crusher Machine Mining Cone Crusher Application Scope

Our cone crushers are widely used in mining, building materials and infrastructure fields:

Mining Industry: Secondary and fine crushing of iron ore, copper ore, gold ore, bauxite, limestone, gypsum, coal, etc.

Aggregate & Construction: Crushing of granite, basalt, limestone, quartzite for high-quality road, bridge and construction aggregates.

Infrastructure Projects: Suitable for stone processing sites of railways, highways, water conservancy and urban construction.

4.Stone Crusher Machine Mining Cone Crusher Technical Parameters

Model Feed opening Max feed Discharge size Capacity Motor Weight
(mm) size(mm) (mm) (T/H) (KW) (T)
PYB-600 75 65 12-15 40 30 5
PYD-600 40 35 3-13 12-23 30 5.1
PYB-900 135 115 15-50 50-90 55 11.2
PYZ-900 70 60 5-20 20-65 55 11.2
PYD-900 50 40 3-13 15-50 55 11.3
PYB-1200 170 145 20-50 110-168 110 24.7
PYZ-1200 115 100 8-25 42-135 110 25
PYD-1200 60 50 3-15 18-105 110 25.3
PYB-1750 250 215 25-50 280-480 160 50.3
PYZ-1750 215 185 10-30 115-320 160 50.3
PYD-1750 100 85 5-15 75-230 160 50.2
PYB-2200 350 300 30-60 590-1000 280/260 80
PYZ-2200 275 230 10-30 200-580 280/260 80
PYD-2200 130 100 5-16 120-340 280/260 81.4
