Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge
Specifications
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Certification :
ISO, CE
Place of Origin :
China
MOQ :
>=1 Sets
Price :
negotiable
Supply Ability :
100 Set/Sets per Month
Packaging Details :
Standard packaging or according to customer requirements
Model :
TWZ series horizontal vibrating centrifuge
Condition :
New
Feed size :
0~25mm
Capacity :
50~100t/h
Product water :
5~9%
sceen bowl big end diameter :
850mm
Seam screen size :
0.25,0.3,0.35,0.5mm
Type :
Ore Dressing Equipment
Warranty :
1 YEAR
Port :
Qingdao
Description

Good Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge

TWZ series horizontal vibrating centrifuge is a kind of equipment used for material dehydration, mainly used for dehydration of lump clean coal, medium coal and similar materials. The designed feed size is 0.5mm~50mm. It has the advantages of small initial investment, small footprint, low energy consumption, good dehydration effect, low coal crushing rate, long screen basket life, easy operation and maintenance, and low noise. It is widely used in coal, chemical, food and other industries.

Working Principle

Material enters the bottom of the screen basket through a feed pipe and is held against the screen surface by centrifugal force. Vibration causes the material to move evenly toward the larger end of the screen basket. The dehydrated material is then discharged from the periphery of the screen basket, while water is ejected through the screen slits and flows along the casing wall to the drain outlet.

Technical performance of Ore Dressing Equipment

Parameters Unit Model
TWZ850 TWZ10A TWZ1150 TWZ1300 TWZ1400 TWZ1500
Feed size mm ≤ 0~25 0.5~50 0~50 ≤50 0.5~50
Capacity t/h 30~50 50~100 100~150 180~250 200~300 250~350
Product water % 5~9
sceen bowl big end diameter mm 850 1000 1150 1300 1400 1500
Seam screen size mm 0.25,0.3,0.35,0.5
Screen vibration frequency Hz 25 25 25 25 25 25
double-amplitude mm 4~6 4~6 4~6 4~6 4~6 4~6
Main motor power Kw 15 22 37.5 45 55 75
Vibration motor power Kw 4 5.5 7.5 7.5 11 15
Oil pump motor power Kw 0.37 0.37 0.55 0.55 0.55 0.55
Dimension L mm 2060 2150 2800 2700 3100 3170
W mm 1510 1875 1930 2260 3090 2975
H mm 1652 1765 1930 2245 2295 2400
Weight Kg 2500 2620 5527 6500 9200 10000

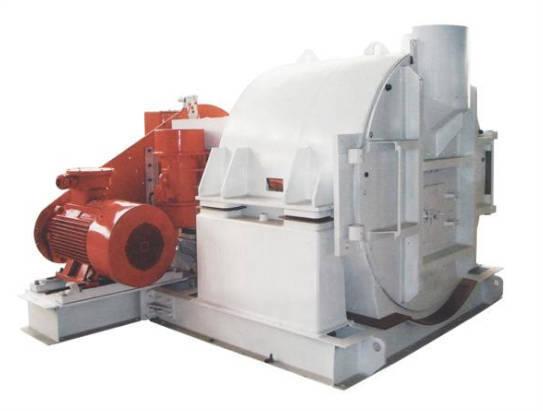

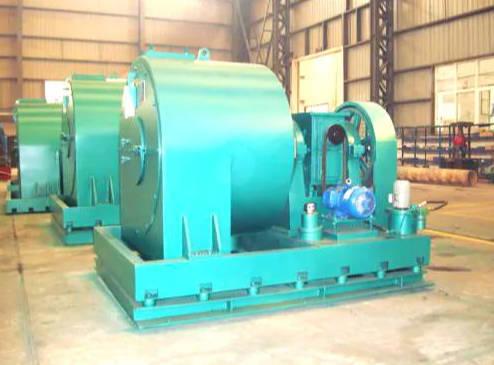

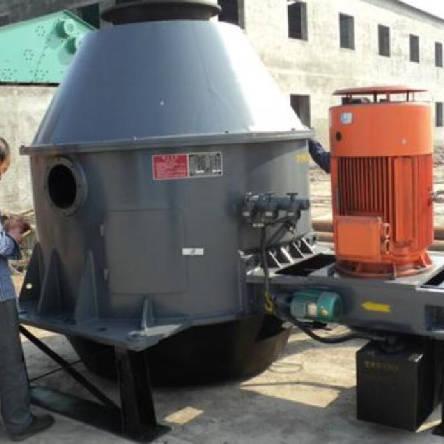

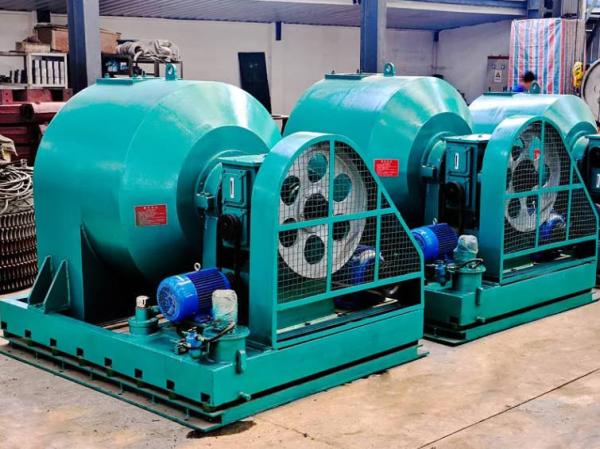

Product Display of Ore Dressing Equipment
Good Dehydration Effect TWZ Series Horizontal Vibrating CentrifugeGood Dehydration Effect TWZ Series Horizontal Vibrating Centrifuge

Ore Dressing Equipment

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
