High Flow Easy To Operate Multi Bag Filters
High Flow Easy To Operate Multi Bag Filters
High Flow Easy To Operate Multi Bag Filters
High Flow Easy To Operate Multi Bag Filters
High Flow Easy To Operate Multi Bag Filters
High Flow Easy To Operate Multi Bag Filters
High Flow Easy To Operate Multi Bag Filters
High Flow Easy To Operate Multi Bag Filters
Specifications
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Certification :
ISO\CE
Place of Origin :
Henan China
MOQ :
1set
Price :
negotiated
Packaging Details :
Standard packing or according to customer's requirement
Condition :
New
Warranty :
12 months
Filtering Area :
1㎡
Max Flow :
70t/h
Port :
Qingdao China
Classification :
Ore Dressing Equipment
Caliber :
DN50mm
Description

High Flow Easy To Operate Multi Bag Filters

Multi-bag filter is a pipeline treatment device designed to separate suspended particulate impurities from liquids and gases.

Applications

Chemical, pharmaceutical, food, environmental protection, and other industries.

Features

Multiple filter bags arranged in parallel, achieving uniform fluid distribution through top-entry liquid feed. Filtration precision ranges from 0.5 to 1200μm, with a maximum single-unit processing capacity of 1080m³/h.

Product Parameters of Ore Dressing Equipment

Filter cloth features

Model Bag QTY Filtering Area(㎡) Max Flow(t/h) Caliber(mm) Working pressure(MPa) Cylinder diameter(Ф) Total Height(mm) Housing Height(mm) Center Distance of Foundation Bolts(mm)
DL-2P2S 2 1 70 DN50 0.5 456 1572 1144 616
DL-3P2S 3 1.5 105 DN80 508 1592 1190 668
DL-4P2S 4 2 140 DN100 558 1632 1244 718
DL-5P2S 5 2.5 175 DN150 608 1788 1254 768
DL-6P2S 6 3 210 DN150 658 1854 1300 818
DL-7P2S 7 3.5 245 DN150 710 1875 1340 870
DL-8P2S 8 4 280 DN150 760 1922 1404 920
DL-10P2S 10 5 350 DN200 910 2004 1430 1070
DL-12P2S 12 6 420 DN200 962 2064 1460 1132
DL-14P2S 14 7 490 DN200 1012 2124 1490 1212
DL-16P2S 16 8 560 DN250 1112 2146 1512 1312
DL-18P2S 18 9 630 DN250 1162 2225 1595 1360
DL-20P2S 20 10 700 DN250 1212 2280 1640 1412
DL-22P2S 22 11 770 DN250 1366 2320 1694 1516
DL-24P2S 24 12 840 DN300 1416 2358 1748 1616

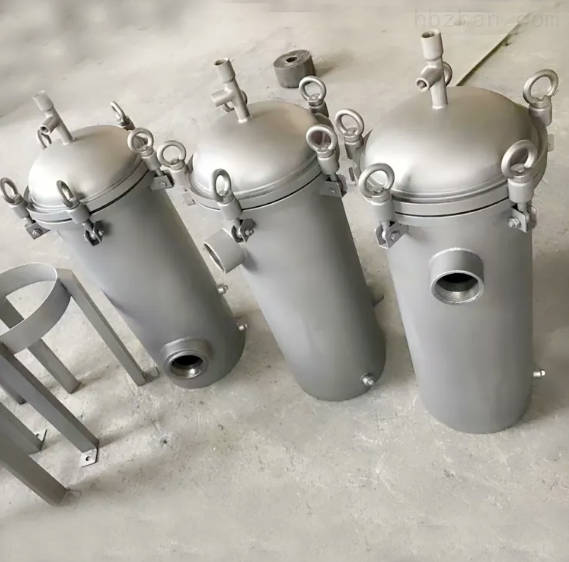

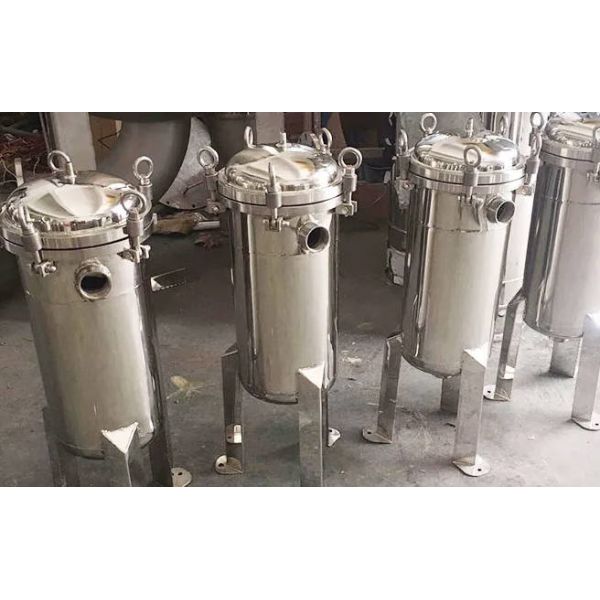

Product Display of Ore Dressing Equipment

High Flow Easy To Operate Multi Bag Filters

High Flow Easy To Operate Multi Bag Filters

Ore Dressing Equipment
