Specifications
Brand Name :
ZTIC
Model Number :
Metallurgy Machine
Certification :
ISO\CE
Place of Origin :
Henan China
MOQ :
≥1set
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Year
Packaging Details :
Standard packing or according to customer's requirement
Model :
Ball Press Machine
Mainly used :
coal, mining, metallurgy, refractory
Condition :
New
Type :
Metallurgy machine
Maximum linear specific voltage :
8 t
Power :
55KW
Output :
2.2-3.5 t
Weight :
13 T
Warranty :
12 months
Port :
Qingdao China
Description

High-Pressure Molding Machine With Flexible Production Process

Briquette machine is a key suppressing machine in the pellet technology complete equipment developed and designed on the principle of extrusion molding for powder material. Our company received the national patent of invention certificate of large Briquette machine with patent No. ZL2007.1.0163951.4. Recently, the first GY2412 Briquette machine has been successfully manufactured in our factory with diameter of press roll 2.4 meter and width 1.2 meter. The capacity of the Briquette machine can reach 50-100t/h according to different material. Our Briquette machine is the largest high-pressure ball press machine of highest pressure and largest capacity featuring in advanced product design theory, rational structure, affordable forcing feeding, adjustable pressure, feeding intellectualization, ball production automation with inlaid rolling skin easy to exchange and maintain.

Product advantage:
1. First high-pressure ball press successfully developed in 1988
2. Full product range with roller diameter of 520-1200mm
3. Forced pre-press designed output with high beta ratio of 11T/cm
4. 6000h ultrawear-resistant material roller material made of special bearing steel
5. Completely-sealed gearbox is used for the retarder with low noise and without oil leakage
6. Ball forming lab to provide professional ball forming tes

Product Parameter of Metallurgy Machine

model Roller diameter (mm) Roller width (mm) Total pressure (t) Maximum linear specific voltage (t) Power(kw) Output (t) weight(t) boundary dimension(mm)
L W H
GY520-150 520 196 150 8 55 2.2-3.5 13 4087 2882 2709
GY650-180 650 220 180 8 90 4-6.5 19.1 4576 3365 3003
GY650-220 650 200 220 11 110 4-6.5 19.2 4576 3365 3003
GY750-230 750 280 230 8 160 6-8.5 30.2 5792 2963 3174
GY750-270 750 328 270 8 185 7-10 35.2 5792 2963 3174
GY750-300 750 280 300 11 185 6-8.5 34 5792 2963 3174
GY750-350 750 328 350 11 220 7-10 38.5 5792 2963 3174
GY1000-350 1000 440 350 8 250 10-15 50.8 6123 4280 3603
GY1000-500 1000 440 500 11 350 10-15 65 6523 4480 4209
GY1200-800 1200 900 720 8 280Kw×2 40 110 8830 5111 4200

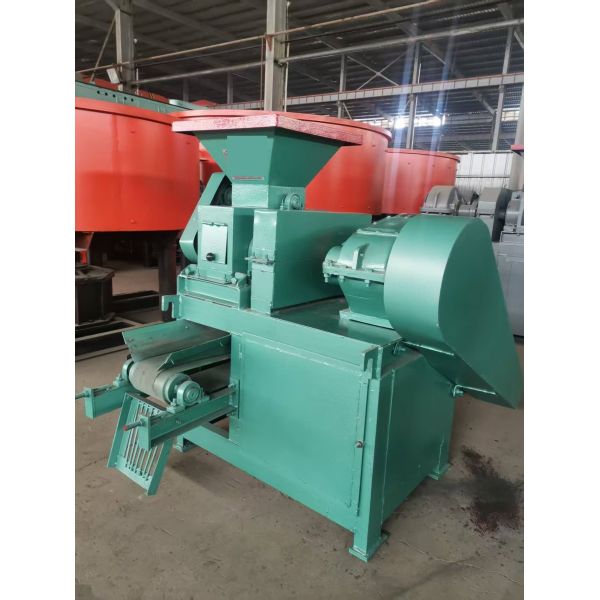

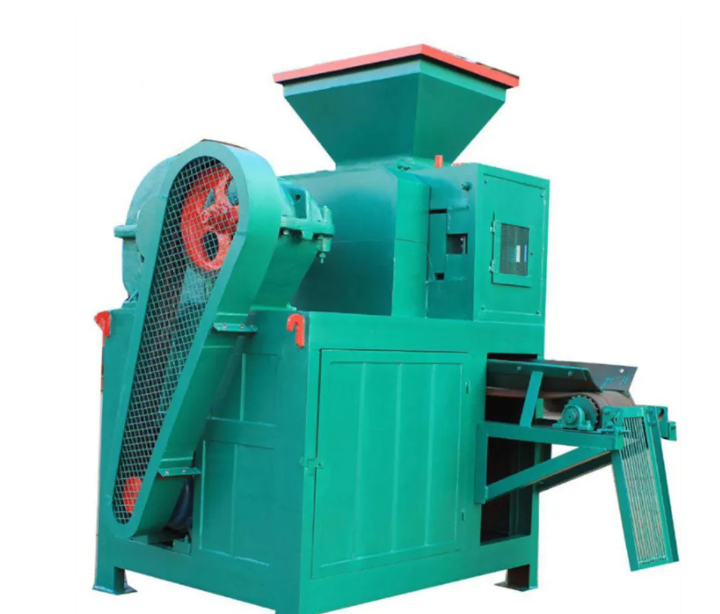

Product Display of Metallurgy Machine

High-Pressure Molding Machine With Flexible Production ProcessHigh-Pressure Molding Machine With Flexible Production Process

Metallurgy Machine

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
