automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel
Specifications
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Certification :
ISO\CE
Place of Origin :
Henan China
MOQ :
1set
Price :
negotiated
Packaging Details :
Standard packing or according to customer's requirement
Condition :
New
Warranty :
12 months
Belt Width :
500mm
Capacity :
3-5.2m³hr
Port :
Qingdao China
Classification :
Ore Dressing Equipment
Cake Moisture :
65-84%
Description

Automation Drum Concentrated Belt Fiter Press(Stainless Steel Or Carbon Steel)

The belt drum thickener and dewatering machine is a continuous treatment device that combines sludge thickening and dewatering functions. The main structure can be constructed of stainless steel or carbon steel.

Application and Selection

Applicable Industries: Municipal sewage treatment plants, sand washing wastewater from sand making plants, papermaking, printing and dyeing, chemical industry, mining, and other industries that treat high-suspended-matter wastewater.

Product Parameters of Ore Dressing Equipment

Technical Data Of Drum concentrated belt fiter press(Stainless steel or carbon steel)

Model Belt Width(mm) Capacity(m3/hr)
Feed concentration
(Solid content 0.5-1%)		 Dry Solid(kg/hr) Cake
Moisture(%)		 Power (kw)
S.STray
Reference
Dimensions(mm)		 Foundation
Dimensions
L2×W1(mm)		 Weight(kgs)
Power of Driving Motor Mixing Power Drum concentrator motor power
W H
DNY500 500 3-5.2 45-78 65-84 0.75 0.37 00.37 with 2600 1050 2175 2100*836 800
DNY750 750 4.5-7.5 68-113 65-84 0.75 0.37 0.37 with 2600 1300 2175 2100*1086 1000
DNY1000 1000 6-10.5 98-158 65-84 0.75 0.37 0.37 with 2600 1550 2270 2100*1336 1200
DNY1250 1250 7-12.5 113-188 65-84 0.7 0.37 0.37 with 2600 1800 2270 2100*1586 1400
DNY1500 1500 9.5-15 143-240 65-84 0.75 0.37 0.37 with 2600 2050 2270 2100*1836 1800
DNY1500L 1500 12-20.5 180-308 65-84 0.75 0.55 0.55 with 2600 2300 2510 2455*1866 2200
DNY1750 1750 15-24.5 225-368 65-84 1.1 0.55 0.55 without 3190 2300 2510 2455*2096 2400
DNY2000 2000 18-30 270-450 65-84 1.5 0.75 0.75 without 3190 2550 2510 2455*2346 2800
DNY2500 2500 25-35 300-550 65-84 2.2 0.55*2 0.55*2 without 4300 3300 2850 3550*2846 3200
DNY3000 3000 30-45 360-675 65-84 3 0.75*2 0.75*2 without 4300 3550 2850 3550*3346 3600
Remark Decided by the Sludge type Can be
customized		 We will supply with drawings

Product Display of Ore Dressing Equipment

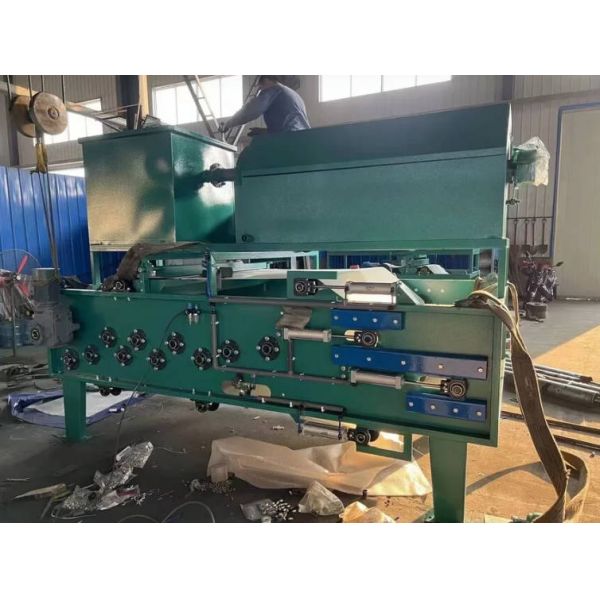

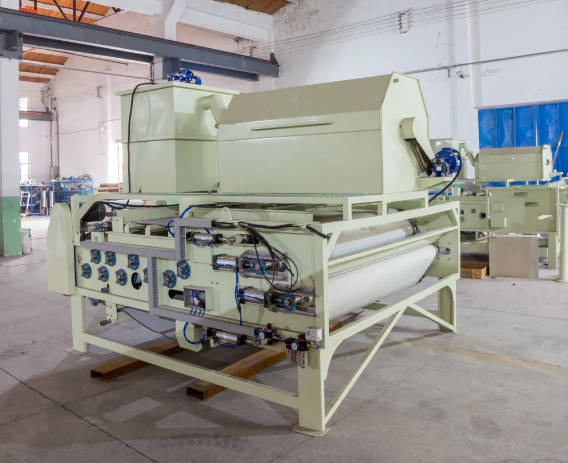

automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel

automation Drum Concentrated Belt Fiter Press Stainless Steel Or Carbon Steel

Ore Dressing Equipment
