Industrial Grade Small Fixed Oil Cylinder Filter Press With High Precision
Industrial Grade Small Fixed Oil Cylinder Filter Press With High Precision
Industrial Grade Small Fixed Oil Cylinder Filter Press With High Precision
Industrial Grade Small Fixed Oil Cylinder Filter Press With High Precision
Specifications
Brand Name :
ZTIC
Model Number :
Cement Plant Equipments
Certification :
ISO\CE
Place of Origin :
Henan China
MOQ :
1set
Price :
negotiated
Packaging Details :
Standard packing or according to customer's requirement
Number of Chambers :
10-30
Plate Specifications(mm) :
1100*1100
Area(m²) :
20-60
Chamber Volume (m³) :
0.35-1.05
Installed Power (KM) :
16.5
Net Weight(t) :
12-19
Warranty :
12 months
Condition :
New
Port :
Qingdao China
Description

Industrial Grade Small Fixed Oil Cylinder Filter Press With High Precision

Product Introduction

Widely used in solid-liquid separation operations for materials such as nickel concentrate, zinc oxide leachate, starch, sludge, etc. Its core structure includes a horizontally stacked filter plate group, a hydraulic system, and an automatic circulating filter cloth. It adopts high-pressure extrusion and airflow dehydration technology, and the moisture content of the filter cake can be as low as 10% -15%

The short program control mode has four processes: filtration, diaphragm compression, filter cake drying, filter cake discharge, and filter cloth washing.

After the filter plate frame is closed, the slurry enters each filter chamber through the slurry pipe simultaneously The filtrate enters the filtrate chamber through the filter cloth, then enters the filtrate hose, and finally reaches the filtrate tube.

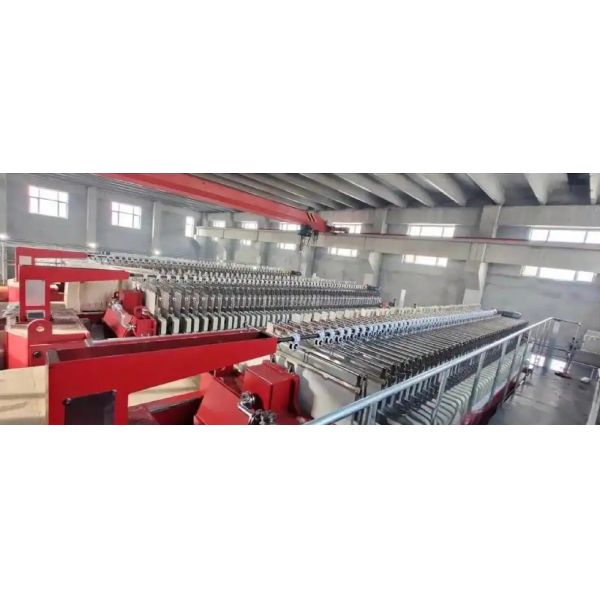

Product Display

Industrial Grade Small Fixed Oil Cylinder Filter Press With High Precision

Industrial Grade Small Fixed Oil Cylinder Filter Press With High Precision

Product Parameters

Models Number of
Chambers		 Plate Specifications(mm) Area(m) Chamber Volume (m) Installed Power (KM) Dimensions(mm) Net Weight(t)
L W H
XZA-1110 10 1100*1100 20 0.35 16.5 5933 2000 2620 12
XZA-1116 16 1100*1100 32 0.56 16.5 6797 2000 2620 16
XZA-1120 20 1100*1100 40 0.7 16.5 7373 2000 2620 17
XZA-1126 26 1100*1100 52 0.901 16.5 8237 2000 2620 18
XZA-1130 30 1100*1100 60 1.05 16.5 8813 2000 2620 19

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
