Specifications
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Certification :
ISO\CE
Place of Origin :
Henan China
MOQ :
1set
Price :
negotiated
Packaging Details :
Standard packing or according to customer's requirement
Condition :
New
Warranty :
12 months
Area :
40(㎡)
Plate size :
φ800mm
Port :
Qingdao China
Classification :
Ore Dressing Equipment
Cake thickness :
25mm
Description

Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press

The circular plate filter press is a highly efficient solid-liquid separation device. Its core principle is to utilize the pressure differential across the filter cloth to trap solid particles in the liquid feed within the filter chamber, forming a filter cake, while the liquid passes through the cloth and is discharged. The equipment primarily consists of a frame, filter plates, a compression system, and an electrical control system.

It’s mainly used for solid-liquid separation in stone waste water, ceramics, kaolin, building materials industries. High filter pressure, low water content rate of filter cakes.

Product Advantages:
Efficient Dehydration: High pressure extrusion significantly reduces the moisture content of the filter cake, making it suitable for high-viscosity materials.

Stable Operation: The circular structure distributes force evenly, reducing the risk of deformation and improving sealing.

High Level of Automation: Supports fully automated plate pulling, liquid collection, and washing processes, reducing manual intervention.

High Corrosion Resistance: Optional filter plate materials are available to adapt to various acid and alkaline environments.

Product Parameters of Ore Dressing Equipment

Model Area(m²) Plate size(mm) Cake thickness(mm) Filter
chamber volume(L)		 Plate Qty(pcs) Filtration pressure(Mpa) Weight(Kg) L*W*H(mm) Foundation Sizel(mm)
L B D
XMY40/φ800-25 40 φ800 25 499 40 1.0-3.0 4554 4300×1100×1060 3500 530 1050
XMY50/φ800-25 50 621 50 5150 4820×1100×1060 4020
XMY60/φ800-25 60 753 60 9710 5340×1100×1060 4540
XMY70/Φ800-25 70 875 70 5760 5860×1100×1060 5580
XMY80/φ800-25 80 1000 80 6860 6200×1100×1060 5660
XMY80/φ1000-30 80 φ1000 30 1210 59 1.0-3.0 6652 7254×1311×1399 5857 680 1400

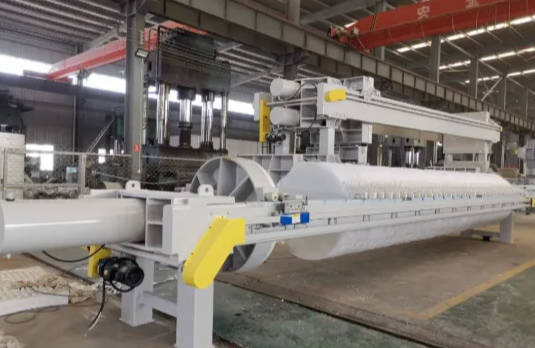

Product Display of Ore Dressing Equipment

Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press

Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press

Ore Dressing Equipment
