Specifications
Brand Name :
ZTIC
Model Number :
Ore Dressing Equipment
Certification :
ISO\CE
Place of Origin :
Henan China
MOQ :
1set
Price :
negotiated
Packaging Details :
Standard packing or according to customer's requirement
Condition :
New
Warranty :
12 months
Number of Chambers :
10
Plate Specifications :
1100X1100mm
Port :
Qingdao China
Classification :
Ore Dressing Equipment
Area :
20m2
Description

Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series

The Cloth-Traveling Automatic Filter Press -our proprietary sludge dewatering technology- utilizes thin-layer dewatering principles to achieve high solids content. Without chemical additives (e.g, lime or fly ash), it reduces sludge moisture from >99% to <60% in a single step. The resulting thin, highly air-permeable filter cakes readily meet pretreatment requirements for downstream processes including drying, incineration, landfill, and composting.

This system can achieve simultaneous rapid cake discharge and cloth washing via lifting reciprocating

motion of filter cloth. Focused on cloud platform and big data technology, it can provide strong guarantee for machine operation and the function of fault advance warning, which greatly improving its stability and reliability.

Featuring a simplified process and compact footprint, this system enables flexible retrofitting of existing facilities while aligning with industry evolution to address diverse application requirements.

Product Parameters of Ore Dressing Equipment

Small Fixed Hydraulic Cylinder Series


Models
Number of
Chambers
Plate Specifications
(mm)
Area(m2)
Chamber Volume
(m3)
Installed Power
(KW)		 Dimensions(mm)
Net Weight(t)
L W H
XZA-1110 10 1100X1100 20 0.35 16.5 5933 2000 2620 12
XZA-1116 16 1100X1100 32 0.56 16.5 6797 2000 2620 16
XZA-1120 20 1100X1100 40 0.7 16.5 7373 2000 2620 17
XZA-1126 26 1100X1100 52 0.91 16.5 8237 2000 2620 18
XZA-1130 30 1100X1100 60 1.05 16.5 8813 2000 2620 19

Large Mobile Hydraulic Cylinder Series


Models
Number of
Chambers		 Plate Specifications(mm)
Area(m2)
Chamber Volume
(m3)
InstalledPower
(KW)		 Dimensions(mm)
Net Weight(t)
L W H
XZB-1536 36 1500X1500 36 1500X1500 131.04 2.293 17.2 8377 2600 2650 36
XZB-1540 40 1500X1500 40 1500X1500 145.6 2.548 17.2 8953 2600 2650 37
XZB-1546 46 1500X1500 46 1500X1500 167.44 2.93 17.2 9817 2600 2650 39
XZB-1550 50 1500X1500 50 1500X1500 182 3.185 17.2 10393 2600 2650 40
XZB-1556 56 1500X1500 203.84 3.567 17.2 11257 2600 2650 42
XZB-1560 60 1500X1500 218.4 3.822 17.2 11833 2600 2650 44

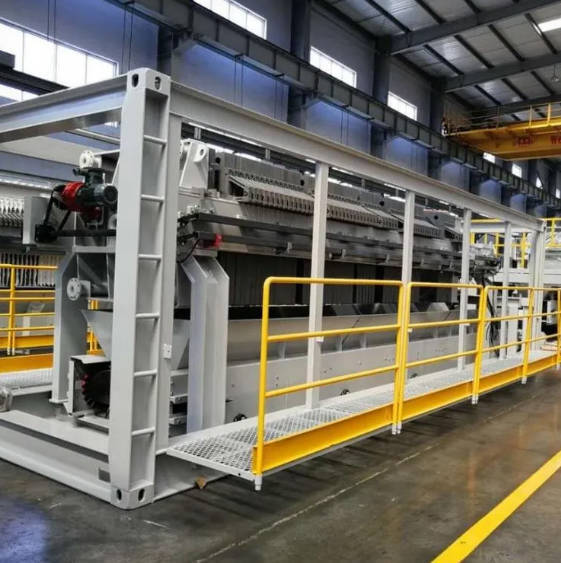

Product Display of Ore Dressing Equipment

Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series
Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series
Ore Dressing Equipment
