Specifications
Model Number :
Cement Plant Equipments
Application :
Field construction without power supply,Mining supporting projects
MOQ :
1 set/sets
Name :
Concrete batching machine
Color :
Customized
Payment Terms :
L/C, T/T
Loading Height :
2400mm
Port :
Qingdao, Tianjin, Shanghai
Brand Name :
ZTIC
After-sales service :
24-hour online support
Type :
PLD800
Price :
negotiate
Feeding Belt Speed :
1.25m/s
Supply Ability :
5000 Set/Sets per Year
Batching Types :
2-3 types
Certification :
IOS/CE
Power :
3kw*3
Place of Origin :
Henan, China
Description

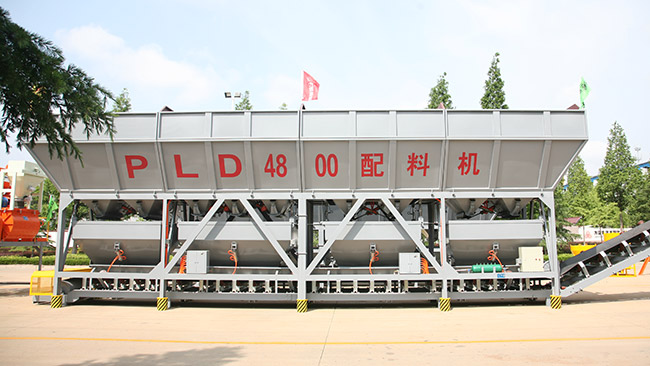

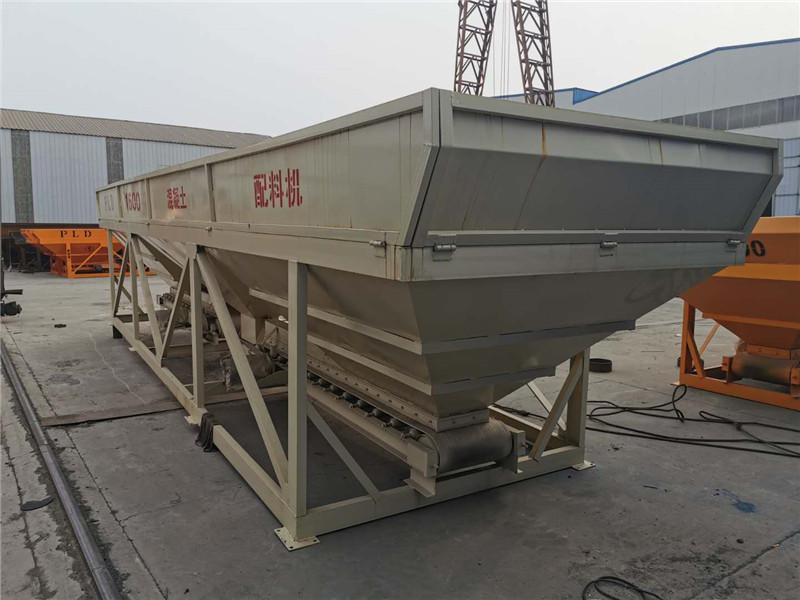

Cement Plant Equipments Construction Machinery PLD Concrete Batching Machine HighPrecision Aggregate Batching Equipment For Batching Plant

1. Product Introduction (Cement Plant Equipments)

As one of the core supporting equipment for cement plants and construction projects, the concrete batching machine is an essential Cement Plant Equipment for concrete production. It is specially used for automatic high-precision weighing, proportioning and feeding of various concrete raw materials such as sand, stone, cement and fly ash. It can be combined with various concrete mixers and mixing plants to form an integrated concrete production line. Replacing traditional manual batching methods, it effectively solves common industry problems including large weighing errors, low efficiency, serious material waste and unstandardized proportioning. Equipped with an intelligent automatic control system, the machine realizes intelligent material control, accurate weighing and automatic feeding throughout the process. It standardizes concrete proportioning, improves the uniformity and stability of finished concrete, guarantees construction quality, greatly boosts production efficiency, and reduces labor costs and material consumption. It is standard essential equipment for small construction sites and large commercial concrete mixing stations.

2. Conventional Technical Parameters (Cement Plant Equipments)

The standardized parameters of the full-series concrete batching machines (Cement Plant Equipments) are as follows, with stable and reliable performance for model selection reference:

Item

PLD600

PLD800

PLD1200

PLD1600

PLD2400

PLD3200

Weighing Hopper Capacity

600L

800L

1200L

1600L

2400L

3200L

Storage Hopper Capacity

2×1.2m³

2×2m³

2×2.2m³

2×2.3m³

2×3.7m³

3×12m³

Productivity

30m³/h

48m³/h

60m³/h

80m³/h

120m³/h

160m³/h

Maximum Weighing Capacity

1000kg

1500kg

3000kg

3000kg

4000kg

4000kg

Batching Types

2-3 types

2-3 types

2-4 types

2-5 types

2-5 types

2-5 types

Loading Height

1850mm

2400mm

3000mm

3000mm

3200mm

3200mm

Feeding Belt Speed

1m/s

1.25m/s

1.25m/s

1.25m/s

1.25m/s

1.25m/s

Power

3kw*2

3kw*3

4kw*3

5kw*4

11kw

15kw

Whole Machine Weight

1000kg

2300kg

4500kg

5600kg

7850kg

10200kg

Overall Dimension

3800*1400*2200mm

5600*1550*2700mm

9000*2000*3500mm

9500*2000*3600mm

10528*2200*4122mm

10828*3650*4122mm

3. Inquiry & Purchase (Cement Plant Equipments)

We are a professional manufacturer and supplier specializing in mining machinery, construction machinery and Cement Plant Equipments. With strong factory strength, sufficient spot inventory and reliable product quality, we provide genuine factory-made concrete batching machines with complete specifications and reliable after-sales service. We support customized model selection, on-site adaptation guidance and long-term equipment warranty, providing cost-effective overall solutions for small-scale construction and large mixing station supporting projects. We adhere to quality-oriented and service-first business philosophy, providing one-stop services including pre-sales model selection consultation, on-site installation guidance and after-sales maintenance. New and old customers, engineering teams and building materials merchants at home and abroad are welcome to consult us, visit our factory and get free accurate quotations. We support bulk preferential prices and look forward to long-term win-win cooperation with you!
