Specifications
Model Number :
Cement Plant Equipments
Port :
Qingdao, Tianjin
Payment Terms :
L/C, T/T
Application :
Cement manufacturing
Feed Capacity :
850L
Compliance :
ISO 9001, CE certified
Certification :
IOS/CE
MOQ :
1 set/sets
Item :
Horizontal mortar mixer
Discharge Capacity :
750L
Price :
negotiate
Material :
Steel
Supply Ability :
5000 Set/Sets per Year
Raw materials :
cement, sand, stone, water and various mortar additives
Place of Origin :
Henan, China
Model :
Concrete Mixer
Brand Name :
ZTIC
Classification :
Cement Plant Equipments
Description

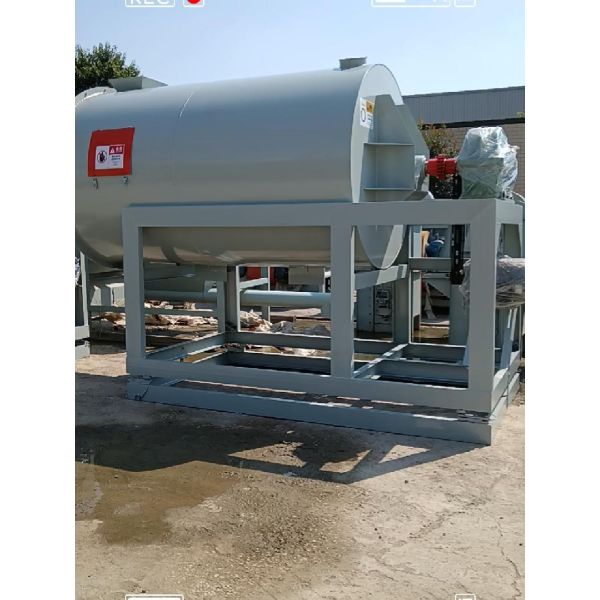

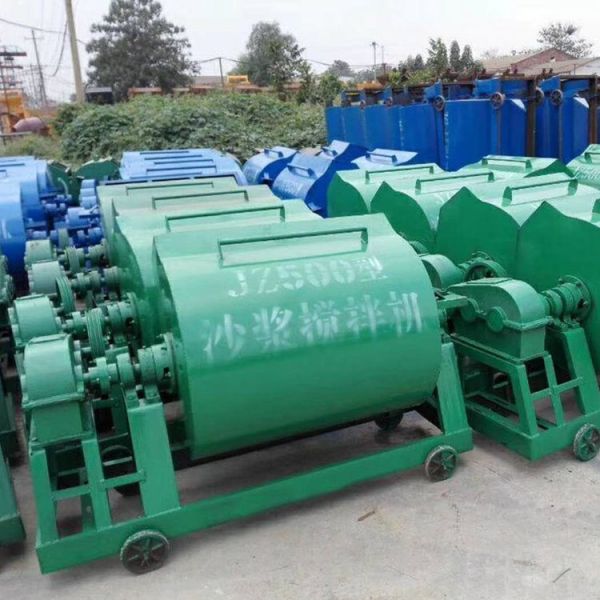

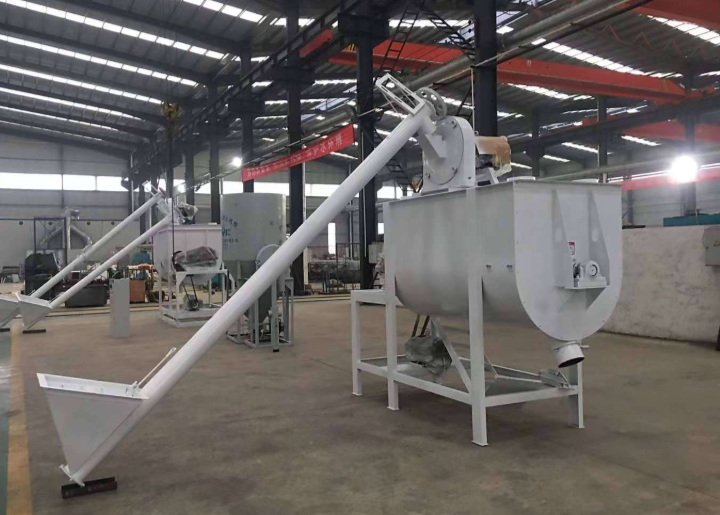

Cement Plant Equipments Mobile Wheel Horizontal Mortar Mixer Easy Transfer For Construction Sites

1. Product Introduction of Cement Plant Equipments Horizontal Mortar Mixer

Horizontal mortar mixer is a special material mixing and processing machine widely used in engineering industries. It is mainly applied to fully blend raw materials including cement, sand, stone, water and various mortar additives, so as to rapidly prepare masonry mortar, plastering mortar, waterproof mortar and other finished mortars.

Adopting a horizontally placed mixing drum structure, the machine is equipped with rotary mixing blades inside. Driven by the horizontal shaft, materials tumble and rub in all directions, thoroughly solving common defects of vertical mixers such as material stratification and uneven mixing. The whole unit is fitted with a stable frame and movable casters, and some models are matched with an independent electric control cabinet for high automation. The mixing process runs smoothly with greatly reduced material separation, delivering uniform and stable finished mortar. Whether for on-site construction of building sites or supporting civil works in mining plants, it is an indispensable basic mixing machinery.

2. Standard Technical Parameters of Cement Plant Equipments Horizontal Mortar Mixer

Item

JZ500

JZ600

JZ750

JZ1000

Model

JZ500

JZ600

JZ750

JZ1000

Motor Power

3kw

3kw

4kw

4kw

Feed Capacity

560L

680L

850L

1100L

Discharge Capacity

400L

500L

750L

1000L

Aggregate Diameter

30mm

45mm

45mm

45mm

Productivity

20m³/h

26m³/h

38m³/h

38m³/h

Mixing Shaft Speed

45r/min

45r/min

45r/min

45r/min

Weight

200kg

260kg

320kg

380kg

External dimensions

1600*700*950mm

1700*780*950mm

1850*800*950mm

1950*800*950mm

3. Purchase Inquiry | Full Series In Stock, Welcome to Ask for Quotation & Purchase of Cement Plant Equipments Horizontal Mortar Mixer

Our factory has years of professional experience in manufacturing mining machinery and construction mixing equipment. All models of horizontal mortar mixers are sufficiently stocked, including JZ400, JZ500, JZ600, JZ750 and JZ1000, which can be delivered on the same day. Customized modifications are available as required, such as lengthened mixing drums, automatic feeding machines and upgraded thickened wear-resistant blades.

All machines pass strict factory inspection and come with quality warranty service. Original factory spare parts are permanently supplied afterward to eliminate customers’ worries about equipment use.

Whether you need bulk supporting procurement for mining plants, multi-unit stock-up for construction engineering companies, or single-unit purchase for small construction teams, we can offer favorable bulk prices. You are welcome to visit our factory for machine inspection and test runs, and we can provide customized working condition matching solutions.

New and old customers with procurement demands are welcome to contact our customer service at any time for detailed quotations, real machine videos and transportation plans. More discounts for bulk orders. We look forward to long-term cooperation with all bosses engaged in engineering and mining industries!

Cement Plant Equipments Mobile Wheel Horizontal Mortar Mixer Easy Transfer For Construction SitesCement Plant Equipments Mobile Wheel Horizontal Mortar Mixer Easy Transfer For Construction Sites

Cement Plant Equipments Mobile Wheel Horizontal Mortar Mixer Easy Transfer For Construction Sites

Cement Plant Equipments Mobile Wheel Horizontal Mortar Mixer Easy Transfer For Construction Sites
