JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments
JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments
JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments
JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments
Specifications
Productivity :
50-60m³
Model Number :
Cement Plant Equipments
Application :
Mining supporting projects,Field construction without power supply
MOQ :
1 set/sets
Name :
JS Mobile Forced Mixing Plant
Aggregate weighing precision :
±2%
Payment Terms :
L/C, T/T
Feed Capacity :
1600L
Total power :
70kw
Price :
negotiate
Maximum aggregate size :
60mm/80mm
Supply Ability :
5000 Set/Sets per Year
Discharge Capacity :
1000L
Certification :
IOS/CE
Brand Name :
ZTIC
Classification :
Cement Plant Equipments
Model :
JS1000
Place of Origin :
Henan， China
Description

JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments

1. Product Introduction｜JS Mobile Forced Mixing Plant | Cement Plant Equipments

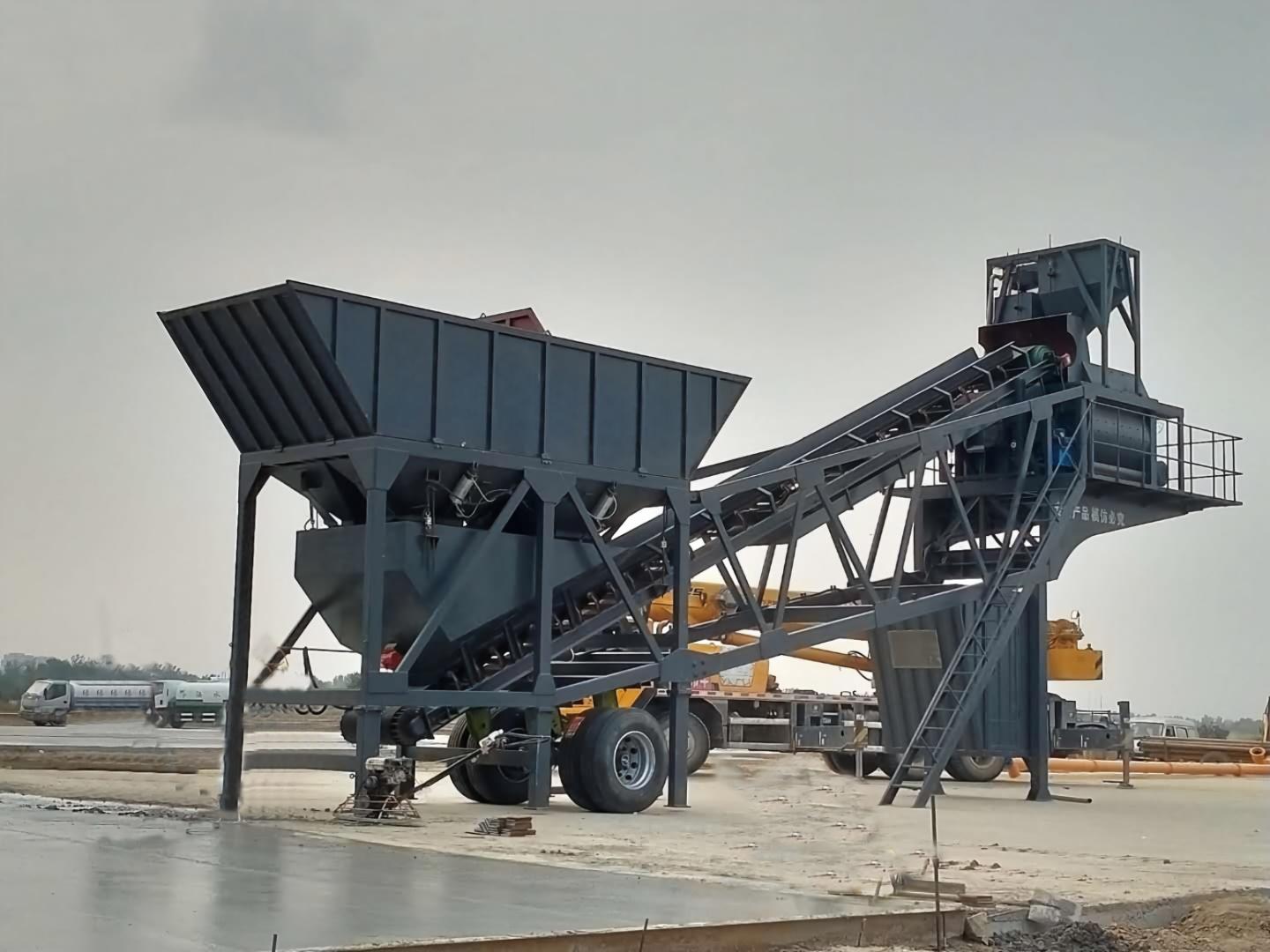

JS Mobile Forced Mixing Plant is a complete set of professional concrete-producing equipment. It integrates a mobile mixer and supporting batching system. With wheel-mounted vehicle-integrated structure, it is easy to relocate without complicated civil construction. The equipment can start concrete mixing work right after positioning, serving as a flexible and efficient solution for concrete preparation in construction projects.

2. General Technical Parameters｜JS Mobile Forced Mixing Plant | Cement Plant Equipments

Item JS500 JS750 JS1000 JS1500 JS2000 JS3000
Discharge capacity 500L 750L 1000L 1500L 2000L 3000L
Feed capacity 800L 1200L 1600L 2400L 3200L 4800L
Maximum aggregate size 60mm/80mm 60mm/80mm 60mm/80mm 60mm/80mm 60mm/80mm 60mm/80mm
Productivity 20-30m³ 30-35m³ 50-60m³ 80-90m³ 100-120m³ 150-180m³
Total power 50kw 60kw 70kw 90kw 140kw 210kw
Aggregate weighing precision ±2% ±2% ±2% ±2% ±2% ±2%
Cement weighing precision ±1% ±1% ±1% ±1% ±1% ±1%
Fly ash weighing precision ±1% ±1% ±1% ±1% ±1% ±1%
Water weighing precision ±1% ±1% ±1% ±1% ±1% ±1%
Additive weighing precision ±1% ±1% ±1% ±1% ±1% ±1%

3. Product Advantages｜JS Mobile Forced Mixing Plant | Cement Plant Equipments

(1) Excellent mobility:

Wheel-mounted integrated design, towed directly by truck tractor, avoiding complicated disassembly and transportation.

(2) Fast commissioning:

Minimal civil foundation required. Put into production after simple onsite fixing, greatly cutting pre-project preparation time.

(3) Forced mixing host:

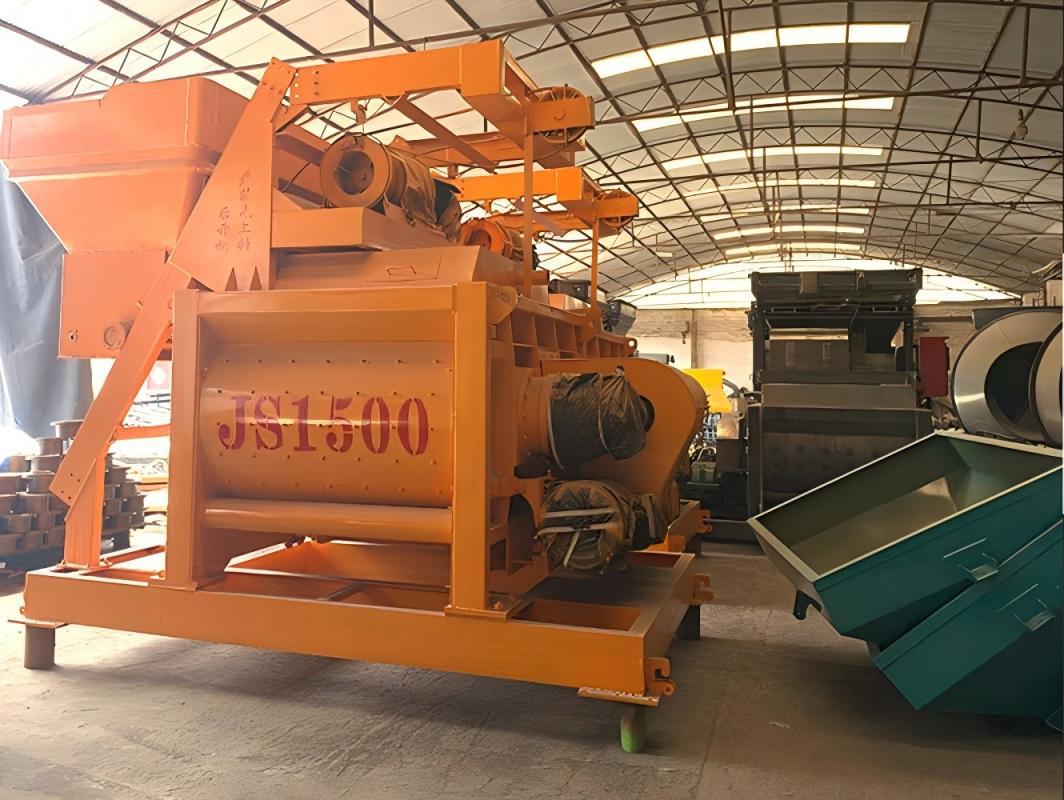

JS twin-shaft forced mixer delivers thorough mixing and stable finished concrete quality.

(4) High-precision metering:

Independent weighing for aggregate, cement, fly ash, water and additives to guarantee accurate concrete proportioning.

(5) All-in-one unit:

Integrates batching, weighing and mixing to complete full concrete production workflow.

(6) Flexible options:

Multiple model selections for different output capacity, matching varied project budgets and production demands.

JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments

JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments

JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments

JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments

JS Mobile Forced Mixing Plant Fast Transfer Construction Concrete Mixer Cement Plant Equipments
