PLC Control Ore Cement Ball Mill American AGMA Standard
PLC Control Ore Cement Ball Mill American AGMA Standard
PLC Control Ore Cement Ball Mill American AGMA Standard
PLC Control Ore Cement Ball Mill American AGMA Standard
Specifications
Brand Name :
ZTIC
Model Number :
Ore Grinding Mill
Certification :
ISO/CE
Place of Origin :
Henan, China
MOQ :
1 Set/Sets
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 Set/Sets per Year
Product Name :
Cement Ball Mill
Condition :
New
Type :
Ore Grinding Mill
Application :
Stones and bulk materials
Warranty :
12 months
Uasge :
Building materials, chemical
Application Industry :
Cement Plant, Steel Mill, Chemical Plant & Incinerator
Port :
QingDao,TianJian,ShangHai
Description

Cement Ball Mill Ore Grinding Mill PLC Control American AGMA Standard

1. Technical characteristics of large cement mill

(1) The transmission forms used by the drum mill include edge leaflet, center drive, multi-point meshing edge drive, etc.; the drive forms include asynchronous motor + reducer + pinion + large gear and synchronous motor + air clutch + pinion + large gear;

(2) Generally, the support method of static and dynamic pressure bearings at both ends is adopted, and a fully enclosed self-aligning 1200 line contact 'rocker type' bearing is used. Full static pressure support;

(3) The large open gear is designed according to the American AGMA standard, equipped with a sealed and reliable gear cover, and equipped with a glycerin automatic spray lubricating device;

(4) The cylinder is the key part of the mill, and a computer is used to carry out finite element analysis on it to ensure the reliability of its use;

(5) The large and medium-sized mills are equipped with slow drive devices;

(6) Large and medium-sized mills are equipped with high and low pressure lubrication stations;

(7) The control and protection system adopts PLC control.

2.Ore grinding mill technical parameters

NO. Model(m) Capacity (t/h) RPM(r/min) Abrasive body loading (t) Effective volume Main motor Dimensions(mm) Weight(T)
Power(kw) Voltage(V) L W H
1 Φ2.2×6.5 13-14 22 31 21.4 380 6000 12385 5390 4210 53
2 Φ2.2×11 15-16 21 50 36 630 6000 21559 4540 3520 109
3 Φ2.2×13 16-18 21.5 60 43 630 6000 26079 4540 3520 114.2
4 Φ2.4×8 15 20.8 45 30 560 6000 17215 5564 4540 82.53
5 Φ2.4×13 20-23 19 65 51.7 800 6000 27580 4540 3620 138
6 Φ2.6×13 30-32 19.6 80 60 1000 6000 20883 7740 5670 144.5
7 Φ3×9 28-32 17.8 70-80 55 1000 6000 23568 4760 3670 138.7
8 Φ3×11 36-40 18.9 100 69 1250 6000 27610 5720 4080 181.9
9 Φ3×11 36 17.69 100 69 1250 6000 24567 7510 5968 156.5
10 Φ3.2×11 40-45 17.4 90-100 78 1250 6000 28000 5720 3672 180
11 Φ3.5×9.5 40 18 115 76.4 1400 6000 29717 5250 5000 194.4
12 Φ3.5×11 45 17.2 116 78.5 1600 6000 28454 5350 5600 271.64
13 Φ3.6×8.5 60 16.5 102 86 2500 6000 19693 4141 5404.5 233.3*
14 Φ3.8×9 70-80 16.5 130 94 2000 6000 28521 5550 5600 255.2
15 Φ3.8×12.5 55 16.4 167 123.5 2500 6000 17419 10745 8204 301.4
16 Φ3.8×13 60 16.3 173 128 2500 6000 19693* 4141* 5404.5 223.3*
17 Φ4.2×11 120 15.75 182 134.5 2800 18500 4400 6500 256**
18 Φ4.2×11.5 130 15.99 199 138 2800 10000 18002 8962 7520 219**
19 Φ4.2×11.5 130 16 199 138 2800 17259 4960 5600 220**
20 Φ4.2×12.5 85 16 210 151 3150 18400 4960 8640 251**
21 Φ4.2×12.5 145 16 210 151 3150 18400 4960 8640 242**
22 Φ4.2×13 75 15.6 209 157 3150 174450 4880 8000 255**
23 Φ4.2×13 150 15.6 209 157 3150 17445 4880 8000 256**
24 Φ4.2×13.5 80-85 15.8 230 164 3550 17744 6700 6010 256**
25 Φ4.2×14 95 15.6 252 169 3550 19055 20490 23200 220**
26 Φ4.2×14.5 95 15.8 250 178 4000 5050 6700 11054 278**
27 Φ4.6×14 95-110 15 285 185 4200 6000 23200 11054 6370 310**

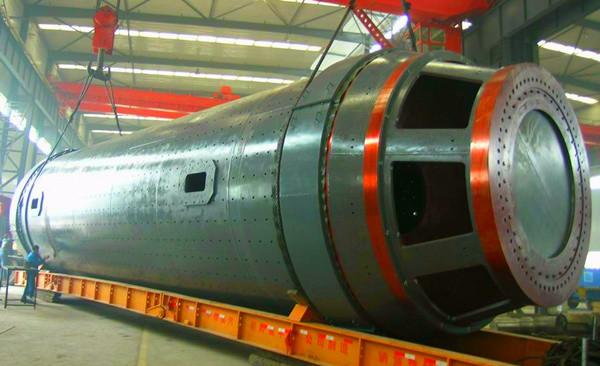

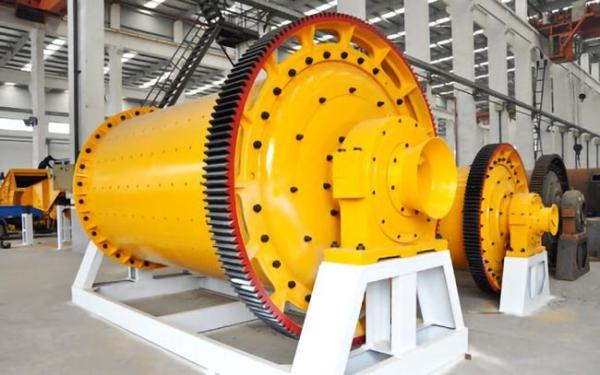

3.Ore grinding mill photo explanation

PLC Control Ore Cement Ball Mill American AGMA Standard
