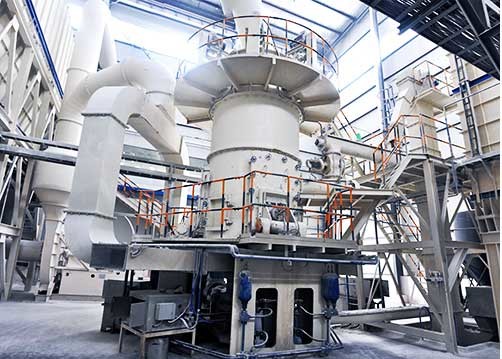

325-3000 mesh super fine making machine Ultra-fine powder mill
Advantages of Ultra-fine powder mill
1.The yield is 40% higher than other mills.
2.High utilization rate of Wear material:2-5years.
3.Adjustable particle size:325-3000mesh.
4.High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.
5.Closed system, so it is the green and ideal equipment for environment protection.
Technology Data of Ultra-fine powder mill
| Model | HGM80 | HGM90 | HGM100 | HGM125 | HGM1680 |
| Ring Diameter(mm) | 800 | 900 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3-4 | 4 | 4 | 4 |
| Roller Number(PCS) | 18-21 | 24-29 | 28-36 | 30-44 | 30-40 |
| Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 135-155 | 120-130 |
| Input Size (mm) | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 |
| Finished Size (um/mesh) | 74-5 (200-2500) | 74-5 (200-2500) | 74-5 (200-2500) | 100-6 (150-2000) | 100-9 (150-1500) |
| Capacity (t/h) | 0.4-4.5 | 0.6-6.5 | 1-9 | 2-16 | 3.8-30 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | 26.3*7.5*11.9 |
