Specifications
Place of Origin :
Henan, China
Brand Name :
CITIC
Supply Ability :
1000 Set/Sets per Year
Packaging Details :
Standard packing or according to customer's requirement
MOQ :
1 Sets
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :
CITIC HIC Machine Parts
Certification :
ISO/CE
Shape :
Spur
Condition :
New
Warranty :
1.5 years
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service :
Video technical support, Online support
Local Service Location :
Viet Nam, Indonesia, Australia, Argentina
Showroom Location :
None
Material :
Steel
Product Name :
ring gear, girth gear
Certificate :
ISO9001:2015
Color :
Customers' Demand
Application :
large cement ball mill and rotary kiln
Standard or Nonstandard :
Standard
Processing :
Casting
Item :
Machining Parts
Port :
QingDao,ShangHai,TianJin
Description
Products Description

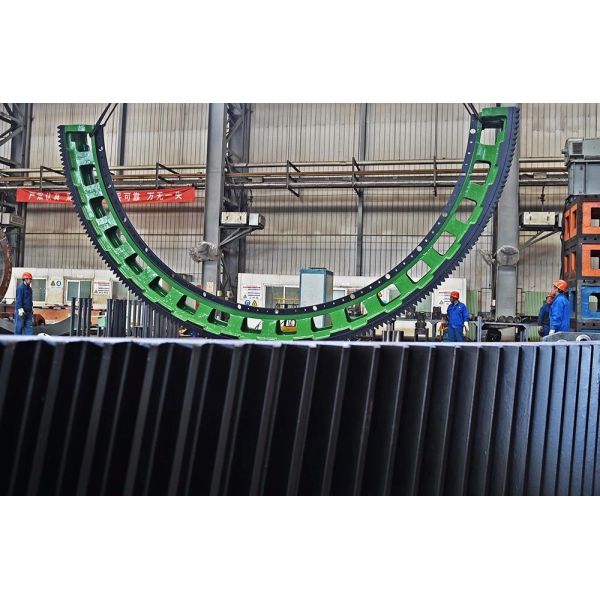

Girth gear

Product Name Steel girth spur gear
Weight Max 120 MT single piece
Applications industries
Module Range 10 Module to 70 Module.
Diameter Min 100 mm to16000 mm.
Weight Max 120 MT single piece.
Gear Cutting Capacity 100mm diameter to 16000mm diameter,10Module to 70Module

External teeth
Maximum diameter 16000 mm
Toothed face width 1700 mm
Maximum module 45 by hob
Maximum module 65 gear finishing cutter
Internal teeth
Maximum Diameter 6500 mm
Maximum module 25.4
Toothed face width 400 mm
Standards/Certificates
• UNI EN ISO
• AWS
• ASTM
• ASME
• DIN

Spur Gear And Ring Gear

120 MT Cement Ball Mill Girth Gear Machine Parts And Spur Gear And Ring Gear
120 MT Cement Ball Mill Girth Gear Machine Parts And Spur Gear And Ring Gear
Spur Gear And Ring Gear
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
