Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Specifications
Place of Origin :
Henan, China
Brand Name :
ZTIC
Supply Ability :
100000 Set/Sets per Year
Packaging Details :
simple packing for gear box pinion gear
MOQ :
1 Set/Sets
Price :
$5,000.00 - $100,000.00 / Set
Model Number :
Bevel Pinion Gear
Certification :
ISO\CE
Payment Terms :
L/C, T/T
Shape :
Spur
Applicable Industries :
industy
Material :
Steel
Product Name :
gear box pinion gear
Application :
Gear Starter
Color :
Customized Color
Service :
After-sale Service
Keyword :
gear
Aplication :
gear box
Port :
Qingdao
Description
Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price
Product Description

Pinion Gears offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD.Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others.Further, we can also custom design these in finish specifications as demanded by the customers.

Pinion for:-
Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPD
Integral pinion shaft for cement plant or ball mills
Pinion & pinion assemblies for Alumina, kaolin-bentonite plants, phosphate mining plant
Main Type of pinion applications as given below for the all above mentioned plants:
Kiln Pinion
Cooler pinion
Pinion shaft
Pinion assembled with shaft, bearings, plummer blocks
Integral pinion shaft upto 3 mtr total lentgh.


Product description of pinion gear and big gear ring
Big gear, also known as big gear ring, is the key component of rotary kiln, ball mill and other equipment. Among them, the big gear ring of rotary kiln is one of the most critical parts in the transmission device of rotary kiln. Its installation quality directly affects the stability of the transmission system of rotary kiln, the stability of the operation of rotary kiln, the service life of kiln lining and the operation rate of rotary kiln.
Due to the requirements of manufacturing capacity, transportation and installation, the ring consists of two half gears connected together with opposite screws and tangentially fixed to the kiln body by a spring plate. In order to complete the installation and alignment of large gear ring with high quality, scientific and feasible construction schemes must be formulated whether it is newly installed or reinstalled after overhaul

Pinion gear material
42CRMO STEEL DATA

CHEMICAL LIST

C : 0.38-0.45%

Si: 0.17-0.37%

Mn: 0.50-0.80%

S : Allow residual content <0.035%

P : Allow residual content <0.035%

Cr: 0.90-1.20%

Ni: Allow residual content <0.030% Cu: Allow residual content <0.030%

Mo: 0.15-0.25%

MECHANICAL DATA

Tensile Strength σb (MPa): >1080(110)

Yield point σs (MPa): >930(95)

Elongation σ5 (%): >12

Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63

Impact toughness value αkv (J/cm2): >78(8)

Hardness: <217HB

Sample size: The blank size of the sample is 25mm

PHYSICAL DATA

Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃, Ms=310℃

Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃ /20 ~400℃/20~500℃ /20~600℃

linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K

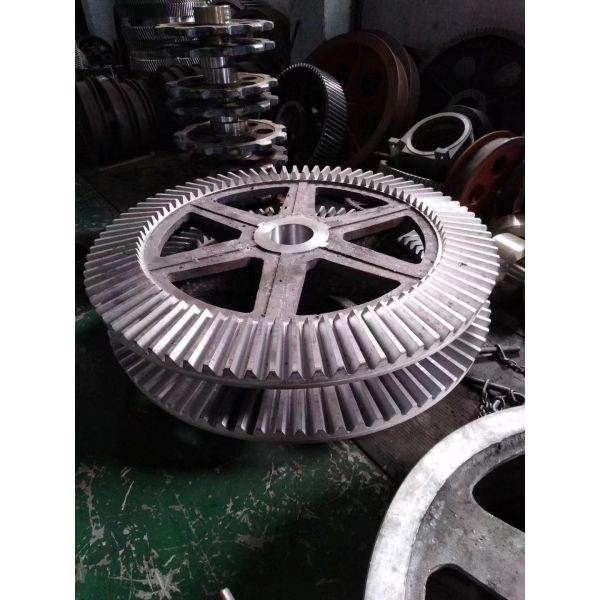

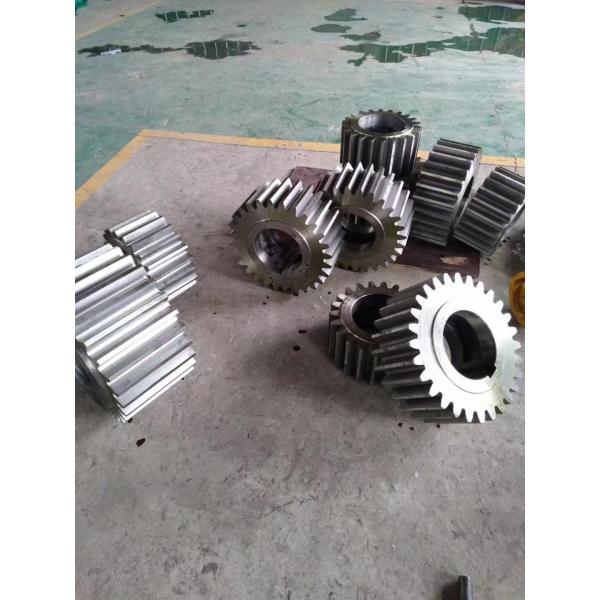

Product Display of Bevel Pinion Gear

Spur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory PriceSpur Bevel Pinion Gear And Bevel Gear Small Pinion Gear Factory Price

Bevel Pinion Gear

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
