New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card
New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card
New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card
New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card
New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card
New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card
Specifications
Place of Origin :
China
Brand Name :
RFID
Product name :
Prelams
Printing Type :
Offset/Screen Printing/digital Printing,custom
Material :
PVC
Individualization :
custom, embossing or print name, number,date etc
Application :
club,advertisement,traffic,supermarket,parking,bank, government
MOQ :
200
Supply Ability :
100,000pcs
Certification :
ROHS,SGS,ISO
Description

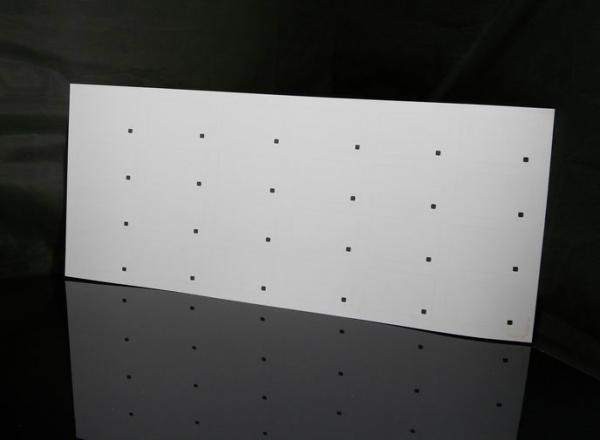

RFID Prelams Middle sheet the smart card RFID card Prelams, Inlay in 2*2,2*5,4*6,6*8 size

New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card

A Radio-Frequency Identification system has three parts:

  • A scanning antenna
  • A transceiver with a decoder to interpret the data
  • A transponder - the RFID smart card - that has been programmed with information.

Features Working Frequency: 125KHZ,13.56MHZ
Chip type: EM4200, series
Material: PVC, PET
Inlay Format: 2*4, 2*5, 5*5, 3*6, 3*7, 3*8, 4*8, 4*10, etc
Thickness: 0.45± 0.02(FCP), 0.52± 0.02mm (W/B), etc.
Antenna: Cooper Antenna.
User Environment Operating temperature: -20 degree Celsius to +75 degree Celsius
Storage temperature: -20 degree Celsius to +80 degree Celsius
Inlays per roll: 5, 000
Package: Corrugated Carton
Rolls per carton: up to 6
Weight: 0.95± 0.05kg/roll; 6.46± 0.3kg/ carton (2.1± 0.11lbs/roll; 14.2± 0.66lbs/carton)
Performance Specifications Reading Distance: 1-15cm
Data Storage Time: 10 years.
Application: smart card, RFID card, contactless card, contact-free card, door access control card, attendance card and parking card

New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart cardNew customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card

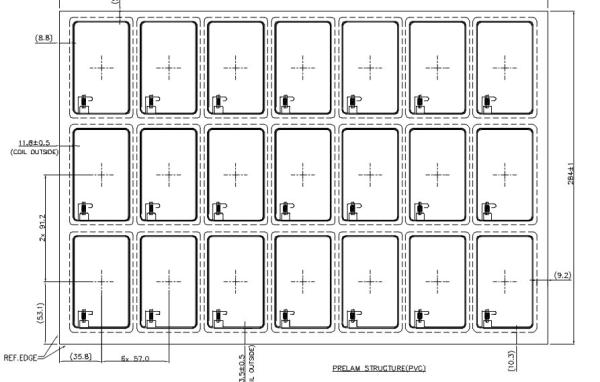

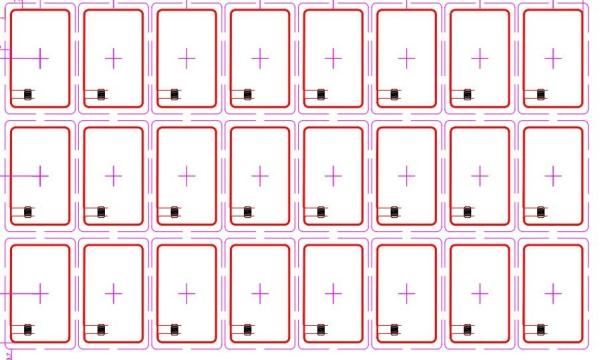

Common size of inlay including:

305mmx460mm, 320mmx464mm, 300mmx480mm, 390mmx480mm, 500mmx650mm is okay for us .

The thickness of inlay can be 0.35~0.60mm. Inside of the inlay ,we adopt etched antenna or ultrasonic automatic submerged line coil for production process ,internal coil arrangement can be arranged in accordance with customer requirements. In the inlay we can according to customer requirements to printing date,logo,etc.on the surface it can be printed wireframe,outside of inlay can be cut into any size according to customer’s requirements.

New customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart cardNew customized size RFID Prelams, HF Contactless smart card, RFID card Inlay,13.56MHZ RFID chip for smart card
