13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip
13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip
13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip
13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip
Specifications
Brand Name :
WS
Certification :
ISO,ROHS
Place of Origin :
CHINA
MOQ :
200
material :
PET
chip :
SLI
RFID :
NFC
Frequency :
13.56MHZ
reading range :
up to 1.5 m (depending on antenna geometry)
Antenna :
etched antenna
Delivery Time :
7-8 days
Supply Ability :
1,000,000 Per month
Payment Terms :
TT,PAYPAL,WU
Description

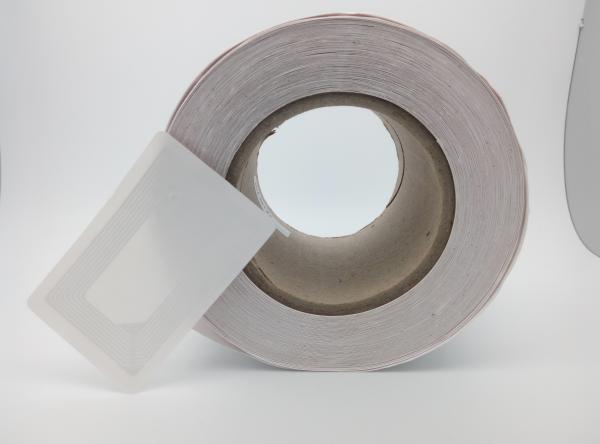

13.56MHZ HF RFID Inlay dry inlay / wet inlay PET material with SLI chip

Frequency HF 13.56MHz

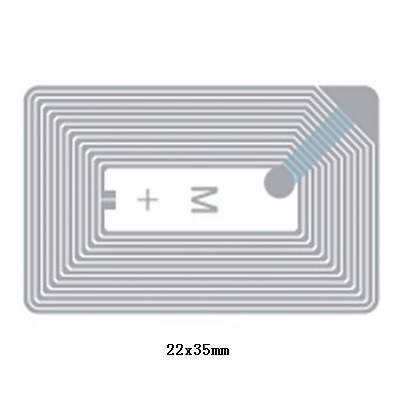

Label Size 25*37mm
Wet Inlay Size 25*37mm
Chip SLI
Antenna Aluminium etching antenna
Bonding Flip chip
Unwinding chip side up
Thickness 0.07mm
Reading Distance up to 1.5 m (depending on antenna geometry)
Operation Temp. -20°C~+65°C
Storage Temp. -25°C~+65°C
Date Storage ≥10 years
Packing 10,00pcs/roll each roll in a inner case , 4 rolls per master ctn
Samples upon request
Declare The showing picutre is only fore reference of our product.All related to intelletural property rights of trademark belong to trademark company

Handling

  • Inlays with ink marks are defective, do not use.
  • RFID Inlays or labels are sensitive product, do not bend or stretch
  • Static-free bag will be use for packing; always keep environmental static charge to a minimum.
  • InlaySolution reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
  • All products from Unico Solution should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. Unico Solution does not represent that this product is fit for any particular purpose or use.

13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip

SLI

Features

SLI RF Interface (ISO/IEC 15693)
  • Contactless transmission of data and supply energy (no battery needed)
  • Operating distance: up to 1.5 m (depending on antenna geometry)
  • Operating frequency: 13.56 MHz (ISM, world-wide licence free available)
  • Fast data transfer: up to 53kbit/s
  • High data integrity: 16 Bit CRC, framing
  • True anticollision
  • Electronic Article Surveillance (EAS)
  • Application Family Identifier (AFI) supported
  • Data Storage Format Identifier (DSFID)
  • Additional fast anticollision read
  • Write distance equal to read distance
EEPROM
  • 1024 bits, organised in 32 blocks of 4 byte each
  • Data retention of 10 years
  • Write endurance 100.000 cycles
Security
  • Unique identifier for each device
  • Lock mechanism for each user memory block (write protection)
  • Lock mechanism for DSFID, AFI, EAS

company capacity

we always focused on providing to end users and distributors with the better products, faster delivery and more favorable price. We offer products as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.

Packing detalis below:


Qty/Roll (Actual Qty as per Shipping Mark)
12,800±300pcs/roll; 1roll/carton


Packaging
A. Use two lines of 25mm interleaf to protect IC and antenna.
B.Keep away from water, collision and static.
C. Delivery with the package of static-free bag.

13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip13.56MHZ HF Dry RFID Inlay / Wet Inlay PET With SLI Chip
