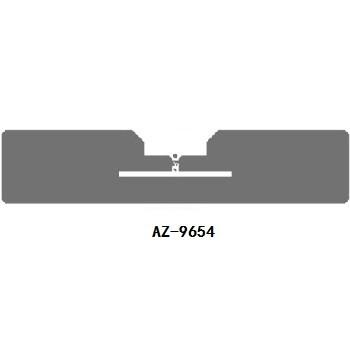

High Quality AZ-9654 UHF inlay RFID dry inlay / wet inlay ALIEN H3 chip

1.Chip: Alien H3

2.Die Cut Size: 19mm*93mm

3.Environmental: ROHS compliant

4.Data storage: >10 years

5.Re-write: 100,000 times

6.Fixture: 3M adhesive

7.Customization: Company logo print

8.Application: Assets statistics management, small equipment management, firearms management, drug management, etc.

• Handling
• Inlays with ink marks are defective, do not use.
• RFID Inlays or labels are sensitive product, do not bend or stretch
• Static-free bag will be use for packing; always keep environmental static charge to a minimum.
• White Smart RFID reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
• All products from White Smart RFID should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. InlaySolution does not represent that this product is fit for any particular purpose or use.

Alien Model Features

Higgs-3

• Meets EPCglobal™ Gen2 (V 1.2.0) as well as ISO/IEC 18000-6C
• 800-Bits of Nonvolatile Memory
  • 96-EPC Bits, extensible to 496 Bits
  • 512 User Bits
  • 64 Bit Unique TID
  • 32 Bit Access and Kill Passwords
• Pre-Programmed with a unique, unalterable 64-bit serial number
• User Memory can be Block Perma-Locked as well as read password protected in 64 Bit Blocks
• Supports all Mandatory and Optional Commands including Item Level Commands

Packing detalis below:

Qty/Roll (Actual Qty as per Shipping Mark)
12,800±300pcs/roll; 1roll/carton

Packaging
A. Use two lines of 25mm interleaf to protect IC and antenna.
B.Keep away from water, collision and static.
C. Delivery with the package of static-free bag.
