Specifications
Place of Origin :
Jiangsu, China
Brand Name :
BOLIMILL
Certification :
ISO CE
MOQ :
1
Price :
$2,700
Mixer type :
Paddle
Material processed :
Plastics, Chemicals, Food
Weight :
220 kg
Material :
SS304
Voltage :
220-660V
Power :
2.2 kW
Capacity :
100L
Max loading :
50 KG
Speed :
24 Rpm/min
Length :
1400 mm
Width :
580 mm
Height :
1000 mm
Core components :
motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Bearing, Engine
Additional capabilities :
Milling
Working method :
S shape blade turns materials
Description
Product Description

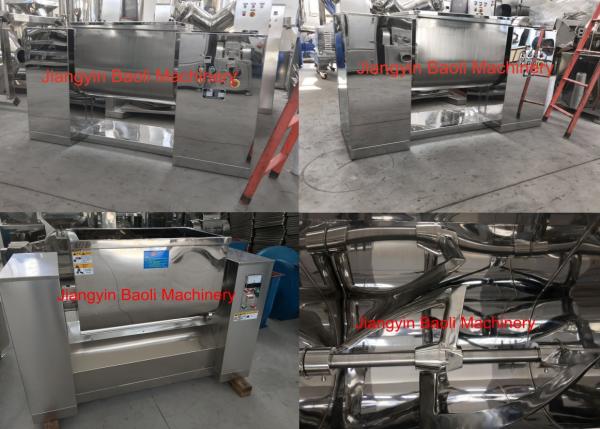

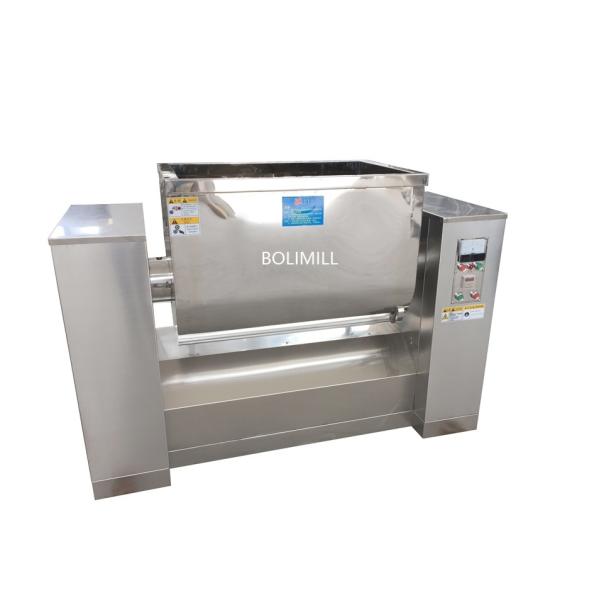

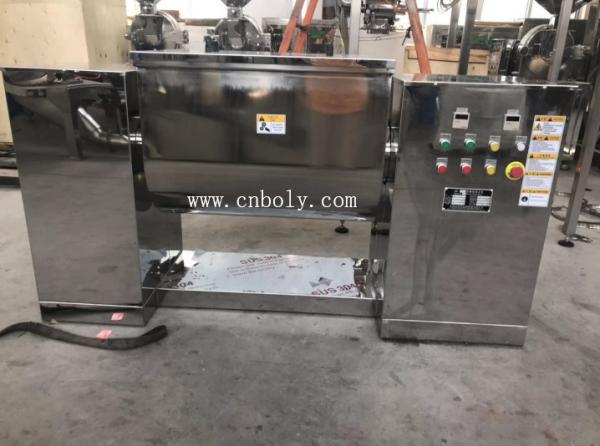

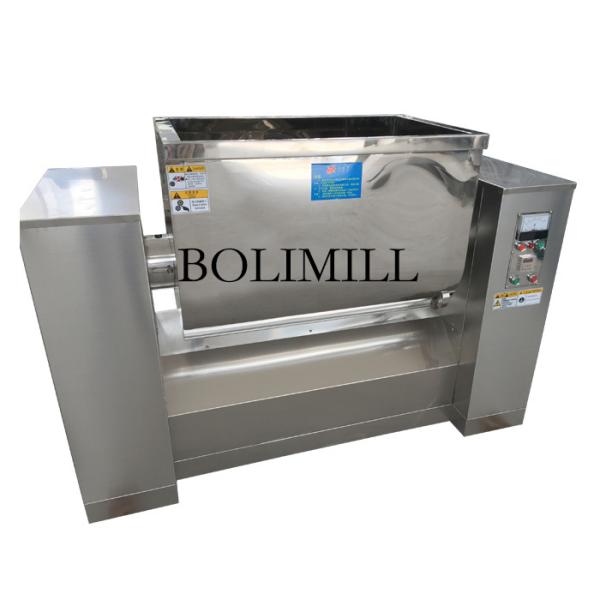

Breaded granule mixing machine Horizontal trough mixing machine

Application:

This type of mixer is suitable for mixing of target materials in powder or paste state evenly.
Powder liquid mixer mixing machine and industrial trough mixing mixer
Working method:

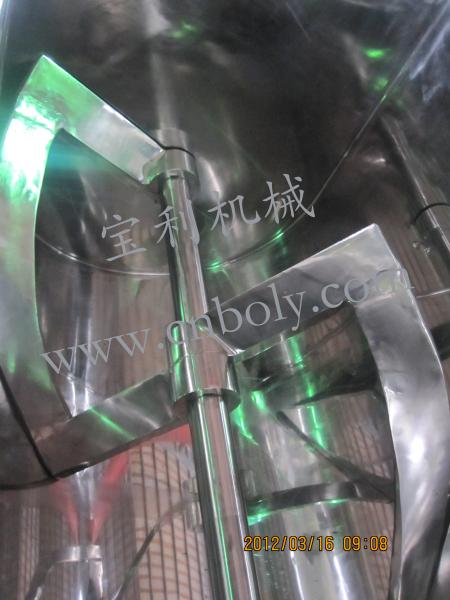

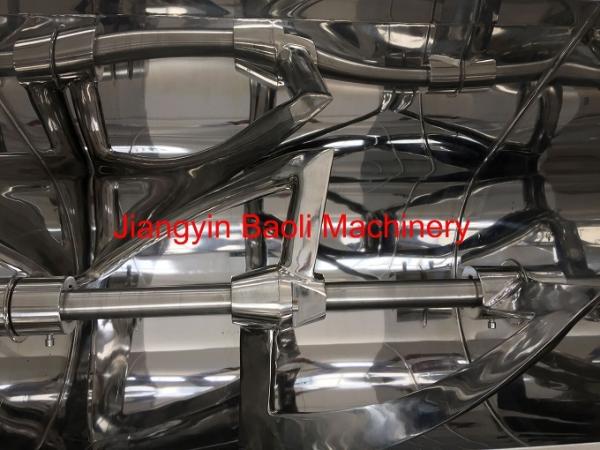

By driving of mechanism of the mixer,the S shape blade turns target materials to-and-fro to mix it evenly..

Industrial Trough Mixing Machine for Powder and Liquid SUS304
Technical Data
Industrial Trough Mixing Machine for Powder and Liquid SUS304
Model
Main Structural Dimensions(mm)
Volume
Max loading
Speed
Machine weight
L
W
H
L
KG
Rpm/min
Kg
JB-100
1400
580
1000
100
50
24
220
JB-150
2000
630
1150
150
75
24
300
JB-200
2300
750
1250
200
100
24
400
JB-300
2700
850
1350
300
150
24
600
JB-500
2750
800
1400
500
250
24
800
JB-1000
3350
1100
1550
1000
500
24
1400
Related Products
Industrial Trough Mixing Machine for Powder and Liquid SUS304

Pharmaceutical small powder bin blender machine

91.8% Response Rate

Industrial Trough Mixing Machine for Powder and Liquid SUS304

Horizontal powder ribbon blender powder mixing machine price

91.8% Response Rate

Industrial Trough Mixing Machine for Powder and Liquid SUS304

Chemical Industrial 3D lab Dry Powder Mixer

91.8% Response Rate

If you want to send inquriy to me about Medicine extractum mixer SUS304316 Mixing Machine for Veterinary drugs Horizontal Static Blender, could you please tell me?
1) What material you want to mix?
2) What capacity you expect ? (kg/batch or litre/batch )
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
4) What material of the equipment you want? usually we adopt all stainless steel 304.
You can also choose
A all SUS304

C all 316L
D contact part 316L, other parts SUS 304
Then our communication will be more efficient.

Transaction History
Industrial Trough Mixing Machine for Powder and Liquid SUS304
Certifications
Industrial Trough Mixing Machine for Powder and Liquid SUS304

Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history since 2008.
And our factory's history is from 2004.
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc

Our Service
Industrial Trough Mixing Machine for Powder and Liquid SUS304

Pre-Sales Service

* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.

Industrial Trough Mixing Machine for Powder and Liquid SUS304

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.

Our Company
Industrial Trough Mixing Machine for Powder and Liquid SUS304

Jiangyin Baoli Machinery Manufacturing Co.,Ltd is a manufacturing-oriented enterprise founded in 2004.

After more than ten years of unremitting efforts, our company mainly applicated in Crushing/Mixing/Coneying/Sifting/Drying equipments from all over the world.


Why choose us?
* 24 hours online email service.
* Our principle: high honest, quality,service
* We are a big factory with rich experience and technology, engaged in the machinery industry. Best quality controls best services.


Why your machine similar with other supplier?
We are manufacturer and had been in this industry for many years. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.

I'm new in our industry, but I'm planning to set up a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.

Our company specialized in making grinding machines,mixers and sifters....

If you want to know about our machines ,you can contact me at any time.
