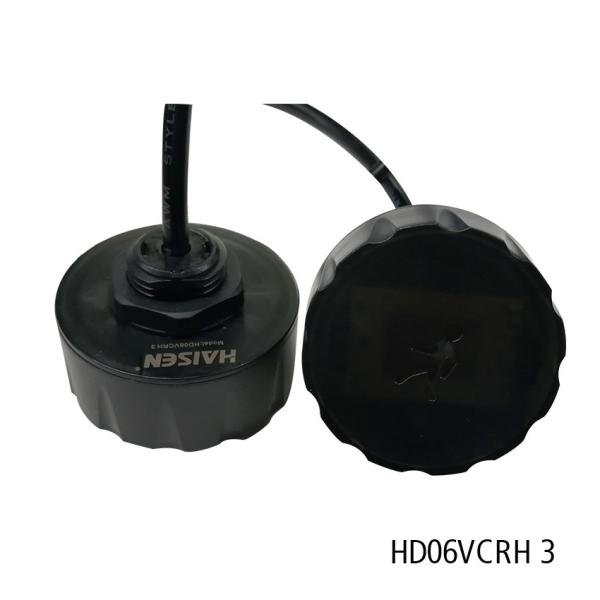

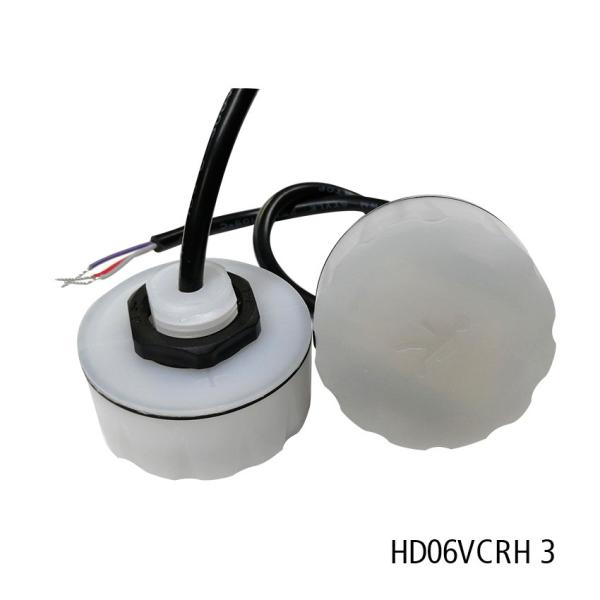

12VDC Microwave Highbay Sensor Dimming Function For UFO Highbay Light
12VDC Microwave Highbay Sensor Dimming Function For UFO Highbay Light
12VDC Microwave Highbay Sensor Dimming Function For UFO Highbay Light
12VDC Microwave Highbay Sensor Dimming Function For UFO Highbay Light
Specifications
Brand Name :
HAISEN
Model Number :
HD06VCRH 3
Certification :
CE
Place of Origin :
China
MOQ :
120pcs/CTN
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Delivery Time :
Standard Models Within 3 Weeks
Packaging Details :
Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Color :
White or Black
Power :
12VDC
Function :
0-10V Dimming
Programming :
Remote Control
Description

Hot Item 12VDC Microwave Highbay Sensor Dimming Function For UFO Highbay Light

Specification

  • 12VDC Input
  • 0-10V Dimming
  • Easy Wiring Connection
  • Remote Control HD03R
  • Small Size for UFO and other Applications

Parameter Table

Operating voltage 10.5-15V DC
Operating Current 30mA±5%
Stand-by power ≤0.5W
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Mounting height Max.15m ( 49.21ft )
Detection range Max.ø14m/45.93ft
Detection angle 30°-150°
Operating temperature -20°C~+60°C
IP rating IP65
Life time 50,000 hours
Warranty 5 years

Factory Default Setting

  • Detection area 100%
  • Hold time 5s
  • Daylight threshold Disable
  • Stand-by period 0s
  • Stand-by dimming level 10%.

Remote Control

#HD03R, the standard remote control

Specification download: HD03R .pdf

Performance

* Daylight Threshold

With sufficient daylight, even when motion detected, light remains OFF.

* Photocell Function

With insufficient daylight, sensor turns ON light even there's motion detected

During the infinite standby period, the sensor turns OFF the light automatically when it's DARK enough.

Preconditions

  • Daylight threshold as 30Lux or higher, options are 50lux, 80lux or 120lux.
  • Standby dimming level as 10% 20% or 30%
  • Standby period as infinite+∞

* Bi-Level Dim

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

After holdtime, sensor dims light to standby dimming level (10% 20% 30% 50%) and keeps for a standby period.

After standby period,sensors turns OFF the light.

* ON/OFF

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

Preset standby period as 0S, sensor turns OFF the light after holdtime.

HD06VCRH 3.pdf
