Field Installation Emergency Converter 325VA Transformer-A Type
Field Installation Emergency Converter 325VA Transformer-A Type
Specifications
Brand Name :
HAISEN
Model Number :
ES-TB325-01
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Delivery Time :
Standard Models Within 3 Weeks
Packaging Details :
Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Color :
light yellow
Products :
LED Emergency Driver
Battery :
Lithium
Input voltage :
100-347VAC,50/60Hz
OUTPUT VOLTAGE :
208Vac @ 480Vac / 150Vac @ 347Vac / 120Vac @ 277Vac
Warranty :
5 years warranty
Description

325VA Transformer-A Type Emergency Converter For Feild Installation

Description

  • 325VA Transformer-A Type
  • INPUT VOLTAGE: 480Vac±10% / 347Vac ±10% / 277Vac ±10%
  • OUTPUT VOLTAGE: 208Vac @ 480Vac / 150Vac @ 347Vac / 120Vac @ 277Vac
  • Safety standard:UL 5085-3 listed,for feild installation
  • Warranty:5 years warranty


ELECTRICAL SPECIFICATIONS

Parameter
Symbol
Conditions
USA
CA
USA
Input Voltage
V Input
 480 347 277 V
Output Voltage
V Output
Infliction Rated Voltage
 208 150 120 V
Input Current
A Input
Infliction Rated Voltage
 0.75 A
Output Current
A Output
Infliction Rated Voltage
 1.56 A
Output Watts
VA Output
Infliction Rated Voltage
 325 240 185 VA
Power Factor
PF
Nominal
 0.96
THD(Primary Lamp Type)
Infliction Rated Voltage
 10 %
2nd Harmonic
Rated Voltage / Frequency
 2 %
3nd Harmonic
Rated Voltage / Frequency
 30 %
5nd Harmonic
Rated Voltage / Frequency
 10 %
7nd Harmonic
Rated Voltage / Frequency
 7 %
9nd Harmonic
Rated Voltage / Frequency
 5 %
Temperature Rise Of Ballast Winding
Rated Voltage / Frequency
 55 K
Max Casing Temperature
Faulty Status
 105 C
14AWG Lead Lengths
 200 210 220 MM

*EMI Shall Comply To GB17625-1-2003 ** Current power factory

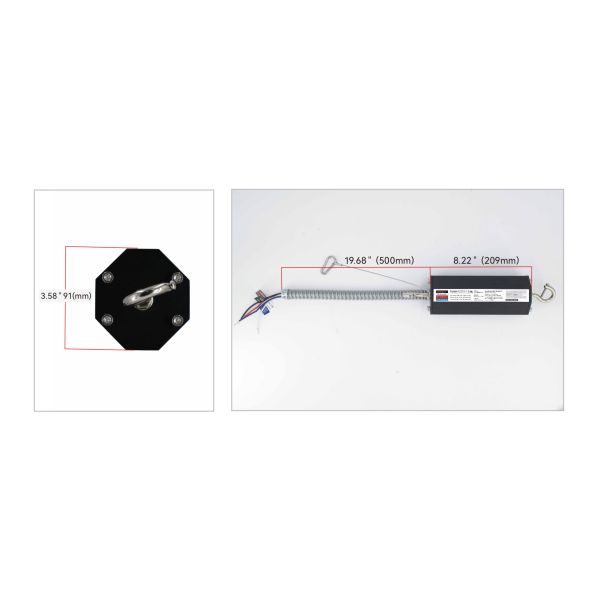

DIMENSION

Field Installation Emergency Converter 325VA Transformer-A Type

INSTALLING & WIRING

Turn off the AC power before installing

Assembling the transformer with the Safety Rope with the chain link connector

Select the appropriate wiring diagram to connect the transformer to the AC driver.

ES-TB325-01.pdf
