WR75 Waveguide Directional Coupler 15.0GHz 40dB High Power
WR75 Waveguide Directional Coupler 15.0GHz 40dB High Power
Specifications
Model Number :
75WC2S-40
Frequency Range :
10.0-15.0GHz
coupling :
40dB
Directivy :
30dB
Waveguide port :
WR75
Flange :
FBP120(Compatible With UBR120)
Brand Name :
Zysen
MOQ :
1pc
Place of Origin :
Chengdu,China
Delivery Time :
2-4 Weeks
Price :
Negotiable
Payment Terms :
T/T, L/C,D/A
Certification :
ISO9001
Description

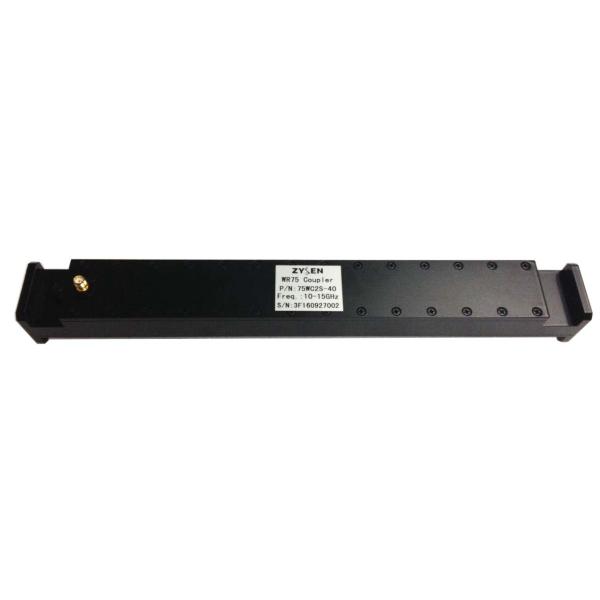

WR75 40dB Waveguide Directional Coupler(Coupling port SMA, 2 waveguide in/out ports)

Waveguide Directional Coupler,high directivity with wide operating frequency range. Can be three waveguide ports or with one coxial connection. Contact us with your requirement.

Standard black paint, others colour is available. flange is compatible with EIA Standard and IEC Standard, check details with us.

WG Size P/N

FrequencyRange

(GHz)

 Freq.
Sensitivity
(dB)		 VSWR
Main
Line		 VSWR
Second
Line

Coupling

(dB)

 Coupling
Accuracy
(dB)		 Directivity
(dB)		 Flange Type
WR284 284WDC3-XX 2.60-3.95 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FDP32/FDM32
WR229 229WDC3-XX 3.30-4.90 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FDP40/FDM40
WR187 187WDC3-XX 3.95-5.85 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FDP48/FDM48
WR159 159WDC3-XX 4.90-7.05 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FDP58/FDM58
WR137 137WDC3-XX 5.85-8.20 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FDP70/FDM70
WR112 112WDC3-XX 7.05-10.0 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FBP84/FBM84
WR90 90WDC3-XX 8.20-12.4 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FBP100/FBM100
WR75 75WDC3-XX 10.0-15.0 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FBP120/FBM120
WR62 62WDC3-XX 12.4-18.0 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FBP140/FBM140
WR51 51WDC3-XX 15.0-22.0 ±0.7 1.10 1.25 3/6/10/20/30 ±0.7 30 FBP180/FBM180
WR42 42WDC3-XX 18.0-26.5 ±0.9 1.15 1.30 3/6/10/20/30 ±1.0 30 FBP220/FBM220
WR34 34WDC3-XX 22.0-33.0 ±0.9 1.15 1.50 3/6/10/20/30 ±1.0 30 FBP260/FBM260
WR28 28WDC3-XX 26.5-40.0 ±0.9 1.15 1.50 3/6/10/20/30 ±1.0 30 FBP320/FBM320
WR22 22WDC3-XX 33.0-50.0 ±0.9 1.15 1.50 10/20/30 ±1.3 20 FUGP400
WR19 19WDC3XX 40.0-60.0 ±0.9 1.15 1.50 10/20/30 ±1.3 20 FUGP500
WR15 15WDC3-XX 50.0-75.0 ±0.9 1.20 1.50 10/20/30 ±1.3 20 FUGP620
WR12 12WDC3-XX 60.0-90.0 ±0.9 1.20 1.50 10/20/30 ±1.3 20 FUGP740
WR10 10WDC3-XX 75.0-110.0 ±1.0 1.20 1.50 10/15/20 ±1.5 35 FUGP900
