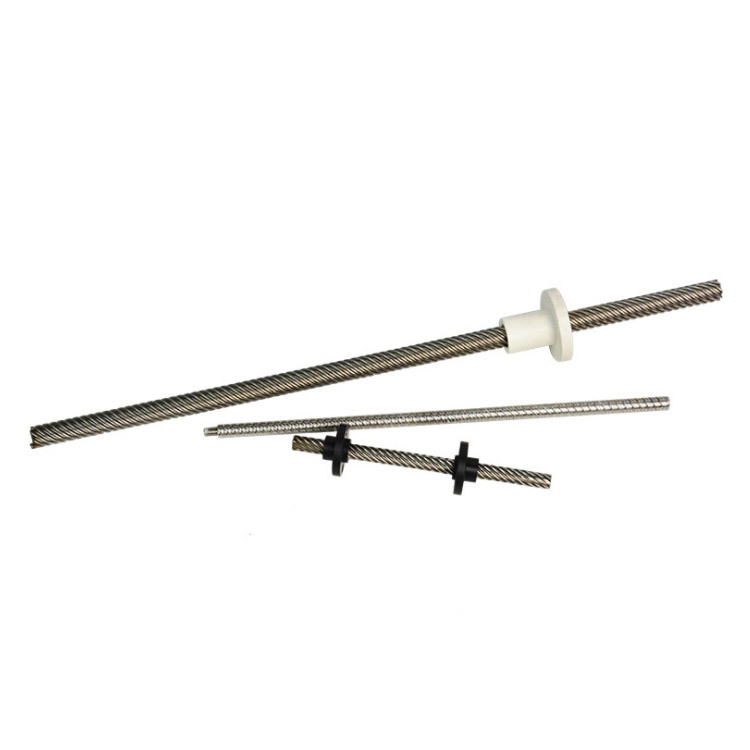

T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment
Specifications
Brand Name :
WEIGU
Model Number :
T8
Certification :
RoHS
Place of Origin :
China (Mainland)
MOQ :
1 Unit
Price :
$6- $12 / Units
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000Units per month
Delivery Time :
15-30 work days
Packaging Details :
Standard export package, or can be customized
Product Number :
TR8
Screw Outer Diameter :
8mm
Material Grade :
A
Head Type :
Full Tooth
Description

Wear-Resistant Threaded T Head Lead Screw & Nut for Automated Equipment

Our trapezoidal screws meet national standard JB/T 2886-2008. Machined threaded raceways come in diameters φ2~14mm and leads 1~14mm, ensuring tight control over thread accuracy. They work reliably in precision instruments and automated gear, reducing jams, wear, and extending equipment life.​Versatile Materials for Every Need​
Lead screws use YF45Mnr alloy steel (heat-treated to HRC58~62 for strength and durability). We also offer 45# steel or 304 stainless steel for harsh environments.​
Nuts come in tin bronze, aluminum bronze, brass, cast iron, or stainless steel: Tin bronze nuts self-lubricate for low maintenance; stainless steel suits clean settings like food or medical fields.​
Full Customization for Unique Needs​
Beyond standard right-hand screws, we make left-hand or left-right combined threads for two-way gear (e.g., lifts, bending machines). Customize materials, sizes, threads, or finishes—small batches or special designs welcome. Contact us for a perfect fit.
​

Mechanical Dimension:MM

T Head Stepper Motor Accessories TR8 Full Tooth Threaded Lead Screw For Automated Equipment

Diameter 8MM Currently there are 6 pitches 1MM lead 1MM pitch 2MM lead 2MM 4MM 8MM 12MM 14mm
Leading 1mm-14mm matching nut is all copper nut. Screw is stainless steel 304 wire
There are six specifications for the lead of the screw: 1mm 2mm 4mm 8mm 12mm 14mm. The lead is the distance that the nut moves one turn. After you take the order, please note the lead you want. I will use the specifications of your remarks. Ship

About the trapezoidal screw and nut related instructions
Screw material 45# 40Cr YF45MnV SUS304 SUS316 etc
Nut material Phosphor bronze,Zinc tin bronze,Aluminum zinc bronze
Brass,Ductile iron,stainless steel ,Nylon
Accuracy level 7 level 8 level 9 level
Processing method Cutting processing Roller extrusion
Processing range single head, multiple heads, various tooth types
Sweeping direction left-handed right-handed

Srew Datasheet

No. Spec model Outer dia Lead Thread No. Tooth distance Outer dia
1 Tr3.5*1-N1-RH 3.5 1 1 1 3.5 3.475
2 Tr3.5*0.6096-N1-RH 3.5 0.6096 1 0.6096 3.5 3.475
3 Tr3.5*2.4384-N2-RH 3.5 2.4384 2 1.2192 3.5 3.475
4 Tr4-RH 4 4 3.975
5 Tr5*1-N1-RH 5 1 1 1 5 4.975
6 Tr5*2-N2-RH 5 2 2 1 5 4.975
7 Tr5*4-N4-RH 5 4 4 1 5 4.975
8 Tr5*6-N6-RH 5 6 6 1 5 4.975
9 Tr6*1-N1-RH 6 1 1 1 6 5.975
10 Tr6*2-N2-RH 6 2 2 1 6 5.975
11 Tr6*4-N4-RH 6 4 4 1 6 5.975
12 Tr6*6-N6-RH 6 6 6 1 6 5.975
13 Tr6*12-N6-RH 6 12 6 2 6 5.975
14 Tr6*12-N12-RH 6 12 12 1 6 5.975
15 Tr8*1-N1-RH 8 1 1 1 8 7.975
16 Tr8*3-N2-RH 8 3 2 1.5 8 7.975
17 Tr8*2-N1-RH 8 2 1 2 8 7.975
18 Tr8*4-N2-RH 8 4 2 2 8 7.975
19 Tr8*8-N4-RH 8 8 4 2 8 7.975
20 Tr8*10-N5-RH 8 10 5 2 8 7.975
21 Tr8*12-N6-RH 8 12 6 2 8 7.975
22 Tr8*14-N7-RH 8 14 7 2 8 7.975
23 Tr8*16-N -RH 8 2 8 7.975
24 Tr8*20-N -RH 8 2 8 7.975
25 Tr9*24-N24-RH 9 24 24 1 9 8.975
26 Tr10*1-N1-RH 10 1 1 1 10 9.975
27 Tr10*1-N2-RH 10 1 10 9.975
28 Tr10*2-N1-RH 10 2 1 2 10 9.975
29 Tr10*3-N2-RH 10 3 2 1.5 10 9.975
30 Tr10*4-N2-RH 10 4 2 2 10 9.975
31 Tr10*8-N4-RH 10 8 4 2 10 9.975
32 Tr10*10-N5-RH 10 10 5 2 10 9.975
33 Tr10*12-N6-RH 10 12 6 2 10 9.975
34 Tr10*14-N -RH 10 2 10 9.975
35 Tr10*20-N -RH 10 2 10 9.975
36 Tr12*2-N1-RH 12 2 1 2 12 11.975
37 Tr12*3-N1-RH 12 3 1 3 12 11.975
38 Tr12*8-N4-RH 12 8 4 2 12 11.975
39 Tr12*4-N -RH 12 2 12 11.975
40 Tr12*12-N -RH 12 2 12 11.975
41 Tr12*10-N4-RH 12 10 4 2.5 12 11.975
42 Tr12.7*12.7-N5-RH 12 12.7 5 2.54 12 11.975
43 Tr14*3-N -RH 14 3 14 13.975
44 Tr14*4-N -RH 14 4 14 13.975
