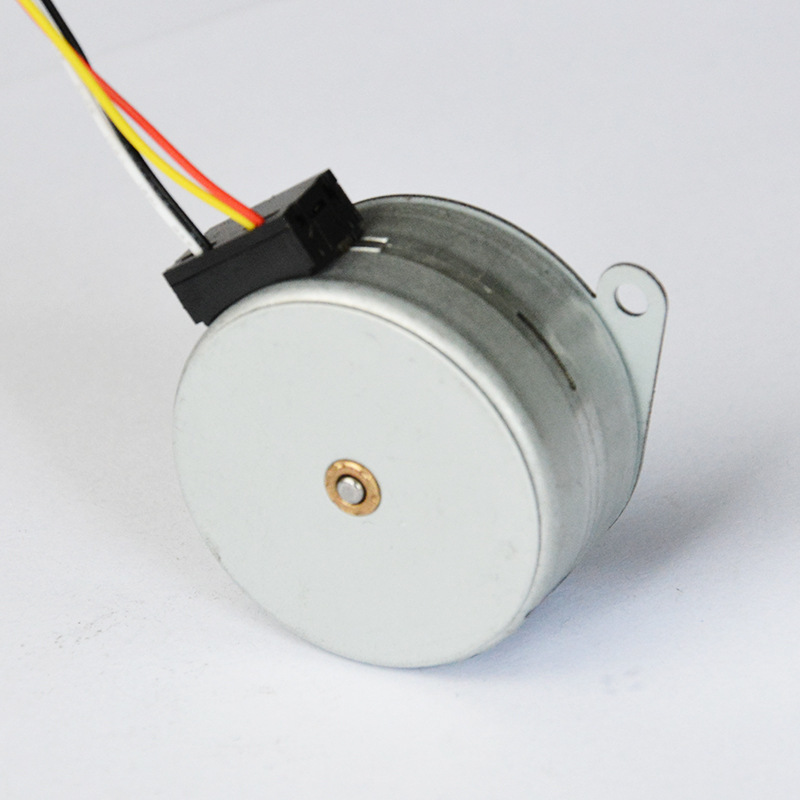

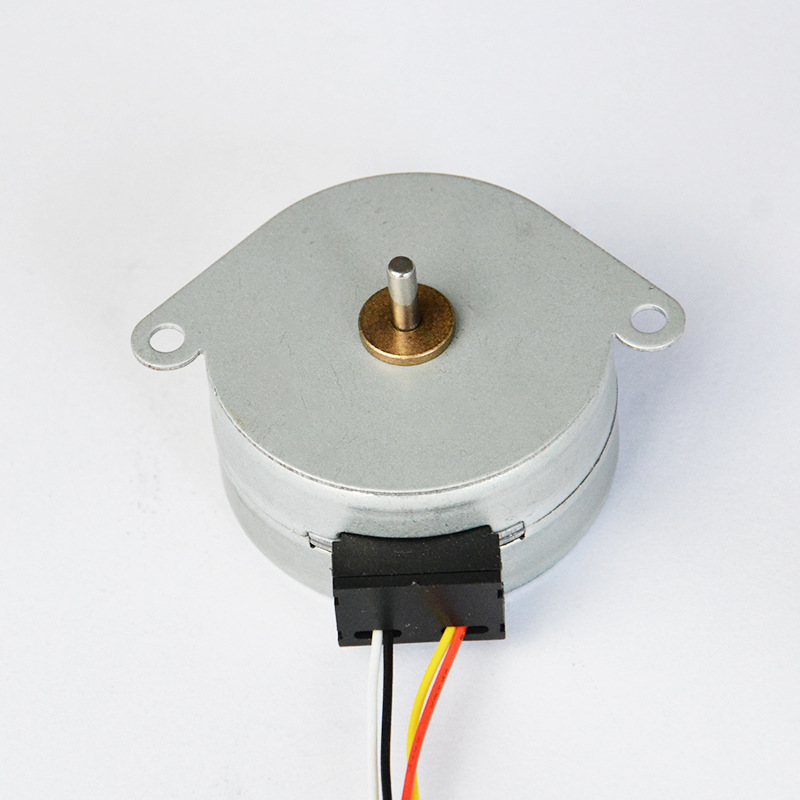

24V 42mm Stepper Motor 7.5° Step Angle For CNC Robotics And OEM Applications
24V 42mm Stepper Motor 7.5° Step Angle For CNC Robotics And OEM Applications
24V 42mm Stepper Motor 7.5° Step Angle For CNC Robotics And OEM Applications
24V 42mm Stepper Motor 7.5° Step Angle For CNC Robotics And OEM Applications
Specifications
Brand Name :
WEIGU
Model Number :
42BY412
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$2~5/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
permanent magnet stepper motor
Rated Voltage :
5-24V
Step Angle :
7.5°
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

24V 42mm Stepper Motor 7.5° Step Angle Ideal for CNC, Robotics & OEM Applications

Our 42BY412 permanent magnet stepper motor delivers exceptional motion control with a 7.5° step angle and 42mm diameter, ensuring high torque, smooth rotation, and minimal positioning error. Manufactured using precision molds, this motor outperforms competitors with enhanced efficiency, stability, and durability—ideal for:

  • Medical equipment (surgical tools, diagnostic devices)

  • Automation systems (robotics, CNC machines)

  • Security & access control (automatic door locks, smart gates)

  • Industrial OEM applications requiring compact, reliable motion.

Key Features & Benefits

✔ Robust Construction – Metal casing with eco-friendly plating resists corrosion, suitable for harsh environments.
✔ Customizable Input Options – Standard light indicator, with FPC cable, PCB terminal, or other connectors available upon request.
✔ Integrated Drive Solutions – Pair with our matched drive systems for plug-and-play performance.
✔ Compact & Efficient – Just 23mm thick for space-constrained designs without sacrificing power.

Why Choose This Stepper Motor?

  • 10+ Years of Micro Motor Expertise – Tailored designs to meet your exact specs (voltage, torque, wiring).

  • Proven Reliability – Precision-molded components ensure long service life and consistent operation.

    • Global Compliance – Environmentally friendly materials meet international standards.

  • Request a Custom Solution Today!
    Contact us for OEM pricing, technical specs (datasheet), or custom motor-drive bundles.

Customer needs is the direction of our efforts, please feel free to contact!

Specifications

Product Name

42 mm permanent magnet stepper motor

Model

42BY412

Rated Voltage

24 V DC

Coil Resistance

4.7 Ω ± 7%/phase 25℃

No. Of phase

2 Phases

Step Angle

7.5 degree

Pull-in frequency

600Hz

Pull frequency

700 Hz

Pull out torque

53.9mN.m(300Hz)

Holding torque

70mN.m

Self-positioning torque

8mN.m(REF)

inductance

22mH/phase(REF)

Excitation method

2-2phase

Insulation withstand voltage

No breakdown or flying fox

Insulation dielectric strength

Above 100MΩ DC500V

noise

No abnormal sound

Mechanical Dimension:MM
