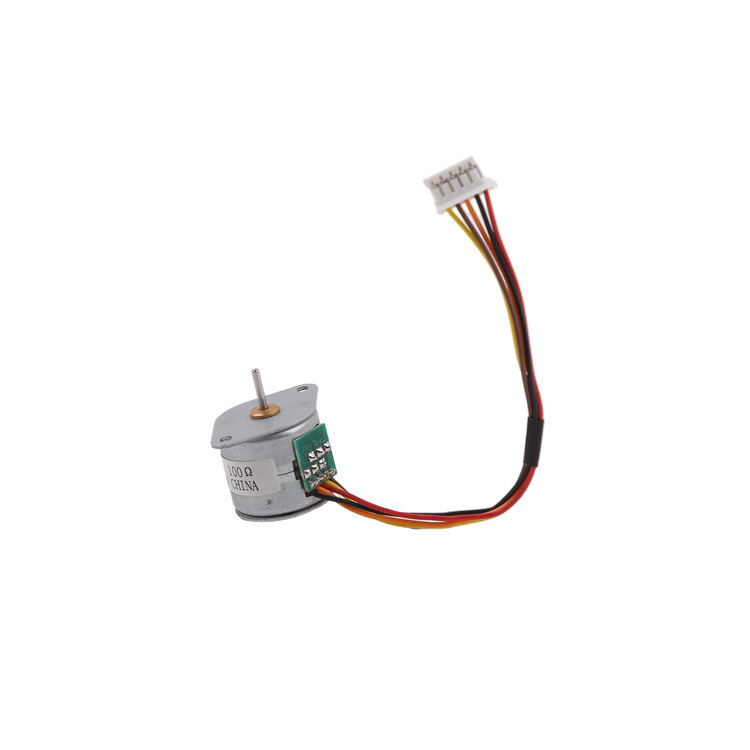

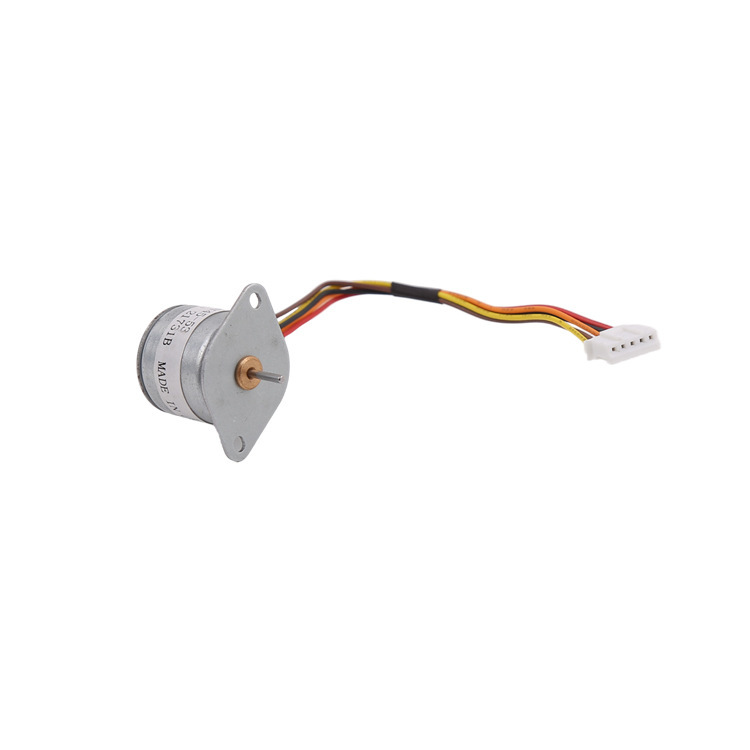

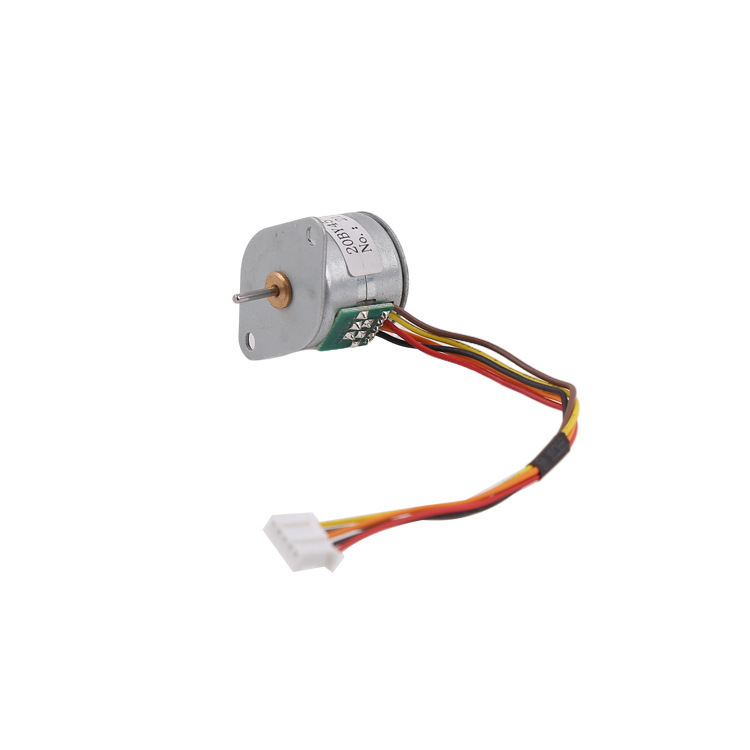

20BY45 Permanent Magnet Stepper Motor 12V Stepper Motor 18° Step Angle For Instruments Or Printers
20BY45 Permanent Magnet Stepper Motor 12V Stepper Motor 18° Step Angle For Instruments Or Printers
20BY45 Permanent Magnet Stepper Motor 12V Stepper Motor 18° Step Angle For Instruments Or Printers
20BY45 Permanent Magnet Stepper Motor 12V Stepper Motor 18° Step Angle For Instruments Or Printers
20BY45 Permanent Magnet Stepper Motor 12V Stepper Motor 18° Step Angle For Instruments Or Printers
20BY45 Permanent Magnet Stepper Motor 12V Stepper Motor 18° Step Angle For Instruments Or Printers
Specifications
Brand Name :
WEIGU
Model Number :
20BY45
Certification :
RoHS
Place of Origin :
China
MOQ :
1
Price :
$1-$3/unit
Payment Terms :
T/T,Western Union,MoneyGram,D/P
Supply Ability :
1000000units/year
Delivery Time :
15-30 work days
Packaging Details :
Single item plastic box inner , outer paper box Package
Type :
Permanent Magnet Stepper Motor
Step Angle :
18°
Voltage :
12V
Phase :
2
Resistance :
100 Ω
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

20BY45 12V Permanent Magnet Stepper Motor (20mm OD) – 18° Step Angle for Precision Optical Instruments & Printers

This 20mm stepper motor, boasting an 18° step angle, is built to excel. Thanks to precision - molded parts, it delivers smoother rotation, lower positioning torque, and higher efficiency than similar products—advantages you’ll feel in every operation.​

Eco - friendly plating on all metal components ensures both a sleek appearance and the ability to withstand harsh conditions, proving that durability and aesthetics can go hand in hand.​
It finds its home in precision medical equipment and automatic door locks, and its input is far from fixed: switch from the standard light - type to FPC cables, PCBs, or other forms with ease. We also offer complete drive system integration.​
With over 10 years in micro - motor design, development, and production, our team thrives on creating custom solutions for your specific requirements.

Customer needs is the direction of our efforts, please feel free to contact!

Specifications

Product Name 20 mm permanent magnet stepper motor
Model 20BY45
Rated Voltage 12V DC
Coil Resistance 100 Ω ± 7%/phase 25℃
No. Of phase 2 Phases
Step Angle 18 degree
Pull-in frequency 700Hz
Pull frequency 1000 Hz
Pull out torque 2.35nN.m
Holding torque 5.29mN.m
Self-positioning torque 1.18mN.m(REF)
inductance 22mH/phase(REF)
Excitation method 2-2phase
Insulation withstand voltage No breakdown or flying fox
Insulation dielectric strength Above 100MΩ DC500V
noise No abnormal sound

Mechanical Dimension:MM
