Specifications
Brand Name :
PCWINMAX
Model Number :
H110
Certification :
CE FCC
Place of Origin :
China
MOQ :
2
Price :
45.99~55$
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 piece 5days
Delivery Time :
3~7 work days
Ports :
wifi, SATA, DVI, PCI-Express X16, USB 2.0, M.2, USB 3
CPU Type :
Core I7/Core I5/Core I3/Pentium/Celeron
Maximum Ram Capacity :
32 GB
Application :
Desktop/home/workstation
Chipset Manufacturer :
Intel
Socket Type :
Socket 1151
Form Factor :
Micro ATX
Memory Type :
DDR4
Graphics Card Type :
Integrated-need CPU support
Hard Drive Interface :
SATA
Description

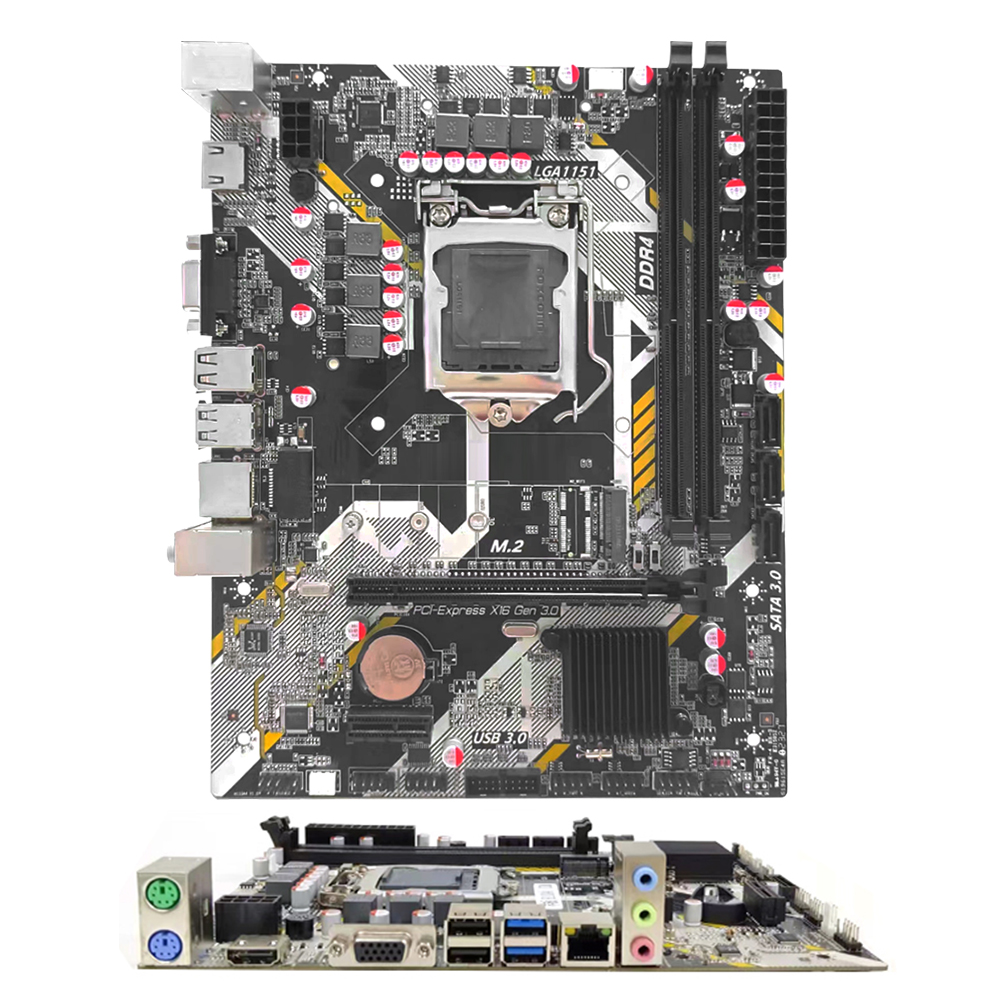

PCWINMAX New H110A Socket 1151 GDDR4 Max 64GB Micro ATX Original H110 Chipset Desktop Motherboard Support 6/7/8/9 Gen Processors


Description:

The H110A Socket 1151 DDR4 Max 64GB Micro ATX motherboard is a versatile and reliable solution for building office PCs, home systems, or light gaming rigs. Supporting Intel 6th to 9th generation processors, it provides a stable platform for a wide range of applications. With support for up to 64GB of DDR4 memory, this motherboard ensures smooth multitasking and efficient performance for demanding tasks. Its Micro ATX form factor makes it compatible with compact cases while maintaining essential connectivity options, including multiple PCIe slots and storage interfaces.


Features:

1. Socket 1151: Compatible with Intel 6th to 9th generation processors
2. DDR4 Memory Support: Up to 64GB for multitasking and high-performance applications
3. Micro ATX Form Factor: Ideal for compact PC builds without sacrificing features
4. Multiple PCIe Slots: Supports graphics cards, sound cards, and other expansion devices
5. Storage Options: Supports SATA and M.2 drives for fast storage performance
6. Integrated Audio and Ethernet: Provides HD audio and reliable network connectivity
7. Power-Efficient Design: Delivers stable performance while minimizing energy consumption


Parameter:

Processor (CPU)

Support for Inte® Core™ i7 processors/Inte® Core™ i5 processors/ Inte® Core™ i3 processors

/Inte® Pentium® processors/Intel® Celeron® processors in the LGA1151 package.

L3 cache varies with CPU.

Chipset
Inte® H110 Express Chipset
Memory

2 x 1.35V DDR4 DIMM Sockets Supporting up to 64 GB of System Memory,

Support for DDR4 2133/2400 MHz Memory Modules.

Slots

- 1 * PCI Express x16 Slot

- 1 * PCI Express x1 Slot
- 1 * PCI Slot

Storage
- 4 * Serial ATA 3.0 devices
Internal I/O Connectors

- 1 * 24-pin ATX Power Connector

- 1 * 4-pin ATX 12V Power Connector

- 2 * USB Connector Support Additional 4 USB Ports

- 1 * LPC_DEBUG Connector

- 1 * Front Panel Audio Connector

- 1 * System Panel Connector

Back Panel I/O Ports

- 1 * PS/2 Mouse & Keyboard

- 1 * VGA

- 1 * HD

- 1 * LPT

- 2 * USB 3.0 and 2* USB 2.0

- 1 * LAN Port (RJ45)

- 3 * Audio Jacks

LAN
Realtek® GbE LAN Chip (10/100/1000 Mbit)
Audio
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
Form Factor
- Micro ATX (225*175 mm)
Accessories

- User Manual

- Drive CD

- I/O Panel


PCWINMAX New H110A Socket 1151 GDDR4 Max 64GB Micro ATX Original H110 Chipset Desktop Motherboard Support 6/7/8/9 Gen Processors
