Specifications
Place of Origin :
Shanghai
Brand Name :
Clirik
Packaging Details :
wooden box
Supply Ability :
15 Set/Sets per Month
Price :
$450,000.00/sets 1-4 sets
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
PLC, Engine
Condition :
New
Type :
vertical roller mill
Motor Type :
AC Motor
Capacity(t/h) :
3-18
Dimension(L*W*H) :
Customized
Weight :
2500 KG
Description
Dolomite Ultra Fine Powder Making Machine Plant CLUM VRM Vertical Roller Coal Mill
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill
Product Description
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill

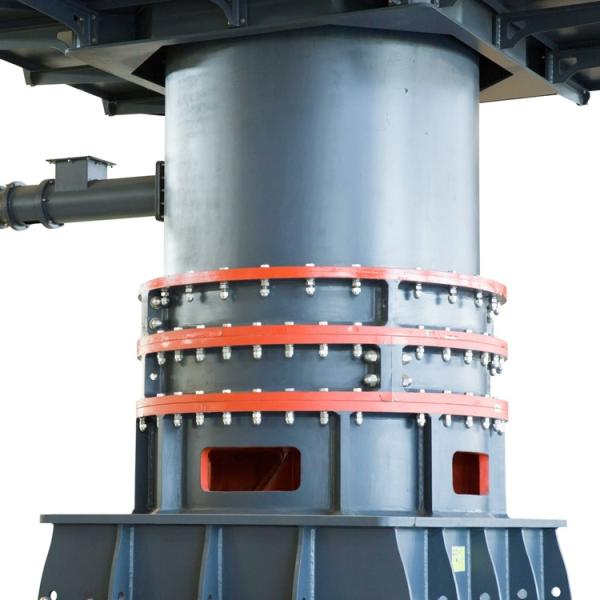

CLUM Ultra Fine Vertical Roller Mill
CLUM series vertical roller mill on the basis of introducing the vertical roller mill technology from Taiwan and Germany, which integrates the functions of grinding, classifying, conveying, secondary classifying, and packing progress into one machine.
It powder fineness can reach 400-3000 mesh. The CLUM vertical roller mill breaks through the bottleneck of low capacity mentioned herein. Over 5 years' development, more than 30 ultra fine powder production lines have been installed worldwide.
CLUM vertical roller mill can provide high-end ultra fine fillers powder for paper making, coating materials, plastics, rubber, PVC, printing ink and other many industry.
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill
CLUM Ultra Fine Vertical Roller Mill Features
Model
CLUM1425
CLUM1632
CLUM1736
Plate Diameters (mm)
1400
1600
1700
Number of rollers (pieces)
3
3
3
Number of classifier (pieces)
6
6
8
Powder of classifier (Kw)
6*15
6*22
8*22
Main unit powder (Kw)
220-250
315-355
355-410
Blower powder (Kw)
180-200
250-280
325-355
Feed size (mm)
<10
<10
<10
Moisture of feeding materials
<3%
<3%
<3%
Less than 2 um=30% output (t/h)
9-12
12-16
14-18
Less than 2 um=45% output (t/h)
5.5-7.5
7-9
10-12
Less than 2 um=60% output (t/h)
3-4
/
/
Test Material: based on calcite
Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments.
CLUM1425 Ultra Fine Vertical Roller Mill Production Parameters
Output (t/h)
10.0-12.0
7.5-9.5
6.0-8.0
4.5-6.5
3.0-4.0
specific surface area (cm²/g)
11000±500
13500±500
15000±500
17000±500
19000±500
325 mesh remaining amount(%)
0.015
0.015
0.01
0
0
Less than 2 um powder content (%)
30
40
45
50
60
Median particle diameter D50 (um)
5.2
3.0
2.5
2.0
1.4
General name (mesh)
600
800
1250
2000
2500
Particle size distribution D97 (um)
30
25
20
15
9
Particle size cut point D100 (um)
80
48
38
28
18
Moisture content (%)
<0.3%
<0.3%
<0.3%
<0.3%
<0.3%
Energy consumption (Kw/T)
38-40
40-50
47-53
50-53
110-125
CLUM1632 Ultra Fine Vertical Roller Mill Production Parameters
Output (t/h)
12.5-14.5
9.5-11.5
7.5-9.5
6.0-8.0
specific surface area (cm²/g)
11000±500
13500±500
15000±500
17000±500
325 mesh remaining amount(%)
0.015
0.015
0.01
0
Less than 2 um powder content (%)
30
40
45
50
Median particle diameter D50 (um)
5.2
3.0
2.5
2.0
General name (mesh)
600
800
1250
2000
Particle size distribution D97 (um)
30
25
20
15
Particle size cut point D100 (um)
80
48
38
28
Moisture content (%)
<0.3%
<0.3%
<0.3%
<0.3%
Energy consumption (Kw/T)
38-40
40-50
47-53
50-53
CLUM1736 Ultra Fine Vertical Roller Mill Production Parameters
Output (t/h)
15.0-18.0
11.5-135.
9.0-11.0
specific surface area (cm²/g)
11000±500
13500±500
15000±500
325 mesh remaining amount(%)
0.015
0.015
0.01
Less than 2 um powder content (%)
30
40
45
Median particle diameter D50 (um)
5.2
3.0
2.5
General name (mesh)
600
800
1250
Particle size distribution D97 (um)
30
25
20
Particle size cut point D100 (um)
80
48
38
Moisture content (%)
<0.3%
<0.3%
<0.3%
Energy consumption (Kw/T)
38-40
40-50
47-53
------------------------------------------------------------------------------------Test Standard------------------------------------------------------------------------------------
Material: Base on calcite
Particle Size Distribution: Measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments.
The Specific Surface Area: Converted from the average particle diameter, the unit is relative area of 1g powder.
325 Mesh Remaining Amount: A wet process is used to filter 1000g of the sample on a 325 mesh, to calculate the percentage.
Median Particle Diameter: The median particle size is obtained by particle size distribution.
Moisture Content: The 5g sample is placed on the moisture analyzer, and the measurement tested at 150 centigrade for 6 minutes.
Advantages of CLUM Ultra Fine Vertical Roller Mill
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill

Advanced Technology, Reliable Equipment

A. Special grinding curves of grinding roller and grinding disc ensure stable and efficient operation of host machine.
B. Grinding roller takes mechanical position limiter, directly avoiding touching grinding disc. Therefore, destructive collision and violent shocks are avoided.
C. Special sealing design prevents dust from entering the inside of bearing to keep long-term operation of grinding roller.
D. The high-efficiency powder concentrator can freely adjust the particle sizes and ensure the accurate cutting point and
reproducibility of products.
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill

Better Finished Products, Higher Profits

A. Fineness of finished products can be adjusted flexibly. Primary powder production can reach D97=10μm-20μm while the next powder separation attains D97=4-5μm easily. Finished products have advantages of high content of fine powder, high whiteness and more compact granularity.

B. Lingering time of materials in grinding cavity is short. The components and fineness of finished products can be measured and collected quickly, keeping stable quality of finished products.
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill

Smooth Operation, Lower Costs

A. Grinding roller grinds the materials directly. Its energy consumption is 10% lower than other types roller mill and 25-60% lower than that of ball mill.
B. No direct touch between grinding roller and disc and the special wearable alloy materials used in grinding roller shell and lining plates grant a long life expectancy of mill and save the costs on quick-wear parts.
C. Automatic control systems like PLC, DCS and Central Control System can be used to operate machines remotely, saving labor force.
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill

Eco-friendly Design, Higher Standards

A. Because of no touch between grinding roller and disc, there is no clang and slight vibration. The noise is 20-25 decibel lower than that of ball mill.

B. The whole set of system is fully sealed and operates with negative pressure. Besides, it is equipped with pulse dust collector so the exhaust emission completely meets related national standards.
Certification of CLUM Ultra Fine Vertical Roller Mill
EU CE certification
The most concerned product certification
ISO9001 certification
Heavy contract and credit certification
High and new technology enterprise certification
BV, SGS certification....
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill

Application of CLUM Ultra Fine Vertical Roller Mill

CLUM ultra fine vertical roller mill can be widely applied in the industries of chemicals,metallurgy, non-metallic ores etc.
In particular, it is outstanding in processing white superfine non-metallic ore powders, providing superior quality fillers and
additives for paper making,coating materials, plastics, rubber, PVC, printing ink etc.
The CLUM mill can be extensively used to process superfine dry powder of non-mental materials such as calcite, marble,limestone, dolomite, barite, talc, kaolin, wollastonite, gypsum, feldspar, pyrophyllite etc.
Dolomite Ultra Fine Powder Making Machine , CLUM VRM Vertical Roller Coal Mill
