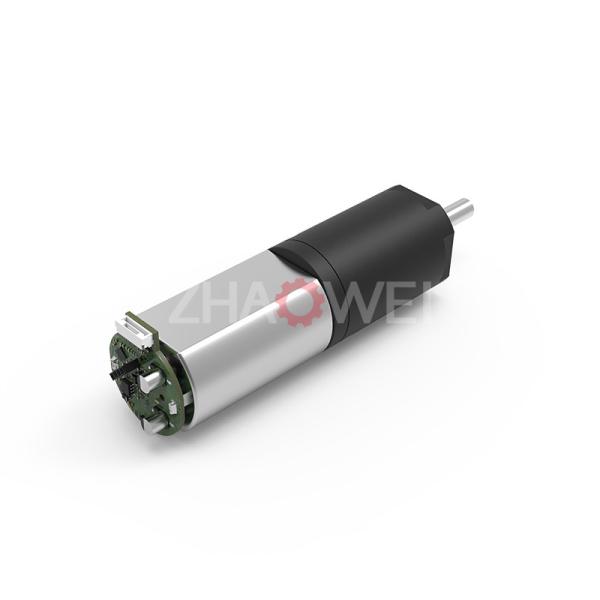

TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care
TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care
TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care
TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care
TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care
TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care
Specifications
Brand Name :
Zhaowei
Model Number :
ZWBPD010010
Certification :
ROHS/ISO9001/ISO14001/SGS/TS16949
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
5 000 pcs per day
Delivery Time :
15 working days after payment
Packaging Details :
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Diameter :
10mm or customized
Name :
Planetary Brushless Gear Motor
Motor type :
coreless motor/ stepper motor
Gearbox type :
planetary
Voltage :
3V 6VDC (custom)
Description

High Efficiency Low Noise Planetary brushless gear motor , DC 3.0V geared electric motor For Personal Care


Gearbox Specifications:

Bearing Porous bearing Rolling bearing
Axial Endplay ≤0.3mm ≤0.2mm
Radial Loading on Output Shaft ≤1N ≤7N
Operating Temperature -20℃ ~ +85℃

Parameters:

Gearbox Stages 1 2 3 4
Reduction Ratio 3/5 13/19/28 46/69/102/151 168/249/368/546/809
Max Rated Torque (gf.cm max) 500 500 500 500
Max Instant Torque (gf.cm max) 1000 1000 1000 1000
Gearbox Efficiency (%) 85 73 65 58
Length (mm) 9.7 12.8 15.9 19.0

Drawing:

TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care

Motor Specifications:

Motors (Optional) Brushed DC motor, Coreless motor, Stepper motor
Voltage (Optional) 3-24V
Input Speed ≤30000rpm
Current 150mA max

Performance Data:

Model Rated Speed Max Speed Max Rated Torque Max Instant Torque Reduction Ratio Length Overall Length
rpm rpm gf.cm gf.cm mm mm
ZWBPD010010-3 3917 7500 500 1000 3 9.7 24.7
ZWBPD010010-5 2645 5000 500 1000 5 9.7 27.7
ZWBPD010010-13 1085 2308 500 1000 13 12.8 27.8
ZWBPD010010-19 742 1579 500 1000 19 12.8 27.8
ZWBPD010010-28 504 1071 500 1000 28 12.8 27.8
ZWBPD010010-46 307 652 500 1000 46 15.9 30.9
ZWBPD010010-69 204 435 500 1000 69 15.9 30.9
ZWBPD010010-102 138 294 500 1000 102 15.9 30.9
ZWBPD010010-151 93 199 500 1000 151 15.9 30.9
ZWBPD010010-168 84 179 500 1000 168 19.0 34.0
ZWBPD010010-249 57 120 500 1000 249 19.0 34.0
ZWBPD010010-368 38 82 500 1000 368 19.0 34.0
ZWBPD010010-546 26 55 500 1000 546 19.0 34.0
ZWBPD010010-809 17 37 500 1000 809 19.0 34.0

above specifications just for reference and customizable according to requirements.

Please let us know your requirements and we will provide you with micro transmission solutions.

Quality Control

  • Reliability Test

    * Noise Test

    * Water-proof Test

    * Life Test

    * Impact Test

    * Storage Test

    * Salt Spray Test

    * Environmental Related Substance.

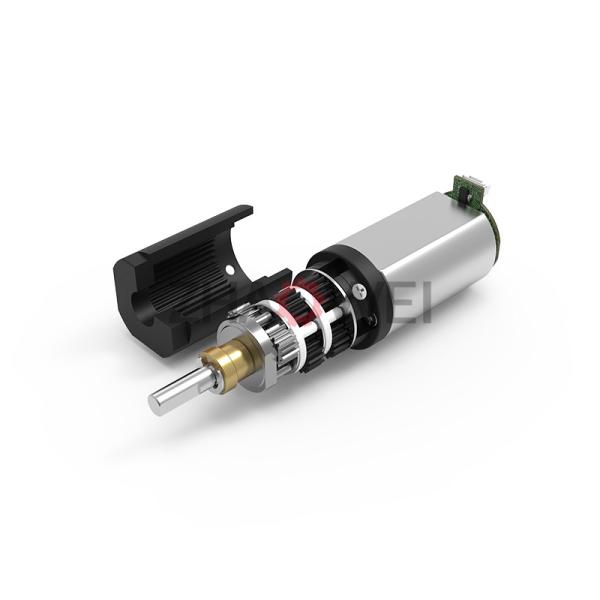

product details show:

TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal CareTS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care

Application:

Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.

Our Services

  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;

batch order leading time according to the actual situation.

Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.

TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care

1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products

  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.

Production&Equipment

TS16949 Planetary Brushless Gear Motor DC 3.0V For Personal Care

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
