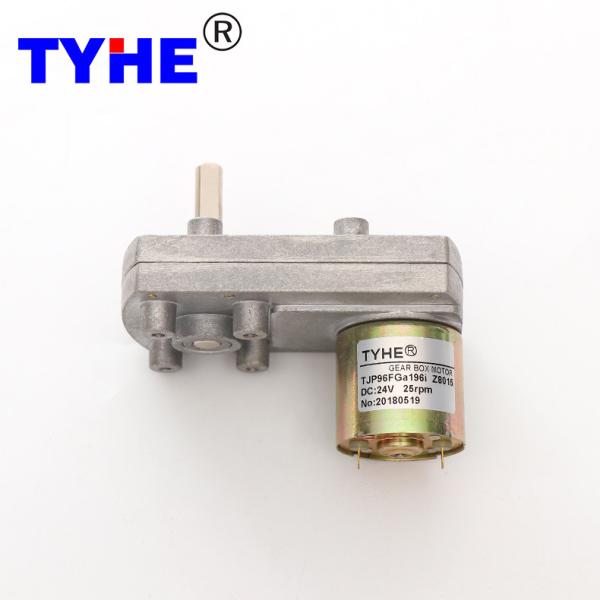

24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm
Specifications
Brand Name :
TYHE
Model Number :
TJP96FGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
96mm*60mm
Voltage :
3v 12v 24v or customized
Speed :
5-250rpm Customized
Torque :
5.0N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
Brushes brush
Type :
Flat Gear Motor
Keywords :
Manufacturer 96*60mm gear box 12v 24 volt 30rpm 3.5rpm 60 rpm 24v 5w 6 watt 7 watt 10kgcm 1nm 5nm dc gear motor with ce rohs
Description

Products Description

Manufacturer 96*60mm gear box 12v 24 volt 30rpm 3.5rpm 60 rpm 24v 5w 6 watt 10kgcm 1nm 5nm dc gear motor with ce rohs

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
RS530 24 7500 72 6000 0.37 9.25 5.81 64.63 27.75 3.20
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-3500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 65.4 1.13 165.59 496.78 93.5 2.72 278.07 834.21
96 73 46.3 60.5 1.13 179.13 537.40 86.4 2.72 300.81 902.43
96 73 77.8 36.0 1.13 301.01 903.02 51.4 2.72 505.47 1516.40
96 65.6 156.0 17.9 1.02 542.38 1627.14 25.6 2.45 910.79 2732.37
96 65.6 197.0 14.2 1.02 684.93 2054.79 20.3 2.45 1150.16 3450.49
96 65.6 254.0 11.0 1.02 883.11 2649.32 15.7 2.45 1482.95 4448.86
96 65.6 297.0 9.4 1.02 1032.61 3097.83 13.5 2.45 1734.00 5202.01
96 65.6 327.0 8.6 1.02 1136.91 3410.74 12.2 2.45 1909.16 5727.47
96 59 653.0 4.3 0.92 2041.93 6125.79 6.1 2.20 3428.90 10286.71
96 59 826.0 3.4 0.92 2582.90 7748.71 4.8 2.20 4337.33 13011.98
96 59 1067.0 2.6 0.92 3336.51 10009.53 3.7 2.20 5602.82 15000.00
96 59 1247.0 2.2 0.92 3899.37 11698.11 3.2 2.20 6548.00 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-5000RPM Input 24V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 93.5 2.79 284.95 854.84 140.2 4.24 289.01 867.02
96 73 46.3 86.4 2.79 308.25 924.74 129.6 4.24 312.64 937.92
96 73 77.8 51.4 2.79 517.96 1553.88 77.1 4.24 525.34 1576.03
96 65.6 156.0 25.6 2.51 933.30 2799.91 38.5 3.81 946.61 2839.82
96 65.6 197.0 20.3 2.51 1178.60 3535.79 30.5 3.81 1195.40 3586.19
96 65.6 254.0 15.7 2.51 1519.61 4558.83 23.6 3.81 1541.27 4623.82
96 65.6 297.0 13.5 2.51 1776.87 5330.60 20.2 3.81 1802.20 5406.59
96 65.6 327.0 12.2 2.51 1956.35 5869.05 18.3 3.81 1984.24 5952.71
96 59 653.0 6.1 2.25 3513.66 10540.99 9.2 3.43 3563.75 10691.24
96 59 826.0 4.8 2.25 4444.54 13333.62 7.3 3.43 4507.90 13523.69
96 59 1067.0 3.7 2.25 5741.31 15000.00 5.6 3.43 5823.15 15000.00
96 59 1247.0 3.2 2.25 6709.86 15000.00 4.8 3.43 6805.50 15000.00

2D drawing

24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm


24 Volt 30rpm Flat Gear Motor 5nm Dc Metal Gear Motor 250rpm

Please let us know your requirements and we will provide you with transmission solutions.
