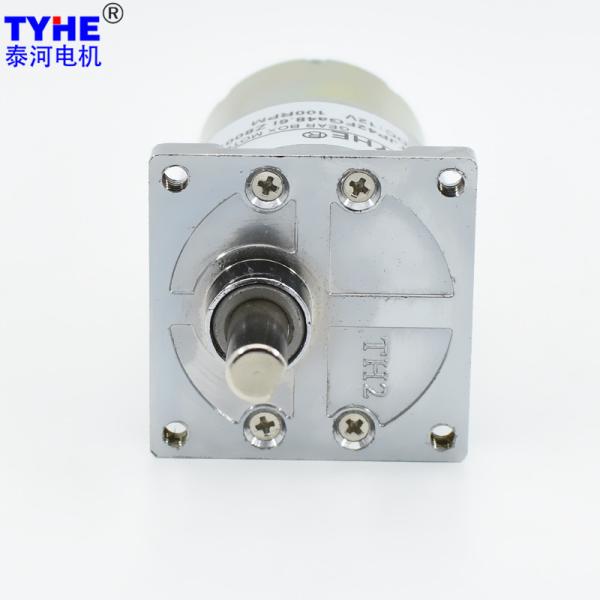

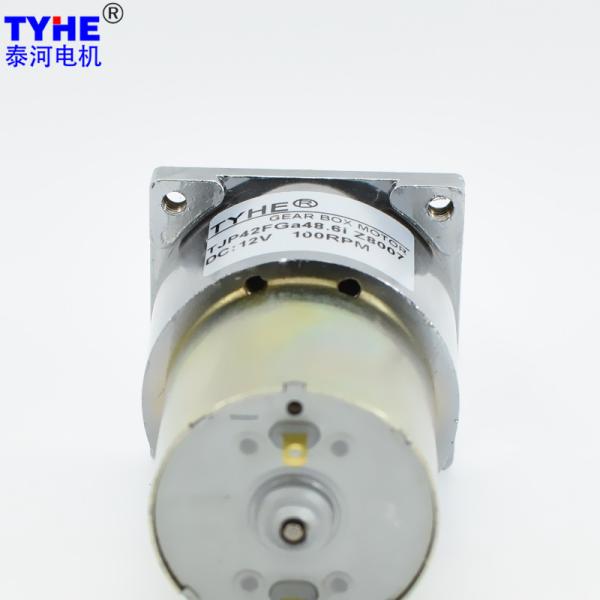

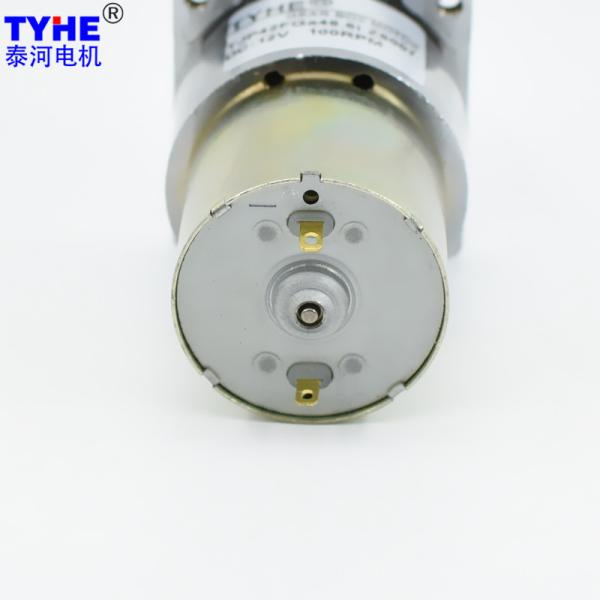

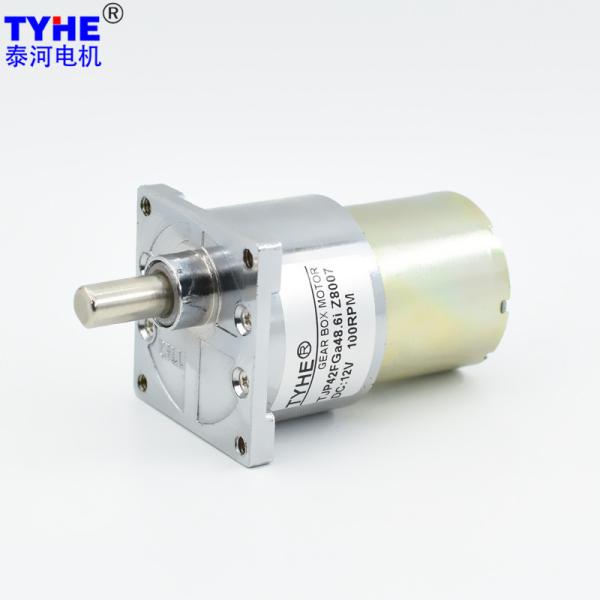

OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
Specifications
Brand Name :
TYHE
Model Number :
TJP42FGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ42mm
Voltage :
6V-24V or customized
Speed :
130rpm or Customized
Torque :
5.5N.m
Gear material :
Steel gears
Commutation :
Brush /brushes /brushed
Type :
DC gear motor, Micro Motor
Keywords :
Manufacturer OEM 42mm gearbox 12 v 24v 6 rpm 100 rpm 50rpm micro PMDC zytd520 30kgcm 5 watt 3w 520 dc geared motor for robotic
Description

Products Description

Manufacturer OEM 42mm gearbox 12 v 24v 6 rpm 100 rpm 50rpm micro PMDC zytd520 30kgcm 5 watt 3w 520 dc geared motor for robotic

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 7500 160 6000 0.80 9.50 5.97 62.30 28.50 6.70
RS530 24 3500 35 2800 0.12 5.90 1.73 62.68 17.70 0.75
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-3500RPM Input 12V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 777.8 1.26 15.45 46.36 1666.7 4.83 27.70 83.11
25.7 81 4.4 636.4 1.26 18.89 56.67 1363.6 4.83 33.86 101.57
25.7 81 5.4 518.5 1.26 23.18 69.55 1111.1 4.83 41.55 124.66
25.7 81 6.8 411.8 1.26 29.19 87.58 882.4 4.83 52.33 156.98
25.7 81 8.6 325.6 1.26 36.92 110.76 697.7 4.83 66.18 198.53
29.3 73 9.7 288.7 1.13 37.53 112.59 618.6 4.36 67.27 201.81
29.3 73 11.8 237.3 1.13 45.65 136.96 508.5 4.36 81.83 245.50
29.3 73 14.6 191.8 1.13 56.49 169.46 411.0 4.36 101.25 303.75
29.3 73 18.2 153.8 1.13 70.42 211.25 329.7 4.36 126.22 378.65
29.3 73 23.3 120.2 1.13 90.15 270.44 257.5 4.36 161.59 484.76
29.3 65.6 25.9 108.1 1.02 90.05 270.15 231.7 3.92 161.41 484.23
29.3 65.6 31.6 88.6 1.02 109.87 329.60 189.9 3.92 196.93 590.79
29.3 65.6 38.9 72.0 1.02 135.25 405.74 154.2 3.92 242.42 727.27
29.3 65.6 48.6 57.6 1.02 168.97 506.92 123.5 3.92 302.88 908.63
29.3 65.6 62.2 45.0 1.02 216.26 648.77 96.5 3.92 387.63 1162.89
32.6 59 69.1 40.5 0.92 216.08 648.23 86.8 3.52 387.31 1161.92
32.6 59 84.2 33.3 0.92 263.29 789.88 71.3 3.52 471.94 1415.82
32.6 59 104 26.9 0.92 325.21 975.62 57.7 3.52 582.92 1748.76
32.6 59 130 21.5 0.92 406.51 1219.53 46.2 3.52 728.65 2185.95
32.6 59 164 17.1 0.92 512.83 1538.48 36.6 3.52 919.22 2757.66
32.6 59 170 16.5 0.92 531.59 1594.77 35.3 3.52 952.85 2858.55
36 53 184 15.2 0.82 516.86 1550.57 32.6 3.16 926.44 2779.32
36 53 225 12.4 0.82 632.03 1896.08 26.7 3.16 1132.88 3398.63
36 53 276 10.1 0.82 775.28 2325.85 21.7 3.16 1389.66 4168.98
36 53 346 8.1 0.82 971.91 2915.74 17.3 3.16 1742.11 5000.00
36 53 442 6.3 0.82 1241.58 3724.73 13.6 3.16 2225.47 5000.00
36 53 459 6.1 0.82 1289.33 3867.99 13.1 3.16 2311.07 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 3.6 777.8 1.40 17.20 51.61 1111.1 3.09 26.59 79.78
25.7 81 4.4 636.4 1.40 21.03 63.08 909.1 3.09 32.50 97.51
25.7 81 5.4 518.5 1.40 25.81 77.42 740.7 3.09 39.89 119.67
25.7 81 6.8 411.8 1.40 32.50 97.49 588.2 3.09 50.23 150.70
25.7 81 8.6 325.6 1.40 41.10 123.30 465.1 3.09 63.53 190.59
29.3 73 9.7 288.7 1.26 41.78 125.33 412.4 2.79 64.58 193.74
29.3 73 11.8 237.3 1.26 50.82 152.47 339.0 2.79 78.56 235.68
29.3 73 14.6 191.8 1.26 62.88 188.65 274.0 2.79 97.20 291.60
29.3 73 18.2 153.8 1.26 78.39 235.16 219.8 2.79 121.17 363.50
29.3 73 23.3 120.2 1.26 100.35 301.06 171.7 2.79 155.12 465.37
29.3 65.6 25.9 108.1 1.13 100.24 300.73 154.4 2.51 154.95 464.86
29.3 65.6 31.6 88.6 1.13 122.30 366.91 126.6 2.51 189.05 567.16
29.3 65.6 38.9 72.0 1.13 150.56 451.68 102.8 2.51 232.73 698.18
29.3 65.6 48.6 57.6 1.13 188.10 564.30 82.3 2.51 290.76 872.28
29.3 65.6 62.2 45.0 1.13 240.74 722.22 64.3 2.51 372.13 1116.38
32.6 59 69.1 40.5 1.02 240.54 721.61 57.9 2.25 371.81 1115.44
32.6 59 84.2 33.3 1.02 293.10 879.30 47.5 2.25 453.06 1359.19
32.6 59 104 26.9 1.02 362.02 1086.07 38.5 2.25 559.60 1678.81
32.6 59 130 21.5 1.02 452.53 1357.59 30.8 2.25 699.50 2098.51
32.6 59 164 17.1 1.02 570.88 1712.65 24.4 2.25 882.45 2647.35
32.6 59 170 16.5 1.02 591.77 1775.31 23.5 2.25 914.74 2744.21
36 53 184 15.2 0.92 575.37 1726.10 21.7 2.02 889.38 2668.15
36 53 225 12.4 0.92 703.58 2110.73 17.8 2.02 1087.56 3262.68
36 53 276 10.1 0.92 863.05 2589.16 14.5 2.02 1334.07 4002.22
36 53 346 8.1 0.92 1081.94 3245.83 11.6 2.02 1672.43 5000.00
36 53 442 6.3 0.92 1382.13 4146.40 9.0 2.02 2136.45 5000.00
36 53 459 6.1 0.92 1435.29 4305.88 8.7 2.02 2218.62 5000.00

OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm


OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm

Please let us know your requirements and we will provide you with transmission solutions.

OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm

OEM 42mm 24 Volt Micro PMDC 12 Volt DC Gear Motor 50rpm
