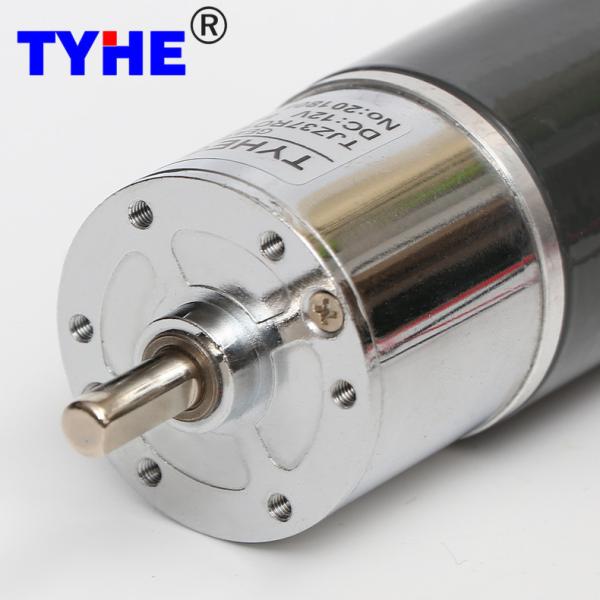

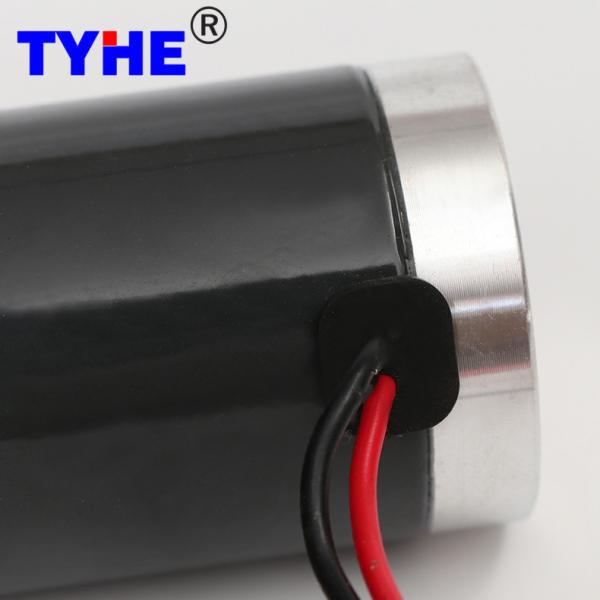

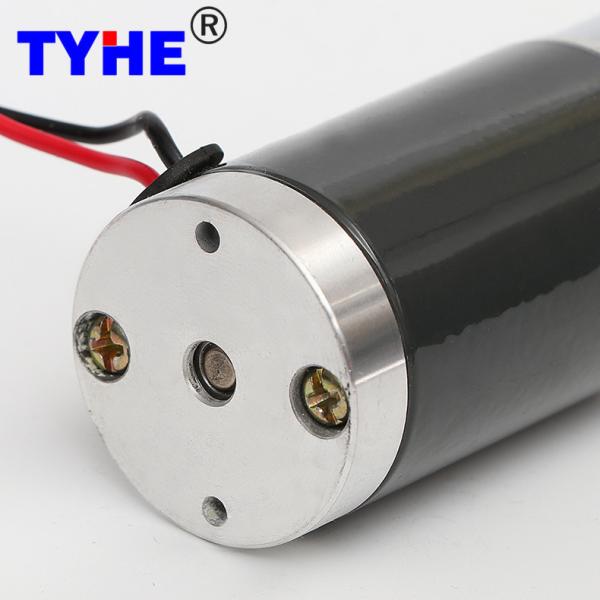

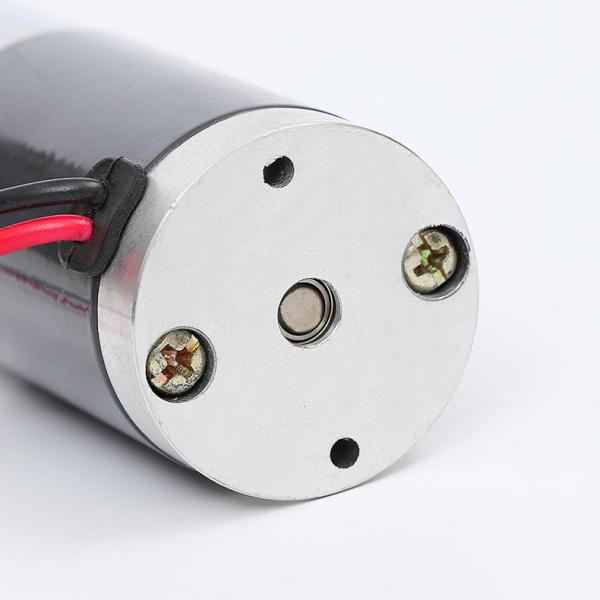

Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJZ42RO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D42mm size
Voltage :
24V or customize
Speed :
10-500rpm or Customized
Torque :
5N.m or Customized
Commutation :
Brush /brushes /brushed
Type :
Brushes dc motor, small dc motor
Keywords :
Custom low noise 42mm gearbox high torque low rpm 24v 12v 5n.m 40kgcm 3nm 50rpm 25rpm PMDC micro dc gear motor with encoder
Description

Products Description

Custom low noise 42mm gearbox high torque low rpm 24v 12v 5n.m 40kgcm 3nm 50rpm 25rpm PMDC micro dc gear motor with encoder

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 3200 80 2560 0.25 14.30 3.83 63.89 42.90 1.30
ZY3864 24 4000 120 3200 0.40 17.90 6.00 62.48 53.70 2.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1824.0 7.66 40.10 120.29 1920.0 8.26 41.11 123.32
25.7 81 3.1 1471.0 7.66 49.72 149.15 1548.4 8.26 50.97 152.92
25.7 81 3.8 1200.0 7.66 60.94 182.83 1263.2 8.26 62.48 187.45
25.7 81 4.8 950.0 7.66 76.98 230.95 1000.0 8.26 78.93 236.78
25.7 81 6.1 747.5 7.66 97.83 293.50 786.9 8.26 100.30 300.91
25.7 73 6.8 670.6 6.90 98.29 294.86 705.9 7.45 100.77 302.31
25.7 73 8.3 549.4 6.90 119.97 359.90 578.3 7.45 123.00 368.99
25.7 73 10.3 442.7 6.90 148.88 446.63 466.0 7.45 152.64 457.91
25.7 73 12.8 356.3 6.90 185.01 555.03 375.0 7.45 189.68 569.05
25.7 73 16.4 278.0 6.90 237.05 711.14 292.7 7.45 243.03 729.09
25.7 65.6 18.2 250.5 6.20 236.40 709.19 263.7 6.69 242.37 727.10
25.7 65.6 22.2 205.4 6.20 288.35 865.05 216.2 6.69 295.63 886.90
25.7 65.6 27.4 166.4 6.20 355.89 1067.68 175.2 6.69 364.88 1094.64
25.7 65.6 34.2 133.3 6.20 444.22 1332.65 140.4 6.69 455.43 1366.30
25.7 65.6 43.8 104.1 6.20 568.91 1706.73 109.6 6.69 583.28 1749.83
29.5 59 48.6 93.8 5.58 567.75 1703.24 98.8 6.02 582.08 1746.25
29.5 59 59.3 76.9 5.58 692.74 2078.23 80.9 6.02 710.24 2130.71
29.5 59 73.0 62.5 5.58 852.79 2558.36 65.8 6.02 874.32 2622.96
29.5 59 91.2 50.0 5.58 1065.40 3196.20 52.6 6.02 1092.30 3276.91
29.5 59 117.0 39.0 5.58 1366.79 4100.38 41.0 6.02 1401.31 4203.93
29.5 59 120.0 38.0 5.58 1401.84 4205.52 40.0 6.02 1437.24 4311.72
32.7 53 130.0 35.1 5.01 1364.22 4092.66 36.9 5.41 1398.67 4196.01
32.7 53 158.0 28.9 5.01 1658.05 4974.16 30.4 5.41 1699.92 5000.00
32.7 53 195.0 23.4 5.01 2046.33 5000.00 24.6 5.41 2098.01 5000.00
32.7 53 243.0 18.8 5.01 2550.04 5000.00 19.8 5.41 2614.44 5000.00
32.7 53 311.0 14.7 5.01 3263.63 5000.00 15.4 5.41 3346.05 5000.00
32.7 53 323.0 14.1 5.01 3389.56 5000.00 14.9 5.41 3475.16 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-3200RPM Input 24V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1024.0 3.10 28.96 86.87 1280.0 4.86 36.25 108.74
25.7 81 3.1 825.8 3.10 35.91 107.72 1032.3 4.86 44.95 134.84
25.7 81 3.8 673.7 3.10 44.02 132.05 842.1 4.86 55.10 165.29
25.7 81 4.8 533.3 3.10 55.60 166.80 666.7 4.86 69.60 208.79
25.7 81 6.1 419.7 3.10 70.66 211.97 524.6 4.86 88.44 265.33
25.7 73 6.8 376.5 2.80 70.99 212.96 470.6 4.38 88.86 266.57
25.7 73 8.3 308.4 2.80 86.64 259.93 385.5 4.38 108.46 325.37
25.7 73 10.3 248.5 2.80 107.52 322.57 310.7 4.38 134.59 403.77
25.7 73 12.8 200.0 2.80 133.62 400.86 250.0 4.38 167.26 501.77
25.7 73 16.4 156.1 2.80 171.20 513.60 195.1 4.38 214.30 642.90
25.7 65.6 18.2 140.7 2.51 170.73 512.19 175.8 3.93 213.71 641.14
25.7 65.6 22.2 115.3 2.51 208.25 624.76 144.1 3.93 260.68 782.04
25.7 65.6 27.4 93.4 2.51 257.03 771.10 116.8 3.93 321.74 965.23
25.7 65.6 34.2 74.9 2.51 320.82 962.47 93.6 3.93 401.59 1204.77
25.7 65.6 43.8 58.4 2.51 410.88 1232.64 73.1 3.93 514.32 1542.95
29.5 59 48.6 52.7 2.26 410.04 1230.11 65.8 3.54 513.26 1539.79
29.5 59 59.3 43.2 2.26 500.31 1500.94 54.0 3.54 626.27 1878.80
29.5 59 73.0 35.1 2.26 615.90 1847.70 43.8 3.54 770.95 2312.86
29.5 59 91.2 28.1 2.26 769.45 2308.36 35.1 3.54 963.16 2889.49
29.5 59 117.0 21.9 2.26 987.13 2961.39 27.4 3.54 1235.64 3706.91
29.5 59 120.0 21.3 2.26 1012.44 3037.32 26.7 3.54 1267.32 3801.96
32.7 53 130.0 19.7 2.03 985.27 2955.81 24.6 3.18 1233.31 3699.93
32.7 53 158.0 16.2 2.03 1197.48 3592.45 20.3 3.18 1498.95 4496.84
32.7 53 195.0 13.1 2.03 1477.91 4433.72 16.4 3.18 1849.97 5000.00
32.7 53 243.0 10.5 2.03 1841.70 5000.00 13.2 3.18 2305.34 5000.00
32.7 53 311.0 8.2 2.03 2357.07 5000.00 10.3 3.18 2950.46 5000.00
32.7 53 323.0 7.9 2.03 2448.02 5000.00 9.9 3.18 3064.30 5000.00

2D drawing

Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor


Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor

Please let us know your requirements and we will provide you with transmission solutions.

Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor

Custom Low Noise 42mm Gearbox Low Rpm 24v PMDC brushless Micro Dc Gear Motor
