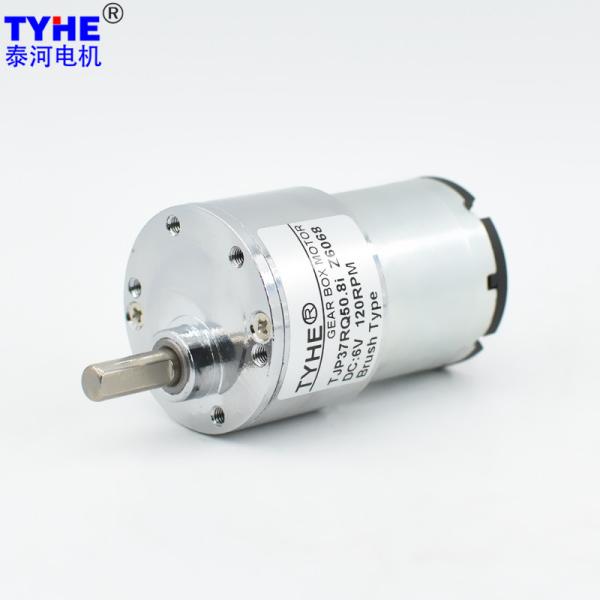

12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
Specifications
Brand Name :
TYHE
Model Number :
TJP37RQ
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm size
Voltage :
6 volt or customized
Speed :
50rpm Customized
Torque :
1.6N.m
Gear material :
Powder metallurgy steel
Commutation :
brushes brushed
Type :
DC Gear Motor, Micro Motor
Keywords :
Chinese Super Low Noise 12v 24v 12w Low Speed 300 Rpm 60 Rpm High Torque 5kg Cm Dc Gear Motor For Intelligent Cradle
Description

Products Description

Chinese Super Low Noise 12v 24v 12w Low Speed 300 Rpm 60 Rpm High Torque 5kg Cm Dc Gear Motor For Intelligent Cradle

2D drawing

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3330 6 6000 100 4800 0.30 2.23 1.12 62.27 6.69 1.70
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 738.5 0.91 11.74 35.22
22.5 81 7.6 631.6 0.91 13.73 41.18
22.5 73 9.3 516.1 0.82 15.14 45.42
22.5 73 11.8 406.8 0.82 19.21 57.63
22.5 73 15.2 315.8 0.82 24.74 74.23
22.5 73 20.4 235.3 0.82 33.21 99.63
24.5 65.6 27.5 174.5 0.74 40.23 120.69
24.5 65.6 35.6 134.8 0.74 52.08 156.24
24.5 65.6 41.6 115.4 0.74 60.86 182.57
24.5 65.6 57.7 83.2 0.74 84.41 253.22
26.5 59 73.4 65.4 0.66 96.57 289.72
26.5 59 83 57.8 0.66 109.20 327.61
26.5 59 97 49.5 0.66 127.62 382.87
26.5 59 111 43.2 0.66 146.04 438.13
26.5 59 119 40.3 0.66 156.57 469.70
26.5 59 130 36.9 0.66 171.04 513.12
29.5 53 194 24.7 0.59 229.29 687.87
29.5 53 226 21.2 0.59 267.11 801.33
29.5 53 259 18.5 0.59 306.11 918.34
29.5 53 277 17.3 0.59 327.39 982.16
29.5 53 303 15.8 0.59 358.12 1074.35
29.5 53 316 15.2 0.59 373.48 1120.44
29.5 53 346 13.9 0.59 408.94 1226.81
29.5 53 382 12.6 0.59 451.49 1354.46
32.5 47.8 452 10.6 0.54 481.80 1445.41
32.5 47.8 528 9.1 0.54 562.82 1688.45
32.5 47.8 604 7.9 0.54 643.83 1931.48
32.5 47.8 665 7.2 0.54 708.85 2126.55
32.5 47.8 733 6.5 0.54 781.33 2344.00
32.5 47.8 808 5.9 0.54 861.28 2500.00
32.5 47.8 890 5.4 0.54 948.69 2500.00
32.5 43 1232 3.9 0.48 1181.36 2500.00
32.5 43 1408 3.4 0.48 1350.13 2500.00
32.5 43 1552 3.1 0.48 1488.21 2500.00
32.5 43 1711 2.8 0.48 1640.68 2500.00
32.5 43 2077 2.3 0.48 1991.64 2500.00

12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle


12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle

Please let us know your requirements and we will provide you with transmission solutions.

12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle

12w 300 Rpm 60 Rpm 5kg Cm 12v 24v Dc Gear Motor Low Noise For Intelligent Cradle
