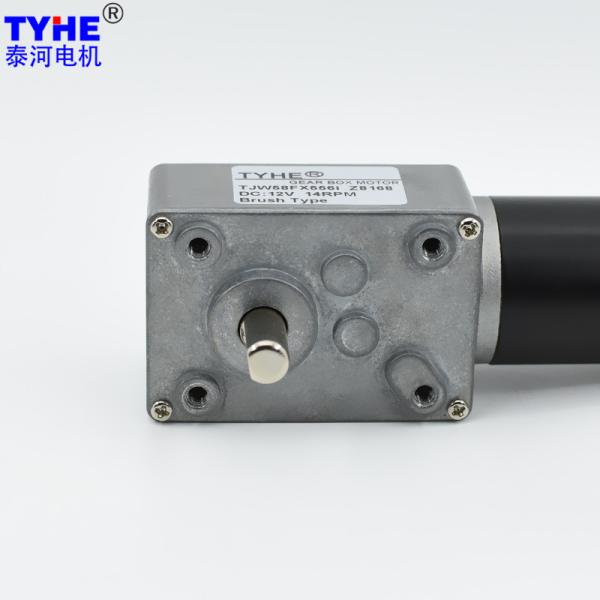

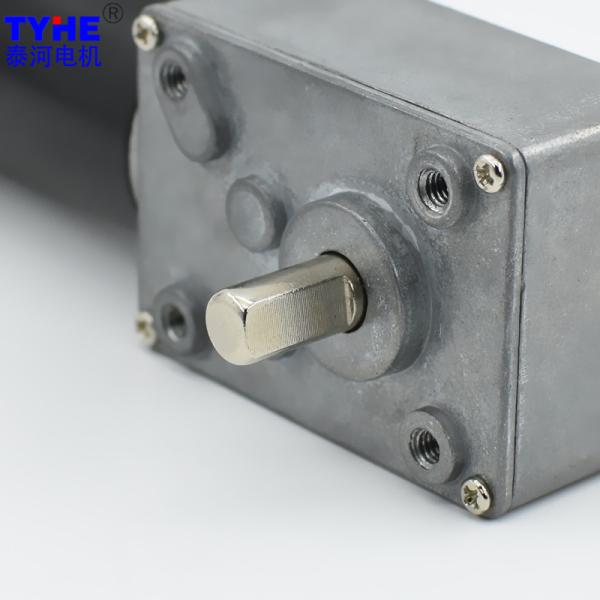

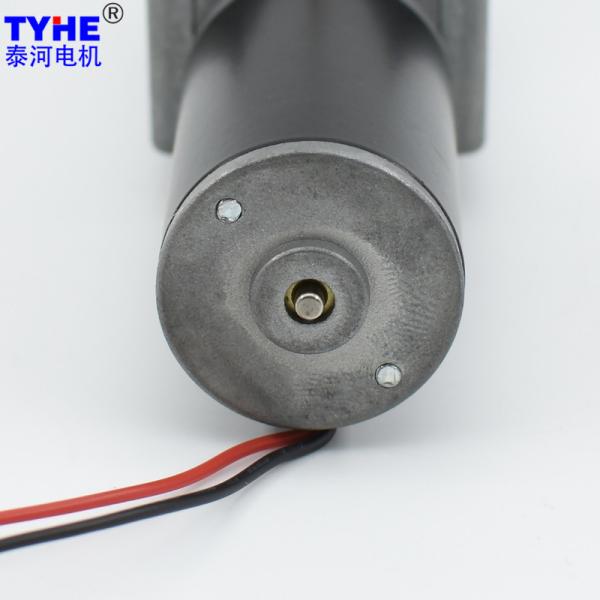

58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
Specifications
Brand Name :
TYHE
Model Number :
TJW58FX
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
L58mm*W40mm
Voltage :
6v 12v 24v or customized
Speed :
10-210rpm Customized
Torque :
5N.m
Gear material :
Powder gears
Commutation :
Brushes
Type :
Mini DC Worm Gear Motor
Keywords :
58mm Micro High Torque 5v 24v 12 V Volt Right Angle 12v 5rpm 15kg.Cm Double Shafts Dc Worm Gear Motor
Description

Products Description

58mm Micro High Torque 5v 24v 12 V Volt Right Angle 12v 5rpm 15kg.Cm Double Shafts Dc Worm Gear Motor

2D drawing

58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft


58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3157 12 5000 210 4000 0.46 8.30 3.48 63.44 24.90 1.70
ZY3157 24 5000 100 4000 0.22 8.40 3.52 66.63 25.20 0.84
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
38.3 90 3.7 1081.1 3.13 27.64 82.92 1081.1 3.17 27.97 83.92
38.3 90 5.2 769.2 3.13 38.84 116.53 769.2 3.17 39.31 117.94
51.4 81 13.7 292.0 2.82 92.11 276.32 292.0 2.85 93.21 279.64
51.4 81 19.2 208.3 2.82 129.08 387.24 208.3 2.85 130.64 391.91
51.4 81 26.9 148.7 2.82 180.85 542.55 148.7 2.85 183.03 549.08
51.4 81 35.0 114.3 2.82 235.31 705.92 114.3 2.85 238.14 714.42
64.6 73 51.0 78.4 2.54 309.01 927.03 78.4 2.57 312.73 938.20
64.6 73 71.0 56.3 2.54 430.19 1290.57 56.3 2.57 435.37 1306.12
64.6 73 100.0 40.0 2.54 605.90 1817.70 40.0 2.57 613.20 1839.60
64.6 73 139.0 28.8 2.54 842.20 2526.60 28.8 2.57 852.35 2557.04
80 65.6 189.0 21.2 2.28 1029.07 3087.20 21.2 2.31 1041.47 3124.40
80 65.6 264.0 15.2 2.28 1437.43 4312.28 15.2 2.31 1454.75 4364.24
80 65.6 369.0 10.8 2.28 2009.13 5000.00 10.8 2.31 2033.34 5000.00
80 65.6 514.0 7.8 2.28 2798.63 5000.00 7.8 2.31 2832.35 5000.00
80 65.6 721.0 5.5 2.28 2798.63 5000.00 5.5 2.31 3973.00 5000.00
95 59 699.0 5.7 2.05 3423.00 5000.00 5.7 2.08 3464.24 5000.00
95 59 977.0 4.1 2.05 4784.37 5000.00 4.1 2.08 4842.01 5000.00
95 59 1367.0 2.9 2.05 5000.00 5000.00 2.9 2.08 5000.00 5000.00
95 59 1911.0 2.1 2.05 5000.00 5000.00 2.1 2.08 5000.00 5000.00
95 59 2672.0 1.5 2.05 5000.00 5000.00 1.5 2.08 5000.00 5000.00
95 59 3736.0 1.1 2.05 5000.00 5000.00 1.1 2.08 5000.00 5000.00

Please let us know your requirements and we will provide you with transmission solutions.

58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft

58mm 12V DC Right Angle Gear Motor 15kg.Cm 5V 5rpm Double Shaft
