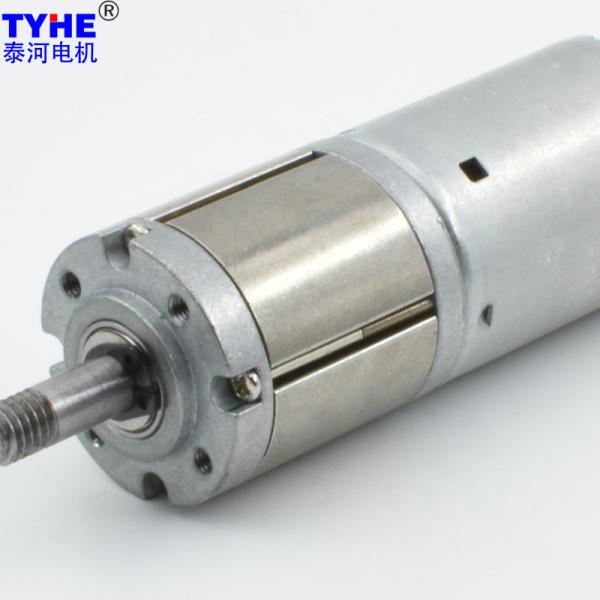

Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor
Specifications
Brand Name :
TYHE
Model Number :
TJX28ZRL
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
28mm diameter
Voltage :
24v or customized
Speed :
600rpm Customized
Torque :
5N.m
Gear material :
Powder gears
Commutation :
brush type
Type :
Mini DC Planetary Gear Motor
Keywords :
Micro Permanent Magnetic Small Powerful Electric 28mm Gearbox Dc Motors12v Dc Gear Motor Specifications For Curtain
Description

Products Description

Micro Permanent Magnetic Small Powerful Electric 28mm Gearbox Dc Motors12v Dc Gear Motor Specifications For Curtain

2D drawing

Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor


Permanent Magnetic 12V DC Gear Motor 28mm Micro Brushed Dc Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS385 12 5500 140 4400 0.30 5.03 2.32 64.37 15.09 1.08
RS385 12 8800 205 7040 0.64 6.50 4.79 62.31 19.50 4.00
RS385 12 20000 320 16000 1.73 8.10 13.57 65.37 24.30 15.00
RS385 24 5500 55 4400 0.15 5.10 2.35 64.20 15.30 0.84
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-8800RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
20.2 90 3.4 1294.1 2.09 15.39 46.18 2070.6 4.31 19.89 59.67
20.2 90 4.6 956.5 2.09 20.82 62.47 1530.4 4.31 26.91 80.73
25.9 81 11.2 392.9 1.88 45.63 136.90 628.6 3.88 58.97 176.90
25.9 81 15.5 283.9 1.88 63.15 189.45 454.2 3.88 81.61 244.82
25.9 81 21.5 204.7 1.88 87.60 262.79 327.4 3.88 113.20 339.59
31.7 73 38.0 115.8 1.69 139.53 418.60 185.3 3.50 180.31 540.93
31.7 73 52.0 84.6 1.69 190.94 572.82 135.4 3.50 246.74 740.22
31.7 73 72.0 61.1 1.69 264.38 793.13 97.8 3.50 341.64 1024.92
31.7 73 100.0 44.0 1.69 367.19 1101.57 70.4 3.50 474.50 1423.50
37.5 65.6 126.0 34.9 1.52 415.76 1247.28 55.9 3.14 537.26 1611.79
37.5 65.6 175.0 25.1 1.52 577.44 1732.33 40.2 3.14 746.20 2238.60
37.5 65.6 242.0 18.2 1.52 798.52 2395.57 29.1 3.14 1031.89 3095.66
37.5 65.6 334.0 13.2 1.52 1102.09 3306.28 21.1 3.14 1424.18 4272.53
37.5 65.6 462.0 9.5 1.52 1524.45 4573.36 15.2 3.14 1969.97 5000.00
43.3 59 424.0 10.4 1.37 1258.30 5000.00 16.6 2.83 1626.04 4878.12
43.3 59 586.0 7.5 1.37 1739.07 5000.00 12.0 2.83 2247.31 5000.00
43.3 59 810.0 5.4 1.37 2403.84 5000.00 8.7 2.83 3106.35 5000.00
43.3 59 1120.0 3.9 1.37 3323.82 5000.00 6.3 2.83 4295.20 5000.00
43.3 59 1549.0 2.8 1.37 4596.97 5000.00 4.5 2.83 5000.00 5000.00
43.3 59 2142.0 2.1 1.37 5000.00 5000.00 3.3 2.83 5000.00 5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-20000RPM Input 24V-5500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
20.2 90 3.4 4705.9 12.21 24.79 74.36 1294.1 2.11 15.61 46.82
20.2 90 4.6 3478.3 12.21 33.53 100.60 956.5 2.11 21.11 63.34
25.9 81 11.2 1428.6 10.99 73.48 220.45 392.9 1.90 46.27 138.80
25.9 81 15.5 1032.3 10.99 101.70 305.09 283.9 1.90 64.03 192.09
25.9 81 21.5 744.2 10.99 141.06 423.18 204.7 1.90 88.82 266.45
31.7 73 38.0 421.1 9.91 224.69 674.08 115.8 1.72 141.47 424.42
31.7 73 52.0 307.7 9.91 307.48 922.43 84.6 1.72 193.60 580.79
31.7 73 72.0 222.2 9.91 425.74 1277.21 61.1 1.72 268.06 804.17
31.7 73 100.0 160.0 9.91 591.30 1773.90 44.0 1.72 372.30 1116.90
37.5 65.6 126.0 127.0 8.90 669.51 2008.54 34.9 1.54 421.55 1264.64
37.5 65.6 175.0 91.4 8.90 929.88 2789.64 25.1 1.54 585.48 1756.44
37.5 65.6 242.0 66.1 8.90 1285.89 3857.67 18.2 1.54 809.64 2428.91
37.5 65.6 334.0 47.9 8.90 1774.74 5000.00 13.2 1.54 1117.43 3352.29
37.5 65.6 462.0 34.6 8.90 2454.88 5000.00 9.5 1.54 1545.67 4637.00
43.3 59 424.0 37.7 8.01 2026.30 5000.00 10.4 1.39 1275.82 3827.45
43.3 59 586.0 27.3 8.01 2800.49 5000.00 7.5 1.39 1763.27 5000.00
43.3 59 810.0 19.8 8.01 3870.99 5000.00 5.4 1.39 2437.29 5000.00
43.3 59 1120.0 14.3 8.01 5000.00 5000.00 3.9 1.39 3370.08 5000.00
43.3 59 1549.0 10.3 8.01 5000.00 5000.00 2.8 1.39 4660.94 5000.00
43.3 59 2142.0 7.5 8.01 5000.00 5000.00 2.1 1.39 5000.00 5000.00

Please let us know your requirements and we will provide you with transmission solutions.
