Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm
Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm
Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm
Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm
Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm
Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm
Specifications
Brand Name :
TYHE
Model Number :
TJX36RGb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ36mm
Voltage :
3v 6v 12v~24v or customized
Speed :
1-1850rpm Customized
Torque :
8N.m
Gear material :
steel
Commutation :
brushes brush
Type :
Planetary Gear Motor, DC Mini Motor
Keywords :
Custom speed 36mm gearmotor 6v 12v 24v 100kgcm 40kgcm 12nm 12w 10 watt 1rpm 5 rpm brush dc planetary geared motor with encoder
Description

Products Description

Custom speed 36mm gearmotor 6v 12v 24v 100kgcm 40kgcm 12nm 12w 10 watt 1rpm 5 rpm brush dc planetary geared motor with encoder

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS545 6 3200 280 2560 0.81 11.20 3.00 61.65 33.60 4.70
RS545 12 2000 70 1600 0.20 8.95 1.50 63.54 26.85 1.10
RS545 24 6000 160 4800 0.60 17.50 8.80 61.25 52.50 4.30
RS545 24 8300 200 6640 0.88 19.30 13.42 63.90 57.90 6.90
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-3200RPM Input 12V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 691.9 2.70 37.30 111.89 432.4 1.35 29.80 89.41
28.2 90 5.2 492.3 2.70 52.42 157.25 307.7 1.35 41.89 125.66
37 81 13.7 186.9 2.43 124.29 372.86 116.8 1.21 99.32 297.95
37 81 19.2 133.3 2.43 174.18 522.55 83.3 1.21 139.19 417.57
37 81 26.9 95.2 2.43 244.04 732.11 59.5 1.21 195.01 585.03
37 81 35.0 73.1 2.43 317.52 952.56 45.7 1.21 253.73 761.20
45.8 73 51.0 50.2 2.19 416.98 1250.93 31.4 1.09 333.21 999.63
45.8 73 71.0 36.1 2.19 580.50 1741.49 22.5 1.09 463.88 1391.64
45.8 73 100.0 25.6 2.19 817.60 2452.80 16.0 1.09 653.35 1960.05
45.8 73 139.0 18.4 2.19 1136.46 3409.39 11.5 1.09 908.16 2724.47
54.7 65.6 189.0 13.5 1.97 1388.62 4165.86 8.5 0.98 1109.66 3328.97
54.7 65.6 264.0 9.7 1.97 1939.66 5818.98 6.1 0.98 1550.00 4649.99
54.7 65.6 369.0 6.9 1.97 2711.12 8133.35 4.3 0.98 2166.47 6499.42
54.7 65.6 514.0 5.0 1.97 3776.46 10000.00 3.1 0.98 3017.80 9053.39
54.7 65.6 721.0 3.6 1.97 5297.33 10000.00 2.2 0.98 4233.14 10000.00
64 59 699.0 3.7 1.77 4618.99 10000.00 2.3 0.88 3691.07 10000.00
64 59 977.0 2.6 1.77 6456.02 10000.00 1.6 0.88 5159.05 10000.00
64 59 1367.0 1.9 1.77 9033.14 10000.00 1.2 0.88 7218.44 10000.00
64 59 1911.0 1.3 1.77 10000.00 10000.00 0.8 0.88 10000.00 10000.00
64 59 2672.0 1.0 1.77 10000.00 10000.00 0.6 0.88 10000.00 10000.00
64 59 3736.0 0.7 1.77 10000.00 10000.00 0.4 0.88 10000.00 10000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6000RPM Input 24V-8300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1297.3 7.92 58.28 174.83 1794.6 12.08 64.27 192.81
28.2 90 5.2 923.1 7.92 81.90 245.70 1276.9 12.08 90.32 270.97
37 81 13.7 350.4 7.12 194.20 582.59 484.7 10.87 214.17 642.52
37 81 19.2 250.0 7.12 272.16 816.48 345.8 10.87 300.15 900.46
37 81 26.9 178.4 7.12 381.31 1143.92 246.8 10.87 420.53 1261.58
37 81 35.0 137.1 7.12 496.13 1488.38 189.7 10.87 547.16 1641.47
45.8 73 51.0 94.1 6.42 651.53 1954.58 130.2 9.80 718.54 2155.62
45.8 73 71.0 67.6 6.42 907.03 2721.08 93.5 9.80 1000.32 3000.96
45.8 73 100.0 48.0 6.42 1277.50 3832.50 66.4 9.80 1408.90 4226.70
45.8 73 139.0 34.5 6.42 1775.73 5327.18 47.8 9.80 1958.37 5875.11
54.7 65.6 189.0 25.4 5.77 2169.72 6509.16 35.1 8.80 2392.89 7178.67
54.7 65.6 264.0 18.2 5.77 3030.72 9092.16 25.2 8.80 3342.45 10000.00
54.7 65.6 369.0 13.0 5.77 4236.12 10000.00 18.0 8.80 4671.84 10000.00
54.7 65.6 514.0 9.3 5.77 5900.72 10000.00 12.9 8.80 6507.65 10000.00
54.7 65.6 721.0 6.7 5.77 8277.08 10000.00 9.2 8.80 9128.44 10000.00
64 59 699.0 6.9 5.19 7217.18 10000.00 9.5 7.92 7959.51 10000.00
64 59 977.0 4.9 5.19 10000.00 10000.00 6.8 7.92 10000.00 10000.00
64 59 1367.0 3.5 5.19 10000.00 10000.00 4.9 7.92 10000.00 10000.00
64 59 1911.0 2.5 5.19 10000.00 10000.00 3.5 7.92 10000.00 10000.00
64 59 2672.0 1.8 5.19 10000.00 10000.00 2.5 7.92 10000.00 10000.00
64 59 3736.0 1.3 5.19 10000.00 10000.00 1.8 7.92 10000.00 10000.00

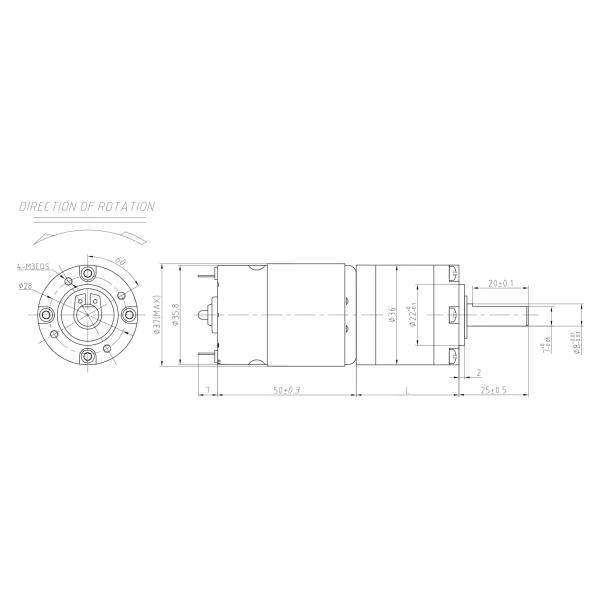

2D drawing

Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm


Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm

Please let us know your requirements and we will provide you with transmission solutions.
