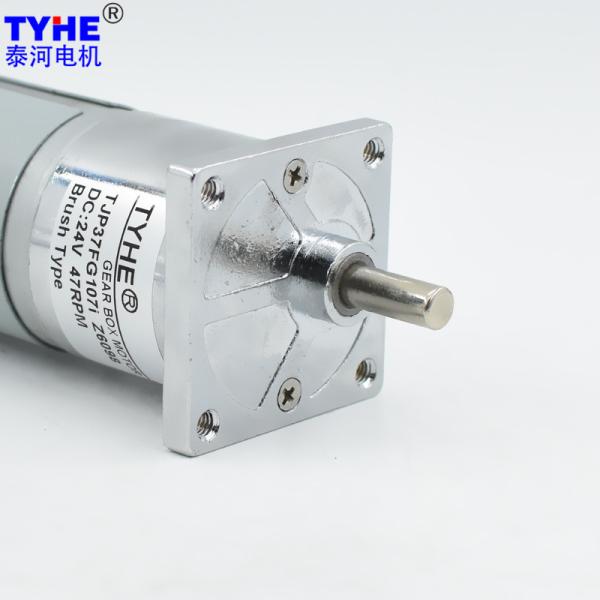

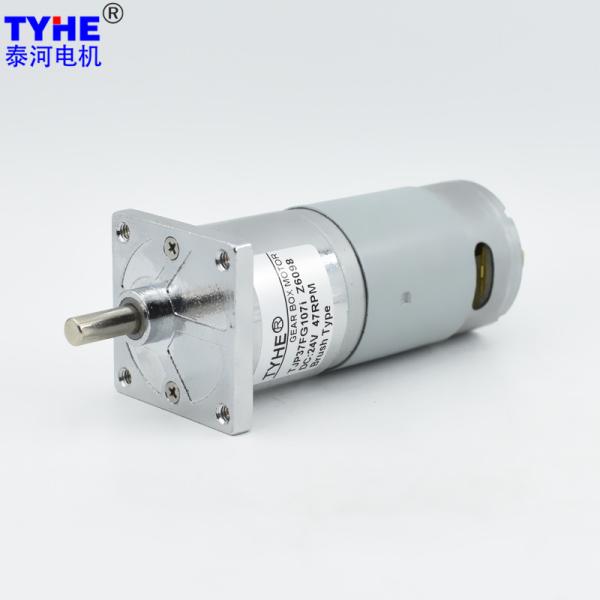

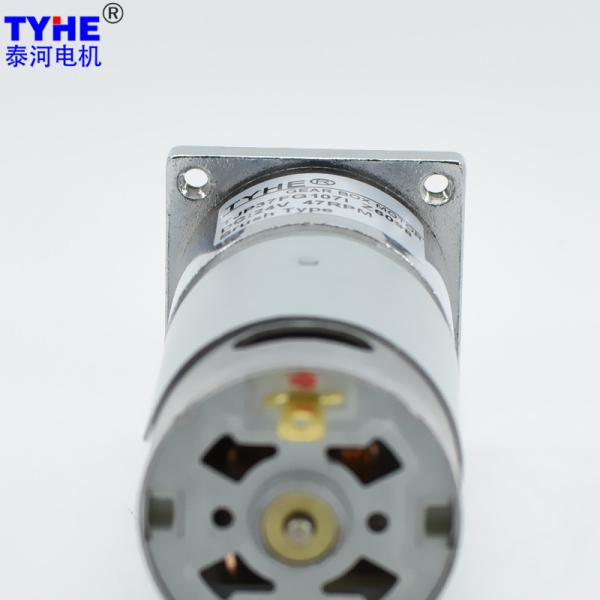

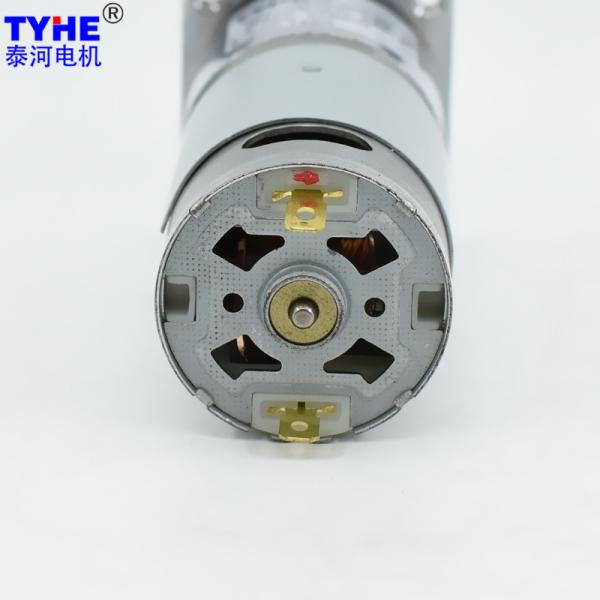

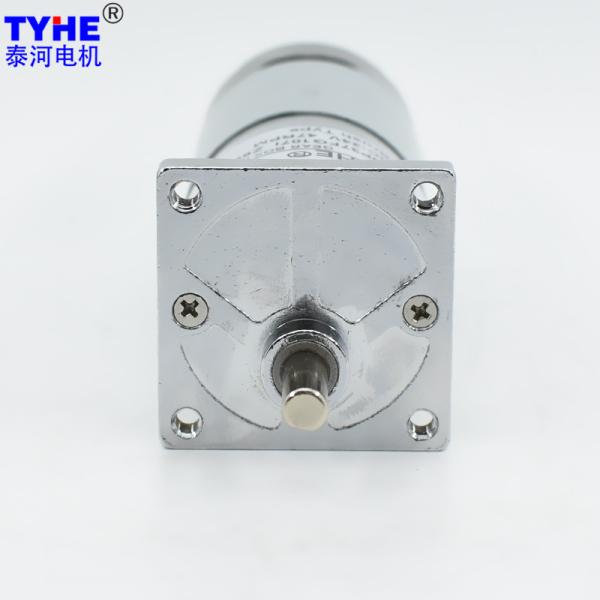

TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared
Specifications
Brand Name :
TYHE
Model Number :
TJP37FG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
6-24V
Speed :
5-1000rpm
Torque :
1.5N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
Brush brushes brushed
Type :
Gear Motor, DC Spur Gear Motor
Keywords :
TYHE Mini 37mm High Torqu High Effici 12v 24v 12 Volt 4rpm 6rpm 10rpm Spur Geared Dc Motor For Toys Robots
Description

Products Description

TYHE Mini 37mm High Torqu High Effici 12v 24v 12 Volt 4rpm 6rpm 10rpm Spur Geared Dc Motor For Toys Robots

2D drawing

TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared


TYHE Mini 37mm 12V DC Gear Motor 4rpm 6rpm 10rpm Spur Geared

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 6 6000 560 4800 1.92 14.20 7.14 61.85 42.60 13.00
RS555 12 3000 110 2400 0.42 12.30 3.09 62.07 36.90 3.00
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 6000 160 4800 0.53 16.80 8.44 66.18 50.40 3.50
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-6000RPM Input 12V-3000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 585.4 5.78 94.32 282.95 292.7 2.50 81.70 245.09
25.5 73 11.7 410.3 5.21 121.28 363.85 205.1 2.26 105.05 315.16
25.5 73 14.7 326.5 5.21 152.38 457.14 163.3 2.26 131.99 395.97
25.5 73 19.1 251.3 5.21 197.99 593.97 125.7 2.26 171.50 514.50
27.5 65.6 27.2 176.5 4.68 253.37 760.12 88.2 2.03 219.47 658.41
27.5 65.6 34.4 139.5 4.68 320.44 961.33 69.8 2.03 277.57 832.70
27.5 65.6 44.5 107.9 4.68 414.53 1243.58 53.9 2.03 359.06 1077.18
29.5 59 63.5 75.6 4.21 532.00 1596.01 37.8 1.82 460.82 1382.46
29.5 59 80.3 59.8 4.21 672.75 2018.26 29.9 1.82 582.74 1748.21
29.5 59 104.0 46.2 4.21 871.31 2500.00 23.1 1.82 754.73 2264.18
32.5 53 148.0 32.4 3.78 1113.85 2500.00 16.2 1.64 964.81 2500.00
32.5 53 187.0 25.7 3.78 1407.36 2500.00 12.8 1.64 1219.05 2500.00
32.5 53 242.0 19.8 3.78 1821.29 2500.00 9.9 1.64 1577.60 2500.00
35.5 47.8 346.0 13.9 3.41 2348.51 2500.00 6.9 1.48 2034.27 2500.00
35.5 47.8 437.0 11.0 3.41 2500.00 2500.00 5.5 1.48 2500.00 2500.00
35.5 47.8 565.0 8.5 3.41 2500.00 2500.00 4.2 1.48 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 487.8 5.94 116.24 348.71 585.4 6.84 111.59 334.76
25.5 73 11.7 341.9 5.35 149.47 448.40 410.3 6.16 143.49 430.47
25.5 73 14.7 272.1 5.35 187.79 563.38 326.5 6.16 180.28 540.84
25.5 73 19.1 209.4 5.35 244.00 732.01 251.3 6.16 234.24 702.73
27.5 65.6 27.2 147.1 4.81 312.26 936.77 176.5 5.54 299.77 899.30
27.5 65.6 34.4 116.3 4.81 394.91 1184.74 139.5 5.54 379.12 1137.35
27.5 65.6 44.5 89.9 4.81 510.86 1532.58 107.9 5.54 490.43 1471.28
29.5 59 63.5 63.0 4.32 655.64 1966.91 75.6 4.98 629.41 1888.24
29.5 59 80.3 49.8 4.32 829.10 2487.29 59.8 4.98 795.93 2387.80
29.5 59 104.0 38.5 4.32 1073.80 2500.00 46.2 4.98 1030.85 2500.00
32.5 53 148.0 27.0 3.88 1372.70 2500.00 32.4 4.48 1317.79 2500.00
32.5 53 187.0 21.4 3.88 1734.43 2500.00 25.7 4.48 1665.05 2500.00
32.5 53 242.0 16.5 3.88 2244.55 2500.00 19.8 4.48 2154.77 2500.00
35.5 47.8 346.0 11.6 3.50 2500.00 2500.00 13.9 4.04 2500.00 2500.00
35.5 47.8 437.0 9.2 3.50 2500.00 2500.00 11.0 4.04 2500.00 2500.00
35.5 47.8 565.0 7.1 3.50 2500.00 2500.00 8.5 4.04 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
