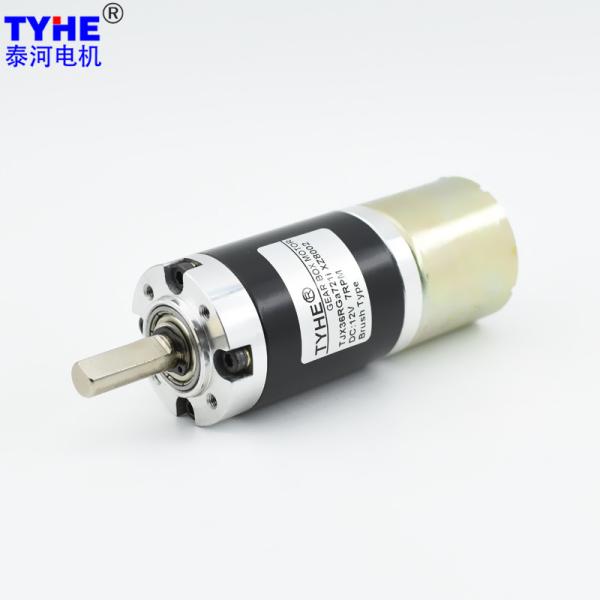

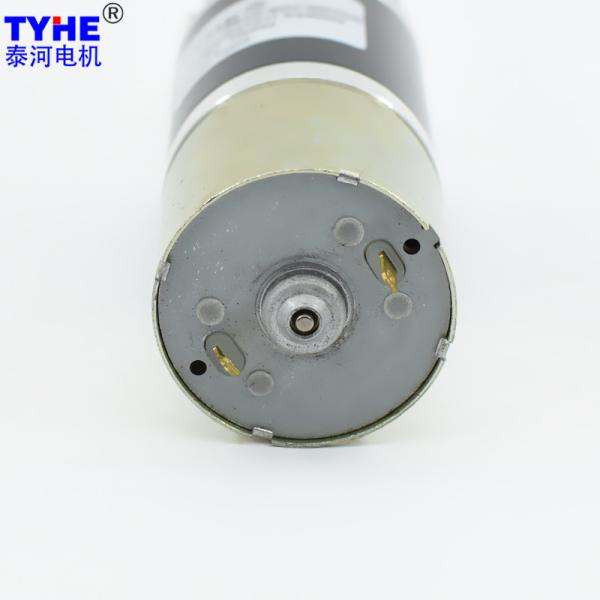

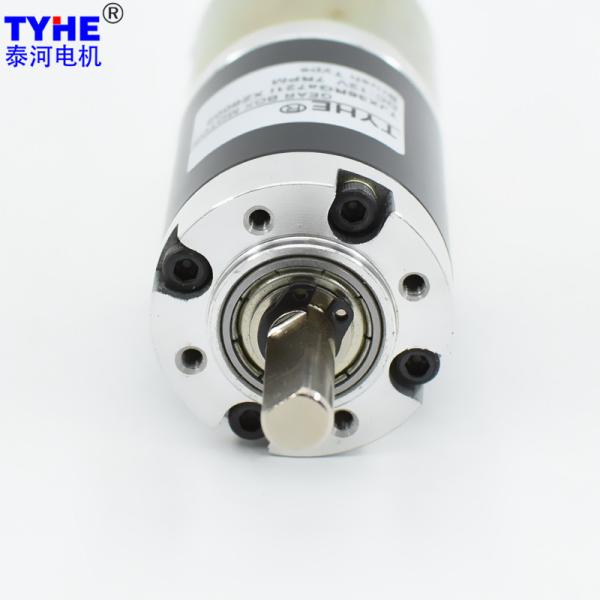

Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001
Specifications
Brand Name :
TYHE
Model Number :
TJX36RGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
OD36mm diameter
Voltage :
5v 12v 24v or customized
Speed :
1-2000rpm Customized
Torque :
8N.m
Gear material :
Steel gears
Commutation :
brushes
Type :
DC Planetary Gear Motor
Keywords :
Manufacture Electric Reverse Small 2amp 12v 6v 24v 10kgcm 40kgcm 60kgcm Torque Planetari Dc Planetary Gear Motor
Description

Products Description

Manufacture Electric Reverse Small 2amp 12v 6v 24v 10kgcm 40kgcm 60kgcm Torque Planetari Dc Planetary Gear Motor

2D drawing

Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001


Reversible 2amp 12V DC Gear Motor 40kgcm 60kgcm Torque ISO9001

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
RS530 24 7500 72 6000 0.37 9.25 5.81 64.63 27.75 3.20
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-3500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 756.8 1.40 17.65 52.95 1081.1 3.35 29.64 88.91
28.2 90 5.2 538.5 1.40 24.80 74.41 769.2 3.35 41.65 124.96
37 81 13.7 204.4 1.26 58.81 176.44 292.0 3.02 98.76 296.29
37 81 19.2 145.8 1.26 82.43 247.28 208.3 3.02 138.41 415.24
37 81 26.9 104.1 1.26 115.48 346.45 148.7 3.02 193.92 581.77
37 81 35.0 80.0 1.26 150.26 450.77 114.3 3.02 252.32 756.95
45.8 73 51.0 54.9 1.13 197.32 591.96 78.4 2.72 331.35 994.04
45.8 73 71.0 39.4 1.13 274.70 824.10 56.3 2.72 461.29 1383.86
45.8 73 100.0 28.0 1.13 386.90 1160.70 40.0 2.72 649.70 1949.10
45.8 73 139.0 20.1 1.13 537.79 1613.37 28.8 2.72 903.08 2709.25
54.7 65.6 189.0 14.8 1.02 657.12 1971.35 21.2 2.45 1103.46 3310.37
54.7 65.6 264.0 10.6 1.02 917.88 2753.63 15.2 2.45 1541.34 4624.01
54.7 65.6 369.0 7.6 1.02 1282.94 3848.82 10.8 2.45 2154.37 6463.11
54.7 65.6 514.0 5.4 1.02 1787.08 5361.23 7.8 2.45 3000.94 9002.81
54.7 65.6 721.0 3.9 1.02 2506.77 7520.32 5.5 2.45 4209.49 10000.00
64 59 699.0 4.0 0.92 2185.77 6557.32 5.7 2.20 3670.45 10000.00
64 59 977.0 2.9 0.92 3055.08 9165.24 4.1 2.20 5130.23 10000.00
64 59 1367.0 2.0 0.92 4274.61 10000.00 2.9 2.20 7178.12 10000.00
64 59 1911.0 1.5 0.92 5975.70 10000.00 2.1 2.20 10000.00 10000.00
64 59 2672.0 1.0 0.92 8355.34 10000.00 1.5 2.20 10000.00 10000.00
64 59 3736.0 0.7 0.92 10000.00 10000.00 1.1 2.20 10000.00 10000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1081.1 3.44 30.37 91.11 1621.6 5.23 30.80 92.41
28.2 90 5.2 769.2 3.44 42.68 128.04 1153.8 5.23 43.29 129.87
37 81 13.7 292.0 3.09 101.20 303.61 438.0 4.71 102.65 307.94
37 81 19.2 208.3 3.09 141.83 425.50 312.5 4.71 143.86 431.57
37 81 26.9 148.7 3.09 198.72 596.15 223.0 4.71 201.55 604.64
37 81 35.0 114.3 3.09 258.55 775.66 171.4 4.71 262.24 786.71
45.8 73 51.0 78.4 2.79 339.54 1018.61 117.6 4.24 344.38 1033.13
45.8 73 71.0 56.3 2.79 472.69 1418.07 84.5 4.24 479.43 1438.28
45.8 73 100.0 40.0 2.79 665.76 1997.28 60.0 4.24 675.25 2025.75
45.8 73 139.0 28.8 2.79 925.41 2776.22 43.2 4.24 938.60 2815.79
54.7 65.6 189.0 21.2 2.51 1130.73 3392.20 31.7 3.81 1146.85 3440.56
54.7 65.6 264.0 15.2 2.51 1579.44 4738.31 22.7 3.81 1601.95 4805.86
54.7 65.6 369.0 10.8 2.51 2207.62 6622.87 16.3 3.81 2239.09 6717.28
54.7 65.6 514.0 7.8 2.51 3075.12 9225.35 11.7 3.81 3118.95 9356.86
54.7 65.6 721.0 5.5 2.51 4313.54 10000.00 8.3 3.81 4375.03 10000.00
64 59 699.0 5.7 2.25 3761.18 10000.00 8.6 3.43 3814.79 10000.00
64 59 977.0 4.1 2.25 5257.04 10000.00 6.1 3.43 5331.98 10000.00
64 59 1367.0 2.9 2.25 7355.55 10000.00 4.4 3.43 7460.40 10000.00
64 59 1911.0 2.1 2.25 10000.00 10000.00 3.1 3.43 10000.00 10000.00
64 59 2672.0 1.5 2.25 10000.00 10000.00 2.2 3.43 10000.00 10000.00
64 59 3736.0 1.1 2.25 10000.00 10000.00 1.6 3.43 10000.00 10000.00

Please let us know your requirements and we will provide you with transmission solutions.
