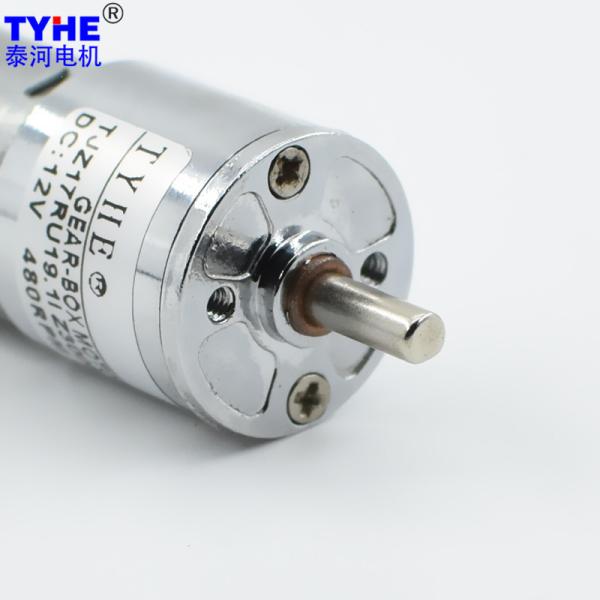

Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt
Specifications
Brand Name :
TYHE
Model Number :
TJZ17RU
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
OD17mm
Voltage :
1.5v 3v 6v 12v or customized
Speed :
15-1500rpm
Torque :
0.5N.m
Gear material :
Powder metallurgy
Commutation :
Brushed
Type :
Small Gear Motor
Keywords :
High Precision D17mm 3v 3.5volt 30rpm 12v High Speed Mini Dc Micro Gear Motor For Sex Toy Machines
Description

Products Description

High Precision D17mm 3v 3.5volt 30rpm 12v High Speed Mini Dc Micro Gear Motor For Sex Toy Machines

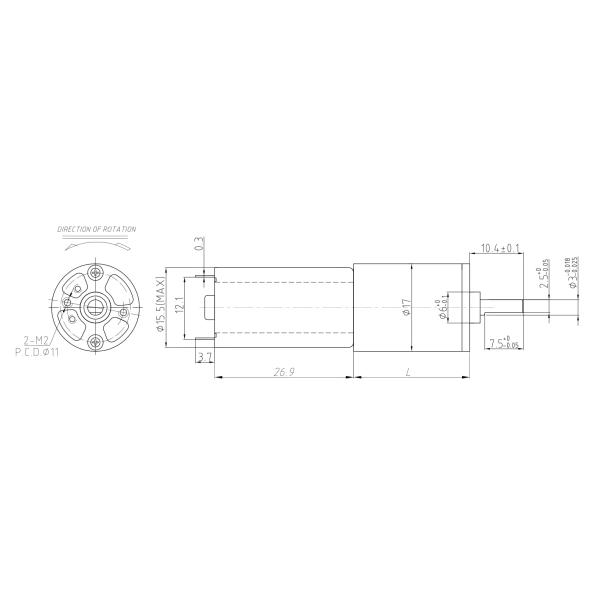

2D drawing

Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt


Mini D17mm 12V DC Metal Gear Motor 30 Rpm 3 Volt 3.5 Volt

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
FF050 6 7500 65 6000 0.12 0.70 0.44 61.08 2.10 0.71
FF050 3 5000 50 4000 0.08 0.37 0.15 64.57 1.11 0.38
FF050 24 15000 20 12000 0.08 0.95 1.19 63.77 2.85 0.53
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 6V-7500RPM Input 3V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 1363.6 0.36 2.49 7.48 909.1 0.13 1.32 3.96
16.5 73 9.1 659.3 0.32 4.65 13.95 439.6 0.11 2.46 7.37
16.5 65.5 19.1 314.1 0.29 8.76 26.27 209.4 0.10 4.63 13.89
16.5 59 40.0 150.0 0.26 16.52 49.56 100.0 0.09 8.73 26.20
18.5 53 83.5 71.9 0.23 30.98 92.94 47.9 0.08 16.37 49.12
20.5 47.8 175.0 34.3 0.21 58.56 175.67 22.9 0.07 30.95 92.85
22.5 43 365.0 16.4 0.19 109.87 329.60 11.0 0.07 58.07 174.21
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 24V-15000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 2727.3 0.97 3.39 10.16
16.5 73 9.1 1318.7 0.87 6.31 18.93
16.5 65.5 19.1 628.3 0.78 11.88 35.65
16.5 59 40.0 300.0 0.70 22.42 67.26
18.5 53 83.5 143.7 0.63 42.04 126.13
20.5 47.8 175.0 68.6 0.57 79.47 238.40
22.5 43 365.0 32.9 0.51 149.10 447.31

Please let us know your requirements and we will provide you with transmission solutions.
