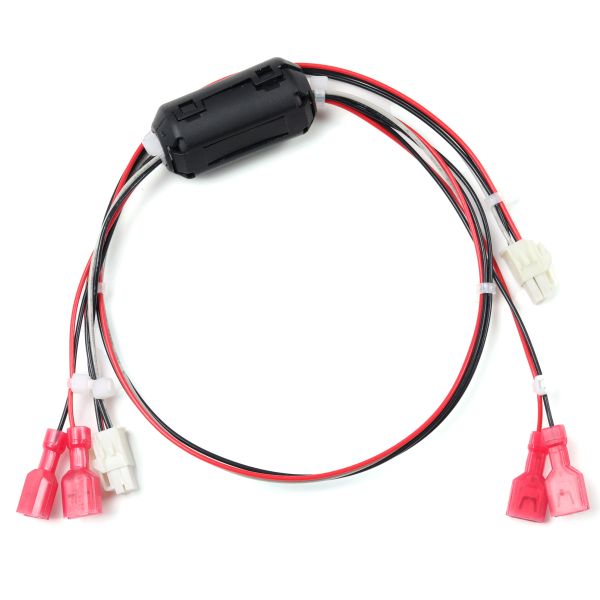

4Pin Nano-Fit to 6.3mm Female Blade Terminal Power Wiring
Harness with Ferrite Core



Power Wiring Harness Overview:

This power wiring harness is designed for internal power distribution and control circuits in
electronic equipment. The harness connects a 4-pin Nano-Fit connector to multiple
6.3×0.8mm fully insulated female blade terminals, providing a reliable connection between
control boards and power components.

The harness uses 22AWG copper wires for stable power transmission and is equipped with
a ferrite snap-on core to reduce electromagnetic interference in power circuits.

This wiring harness is commonly used in power control modules, industrial electronics, and
equipment requiring stable low-voltage power distribution.

OEM and ODM wiring harness production based on customer drawings and specifications
is supported.

Power Wiring Harness Construction:

Connector

• 4-pin 2-row female connector
• Nano-Fit type housing

Terminal type

• Fully insulated female blade terminal
• Size: 6.3 × 0.8 mm

Cable

• Copper wire
• Wire gauge: 22 AWG

Wire colors

• Red
• Black
• Grey

Cable protection

• Snap-on ferrite core for EMI suppression
• Cable ties for cable management

All structural details follow the approved engineering drawings.

Power Wiring Harness Electrical Data:

Power Wiring Harness Applications:

This power wiring harness is suitable for internal power distribution in electronic systems
such as:

• Power factor correction (PFC) modules
• Industrial power supplies
• Control electronics
• Automation equipment
• Electrical control panels

The ferrite core helps reduce electromagnetic interference in power transmission circuits.

Power Wiring Harness Customization:

This power wiring harness can be customized based on application requirements, including:

• Cable length
• Wire gauge
• Wire color configuration
• Terminal types
• Connector pin configuration
• Ferrite core specification

OEM and ODM wiring harness manufacturing services are supported.

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
