Worm Shaft Worm Gear 15mm Permanent Magnet 5V DC Stepper Motor

Product Feature:

This is a 15mm diameter permanent magnet stepper motor attached with a worm shaft.

The worm shaft is connected with a worm gear, and the output gear is a 0.5 Modulus Pinion gear/spurs gear.

Customer can design another 0.5 Modulus gear to match with output gear, in order to make it work properly.

Motor’s coil resistance and connector type is customizable.

Current connector type is a female connector, 5AW(pitch 1.25mm)

It can be customized with other connector type if customers want.

Design drawing (Unit:mm)

Motor parameters:

Worm Gear parameters:

Pinion Gear parameters:

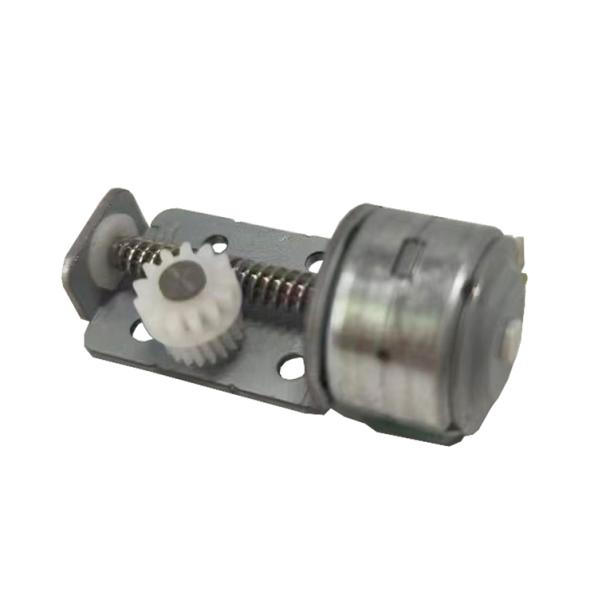

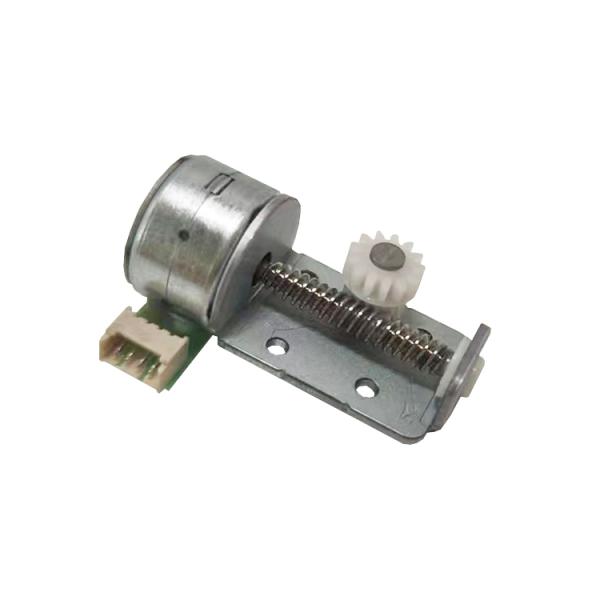

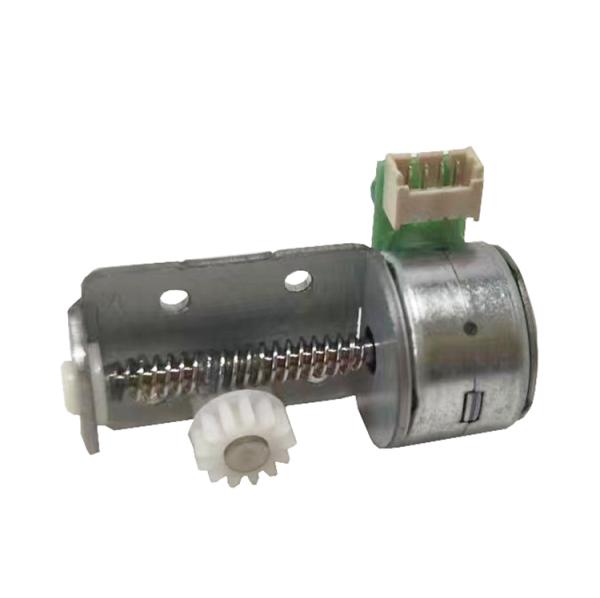

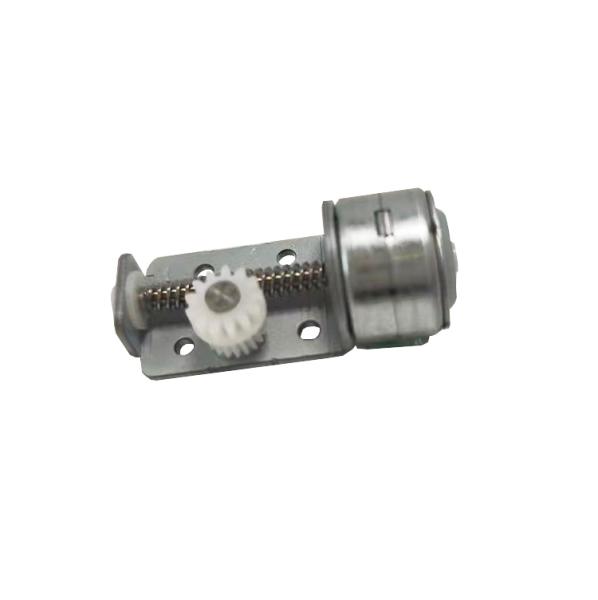

Product detail photos:

Packaging information:

Packed in corrugated box (mass production)

Company introduction:

Changzhou Vic-Tech Motor Technology Co., Ltd. is a focus on Motor Research and development, motor applications to solve the overall program, as well as motor products processing and production of one-stop professional research and production institutions.
The company is located in the beautiful scenery of the China micro motor town - Changzhou City, Jiangsu Province, No. 28, Shunyuan Road, Xinbei Dist., Changzhou, Jiangsu, China (Mainland). Beautiful scenery, convenient transportation. From the high-speed road 1 kilometers, high-speed rail from the Changzhou North Station 2 kilometers, 15 kilometers away from Changzhou airport. With the international metropolis of Shanghai and Nanjing are almost equidistant (about 100 km) across, convenient logistics, timely information, provide objective conditions for timely and quality customer service guarantee.
The company has dozens of R & D experience of senior electronic engineers, mechanical engineers, structural engineers, motor design engineers and other experts R & D team. Strong ability to design new products, support solution design, provide complete design solutions (including mechanical structure, drive control, motor parameters, etc.). At the same time, the company in Changzhou, Dongguan, Shenzhen has four production of hybrid stepping motor, permanent magnet stepper motor, permanent magnet stepper motor and DC motor reducer box and supporting the production and processing factories, and have passed the ISO9000:2001 quality system certification, to provide a strong guarantee for the development of the final conversion results product production.
The company has customized many sets of matching scheme which is used in the temperature control of the electric actuator, planetary motor screw machine, gas valve control window with stepper motor, textile machines and medical devices which use miniature linear motor and so on, and customers have been recognized and used.
Companies adhering to the "customer first, forge ahead" business philosophy, adhere to the "continuous improvement, Brave first" approach to provide our clients with quality services. Welcome patrons!
