Specifications
Brand Name :
VIC-TECH
Model Number :
20BY45-143
Certification :
RoHS
Place of Origin :
China
MOQ :
1 Unit
Price :
$3.2-$5/unit
Payment Terms :
MoneyGram, T/T, Western Union, T/T
Supply Ability :
1000000units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Step Angle :
18 degrees
Voltage :
5 V DC
Resistance :
9 Ω±10%
Phase :
2 phases
Type :
Permanent Magnet
Drive mode :
bipolar
Description

20BYJ46 PM stepper motor 5V DC 18 degree step angle 2 phase stepper motor

20mm diameter Pm permanent magnet stepper motor 18 degree step angle 5v voltage
Diameter 20mm, step angle 18 degrees.
This stepper motor has MOLYKOTE G-8007 grease added inside, and can operate normally in a low temperature environment of minus 55℃.
If you have low temperature requirements for the working environment of the motor, you can contact me at any time.

20BYJ46 PM Stepper Motor 5V DC 18 Degree Step Angle 2 Phase Stepper Motor

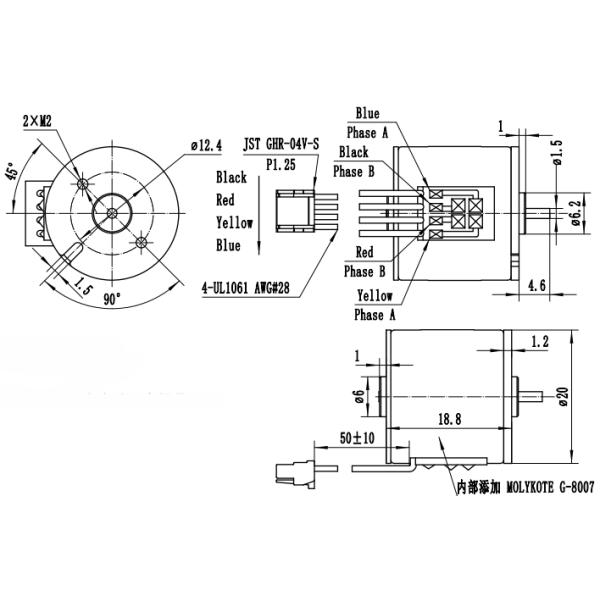

Mechanical Dimension:MM

20BYJ46 PM Stepper Motor 5V DC 18 Degree Step Angle 2 Phase Stepper Motor

Technical Features

The motor input part is shown as a connecting wire, but it can be changed to bare pins, FPC wiring, PCB, etc. according to customer needs

At the same time, we can provide corresponding drive systems to meet customer needs!

Our team has more than 20 years of experience in micro motor design, research and development, and production, and can develop and design products according to customer special needs!

Customer needs are the direction of our efforts, please feel free to contact us!

Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

  • Smart home appliances

Specifications

Product Name 20mm permanent magnet stepper motor
Model 20BY45-143
Rated Voltage 5 V
Coil Resistance 9 Ω ± 10%
No. Of phase 2 Phases
Excitation mode bipolar
Step Angle 18 degree
Max. Starting Frequency 400 PPS min. (AT 5 V DC)
Max. Slewing Frequency 500 PPS min. (AT 5 V DC)
Weight ABOUT 20 g


Competitive Advantage

  • Can operate normally in an environment of minus 55℃
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

20BYJ46 PM Stepper Motor 5V DC 18 Degree Step Angle 2 Phase Stepper Motor

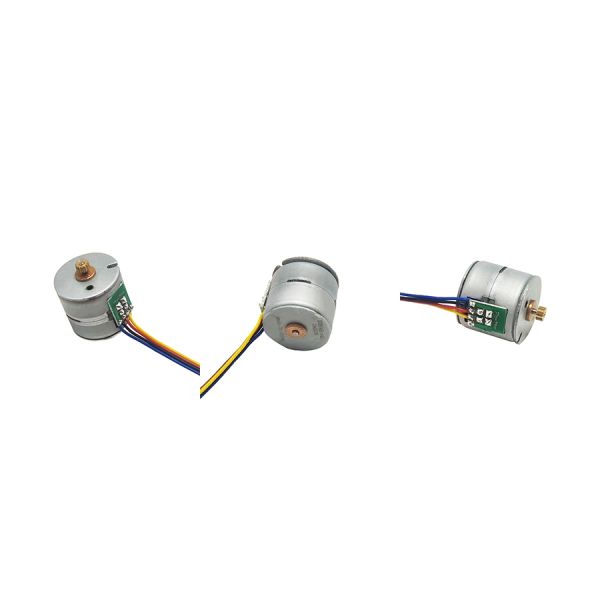

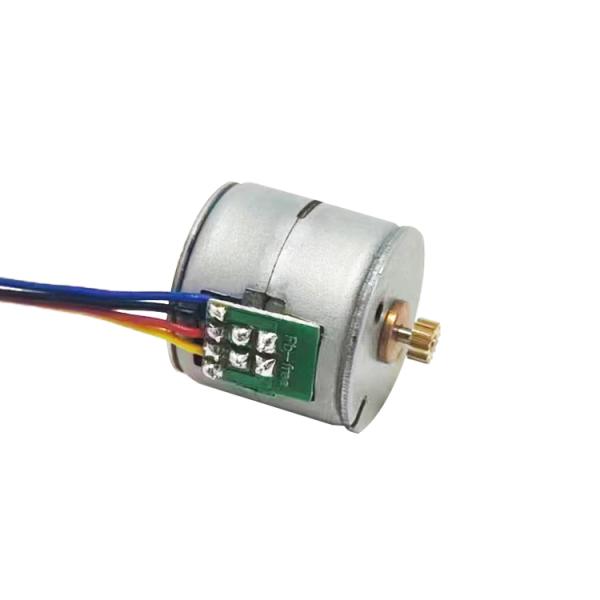

Product Detail Presentation

20BYJ46 PM Stepper Motor 5V DC 18 Degree Step Angle 2 Phase Stepper Motor
